Laser Lines - RED SPECTROGRAPH

All RSG good data. The extra peak was removed if no in the main laser peak and 2 laser data sets with sine waves removed.

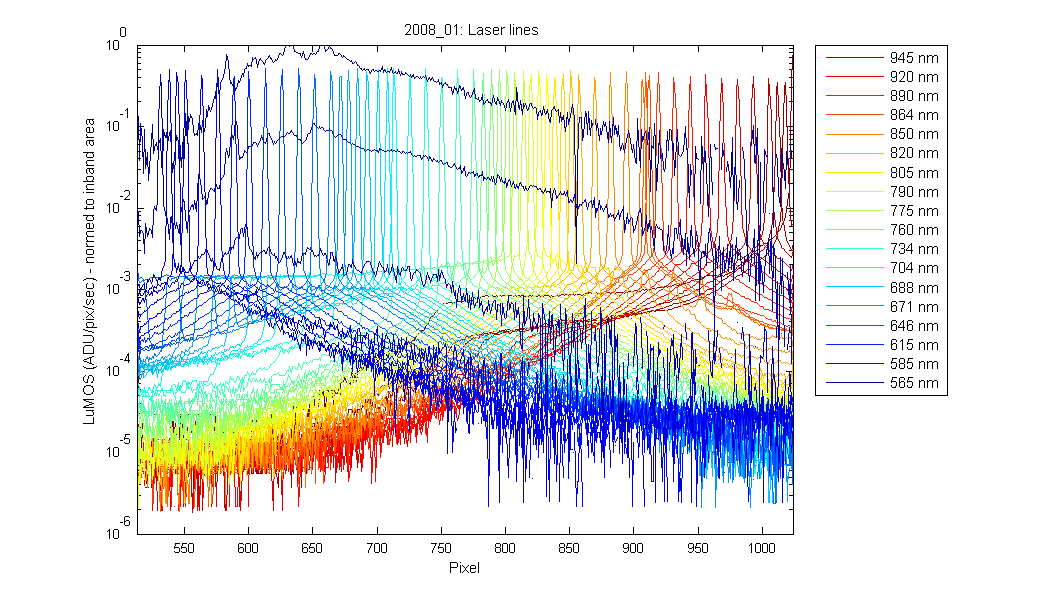

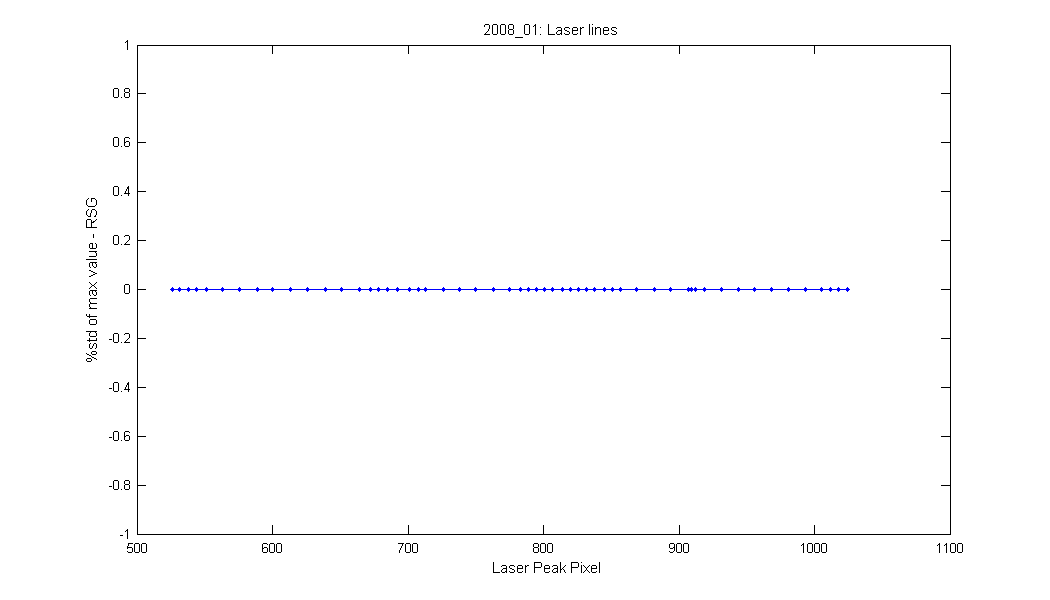

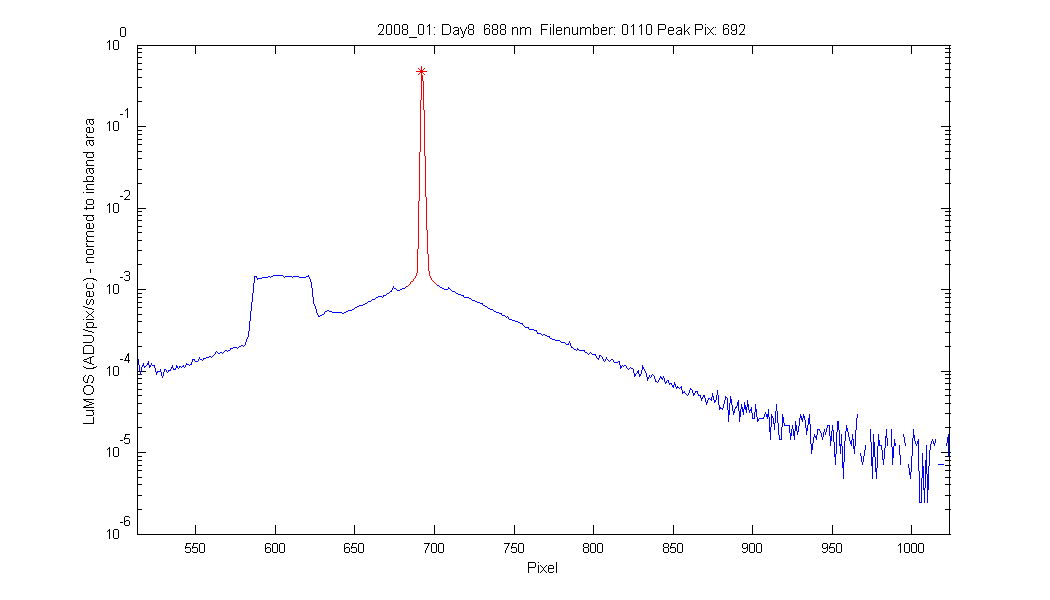

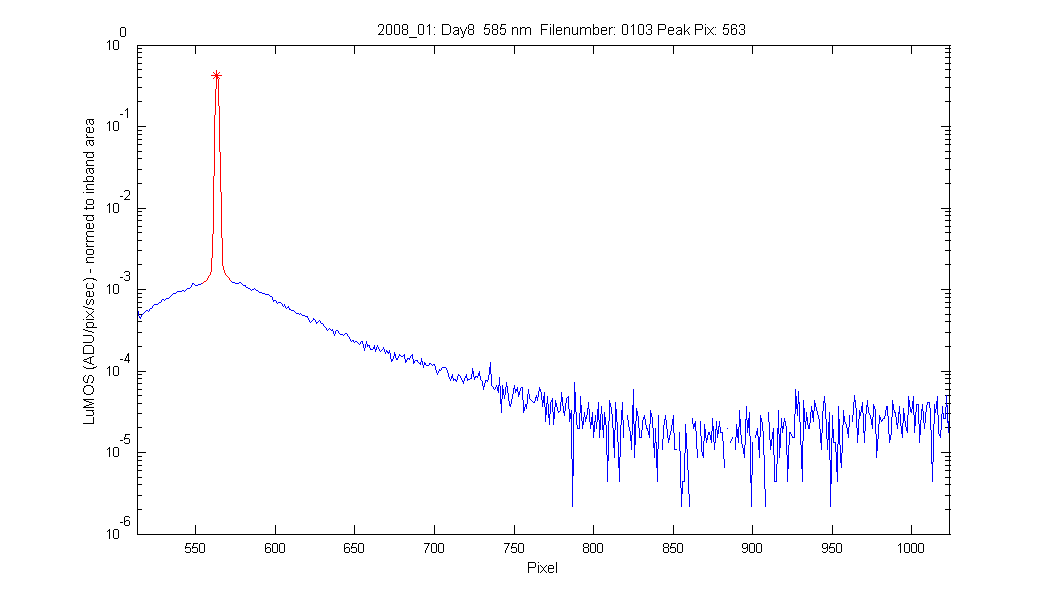

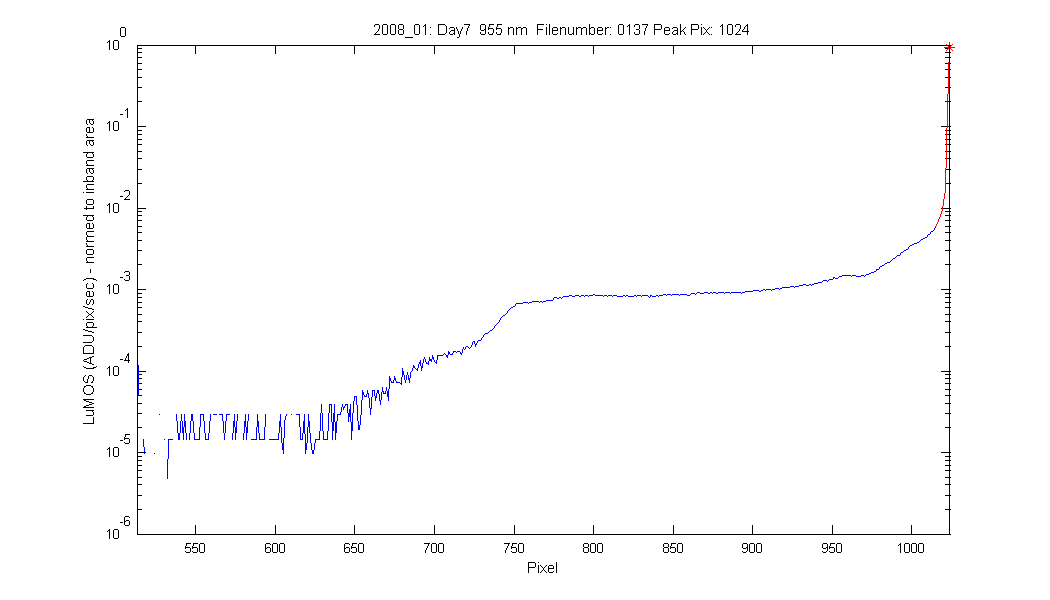

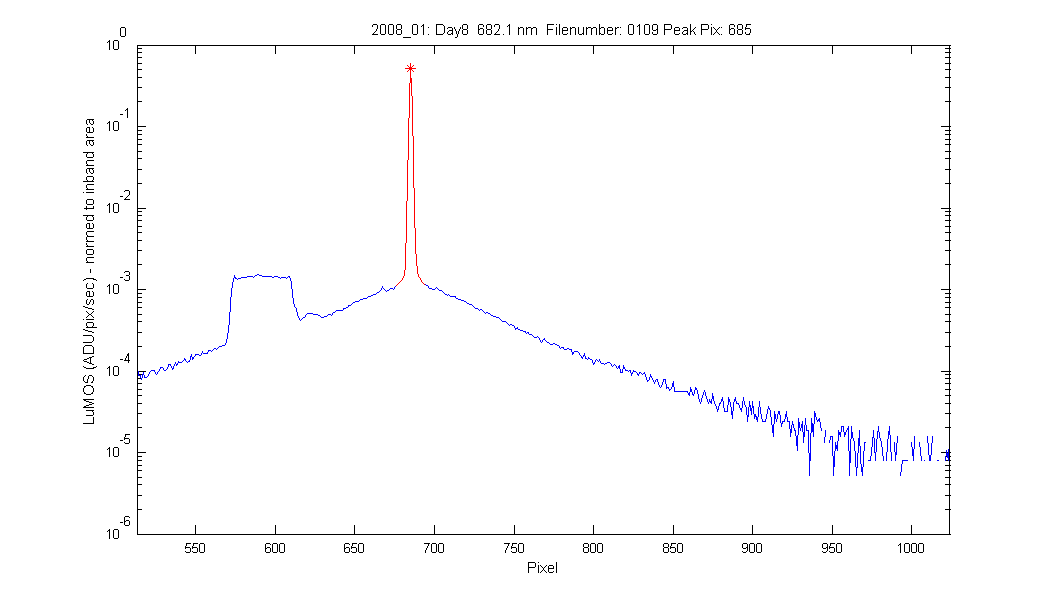

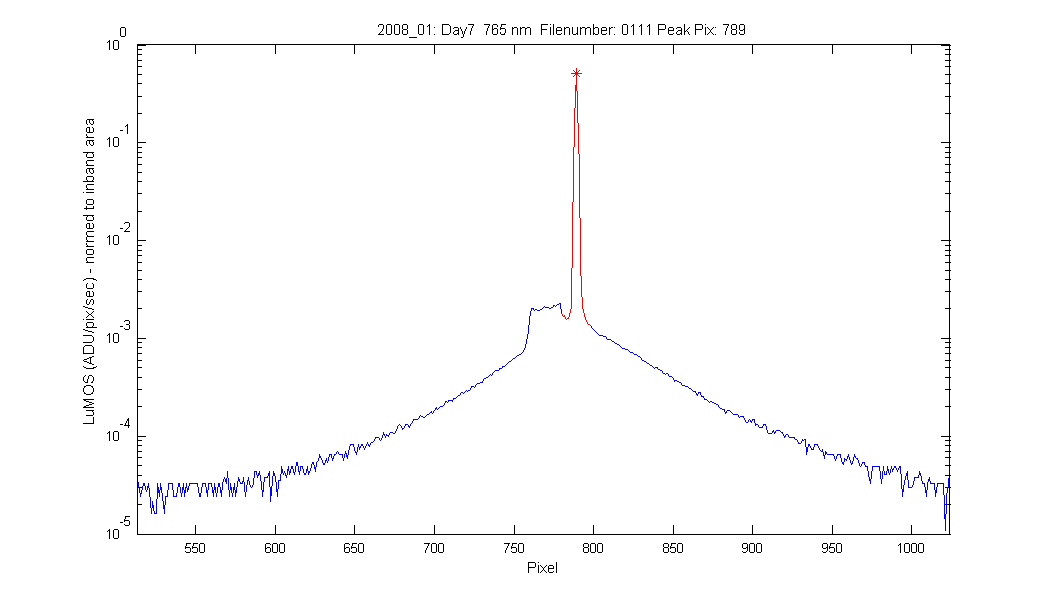

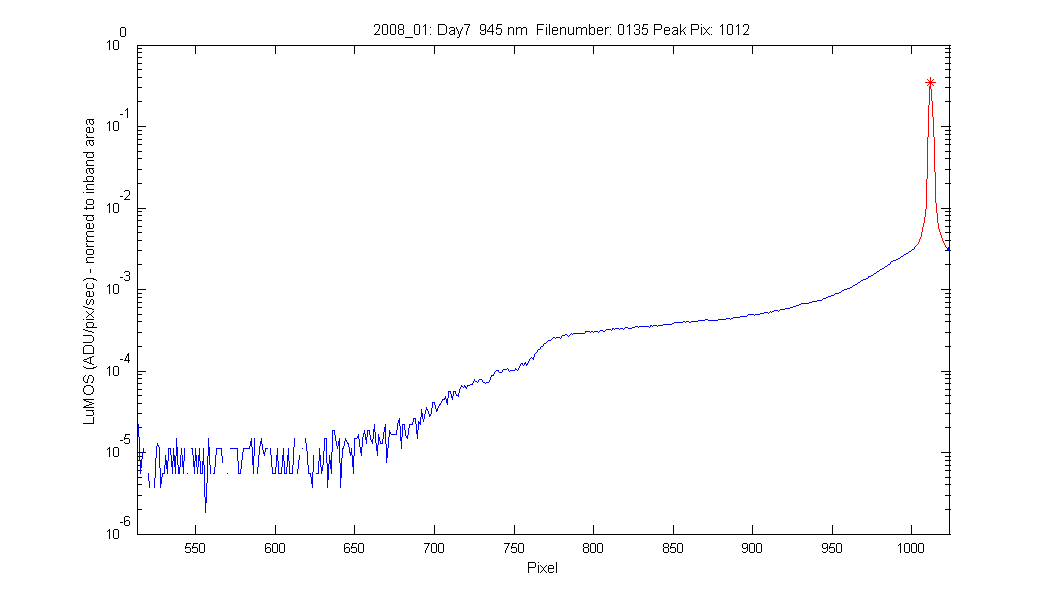

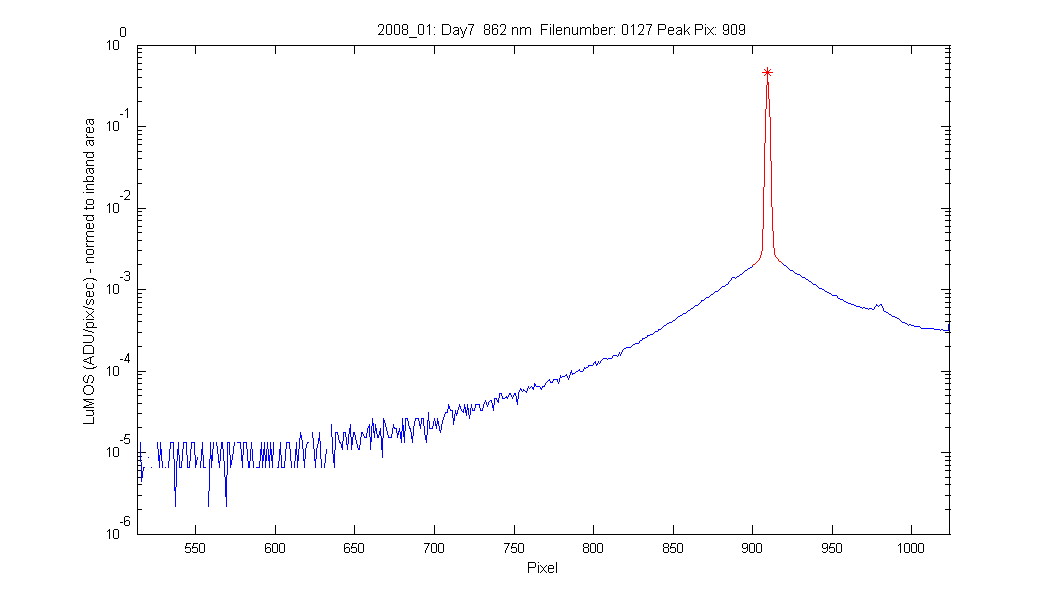

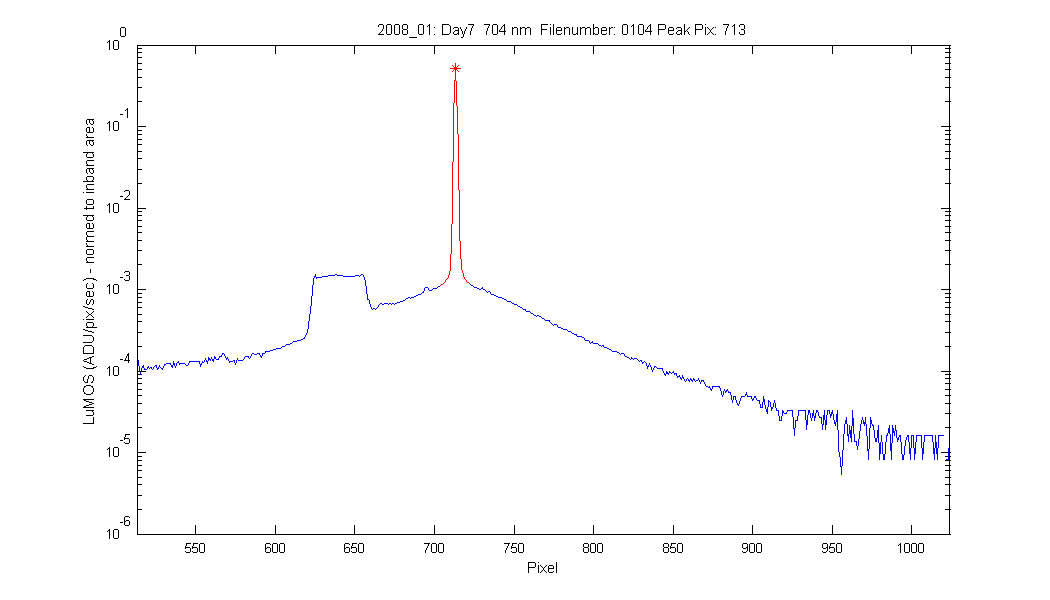

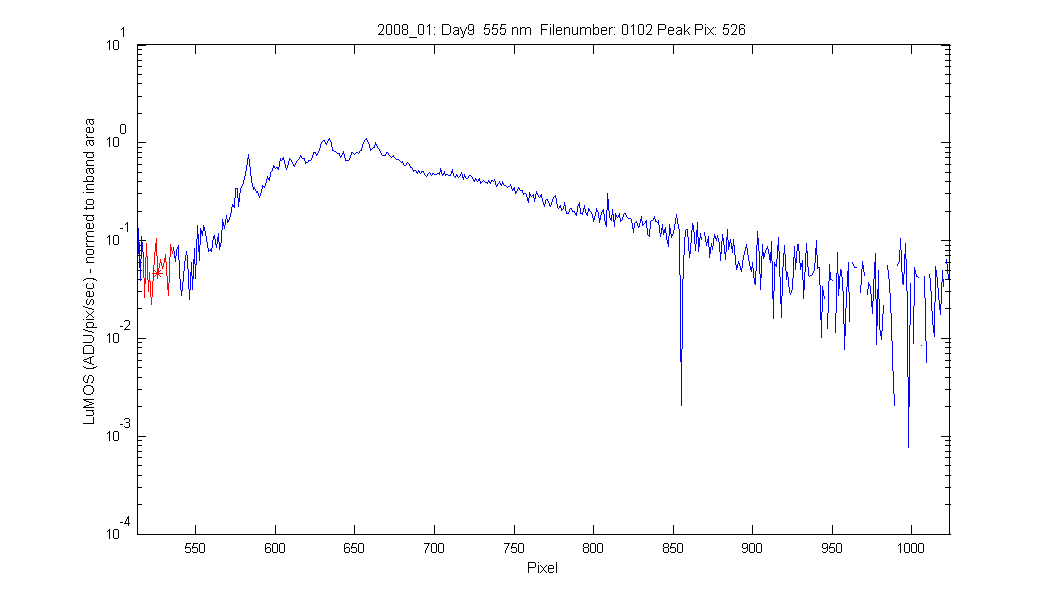

Figure 1

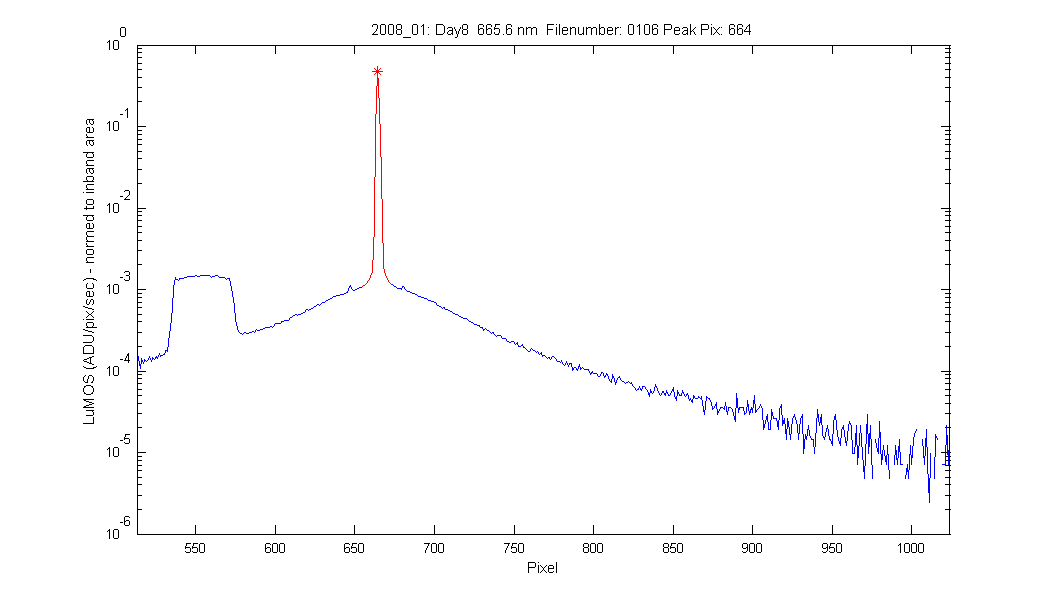

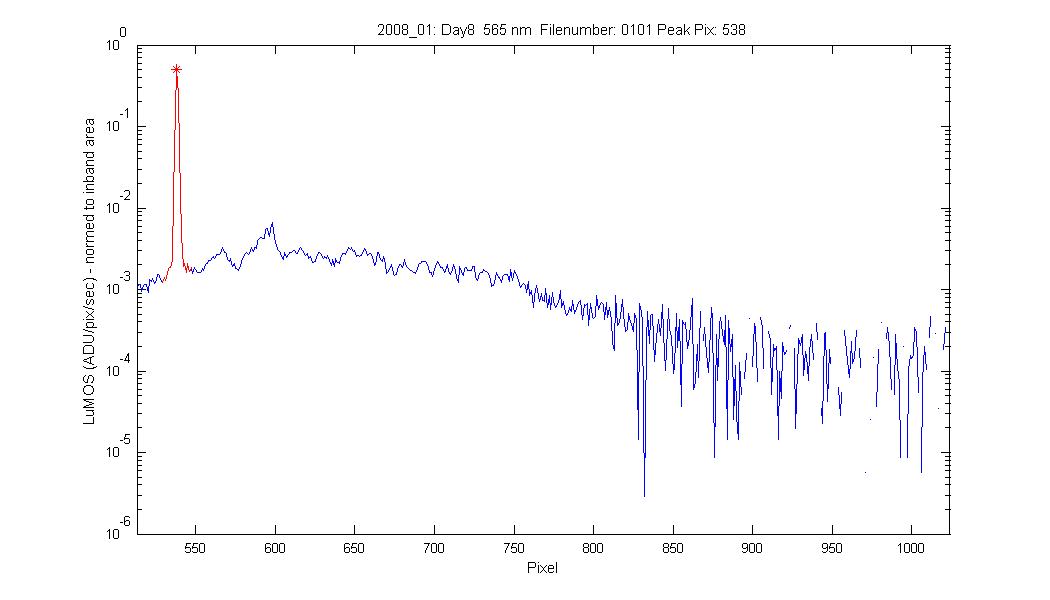

Figure 2

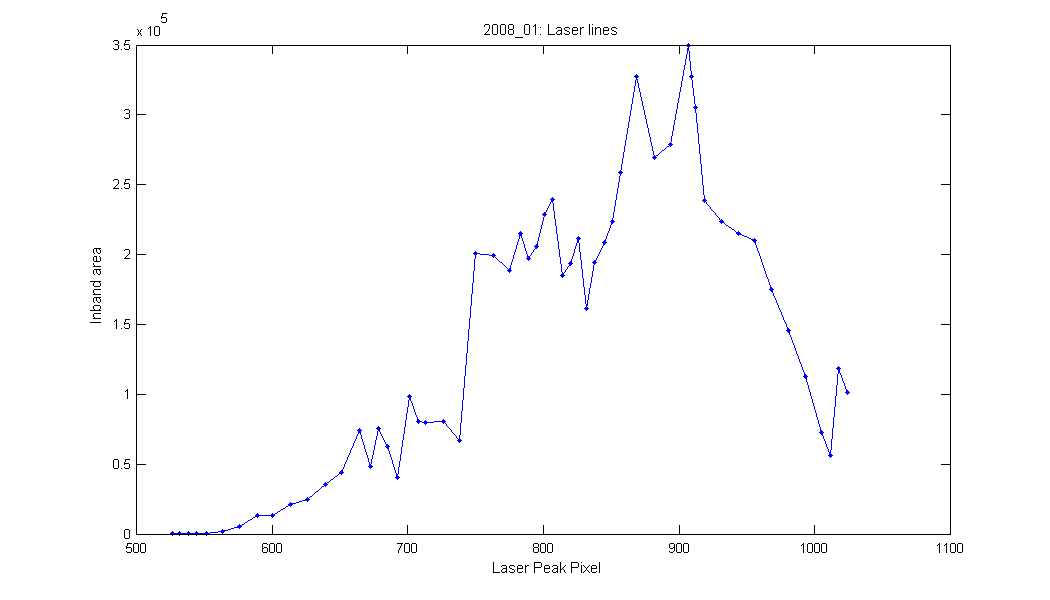

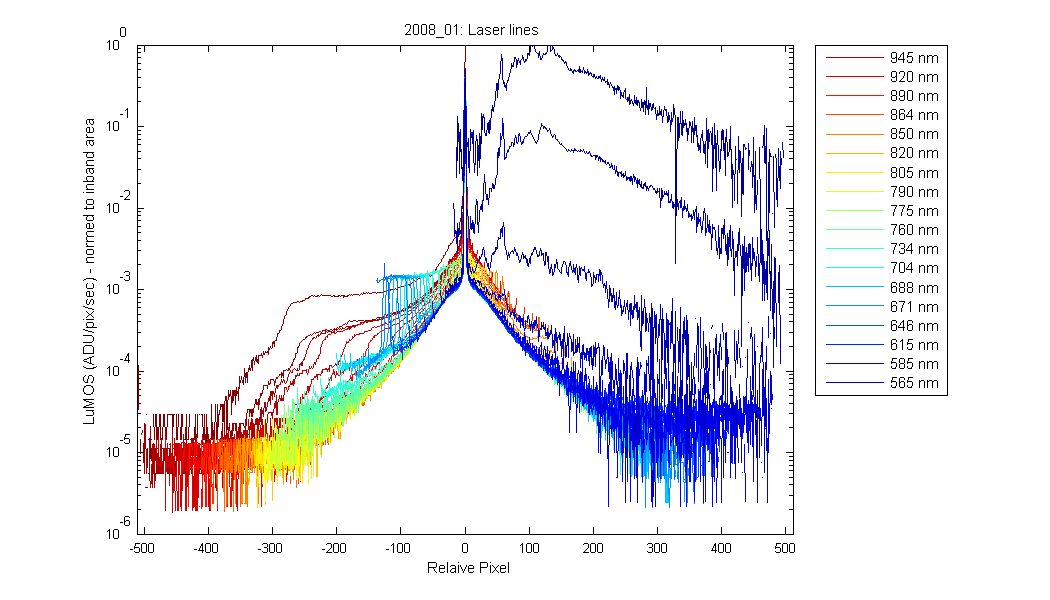

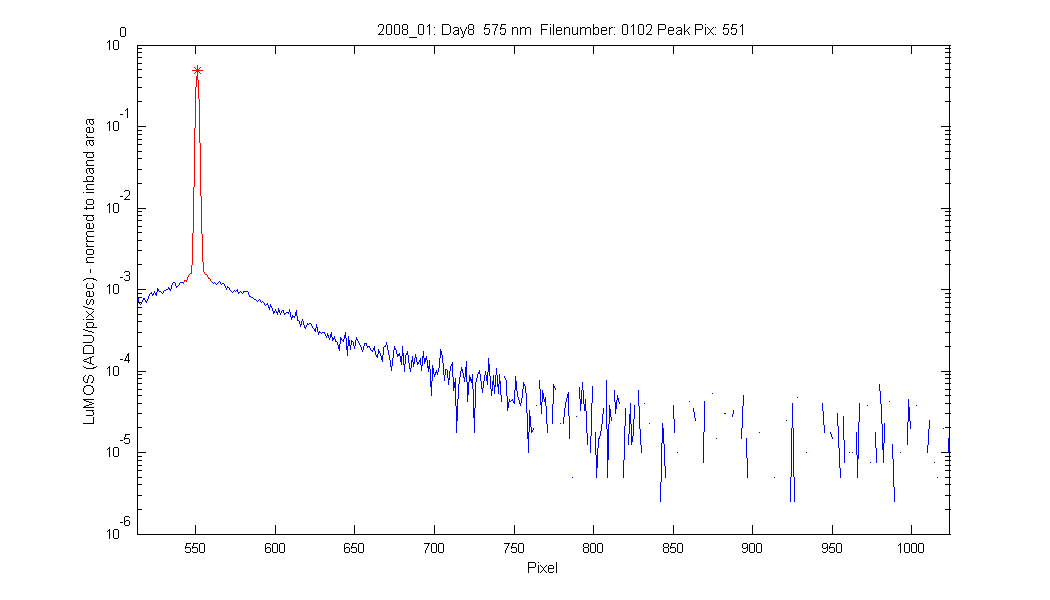

Figure 3

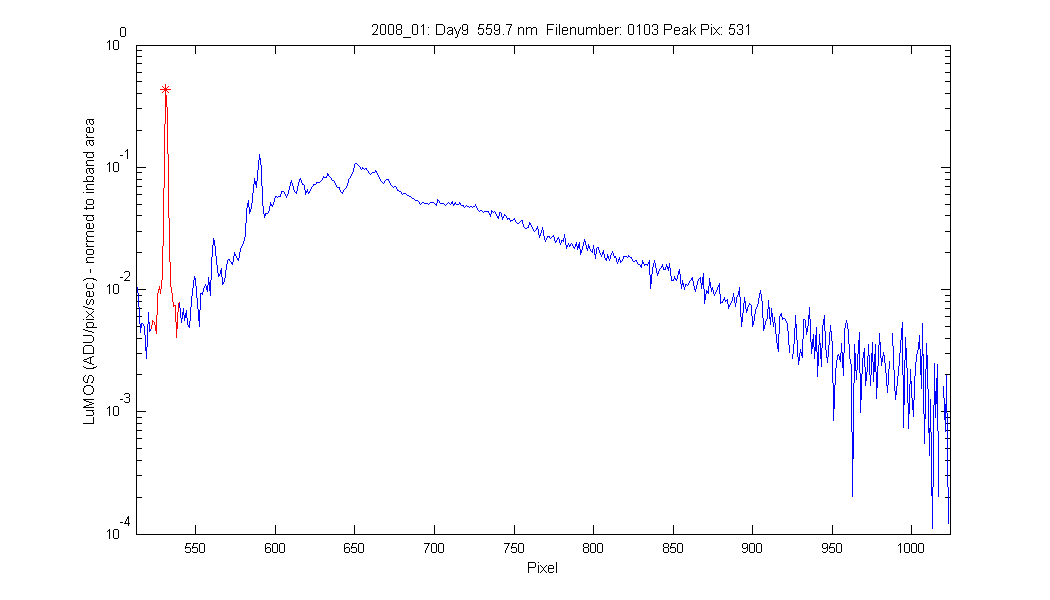

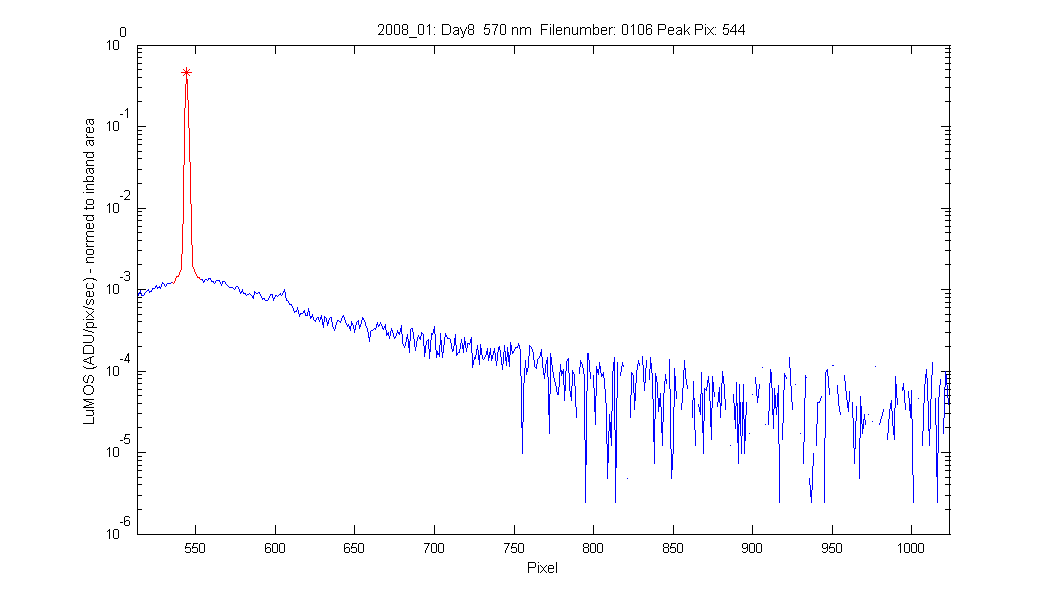

Figure 4

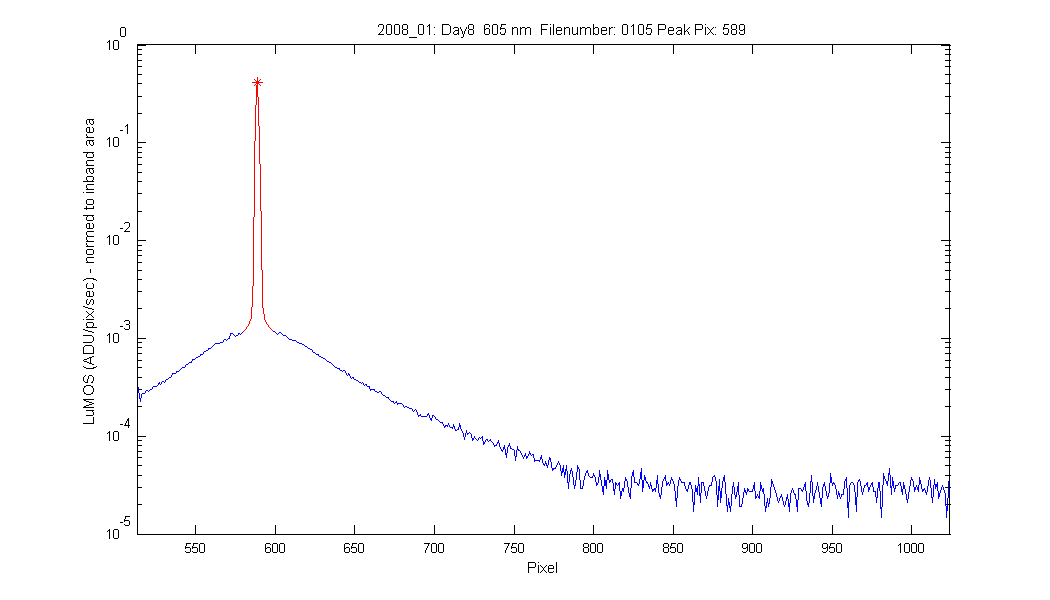

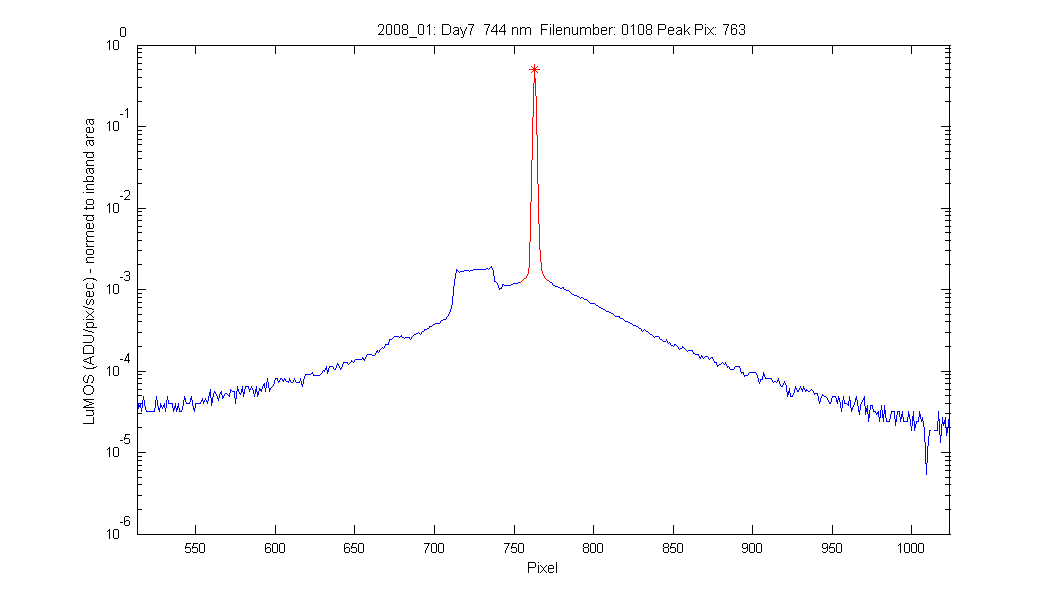

Figure 5

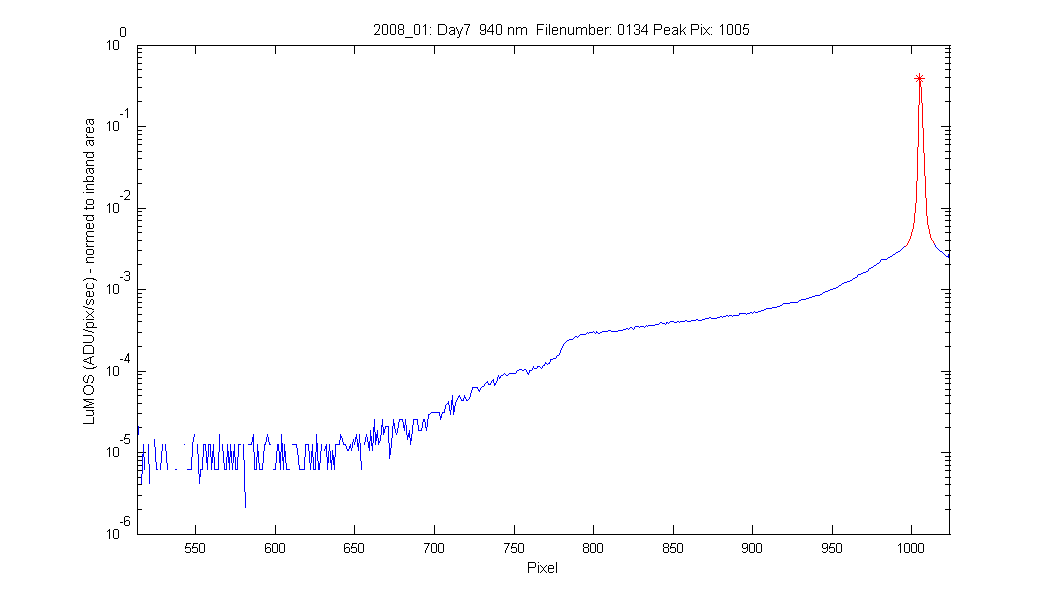

Figure 6

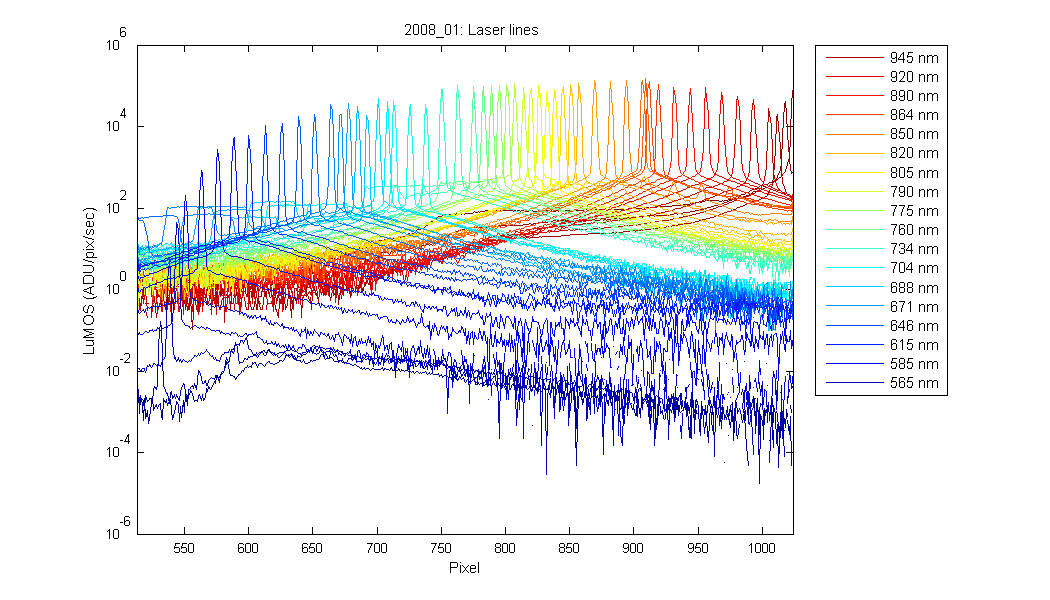

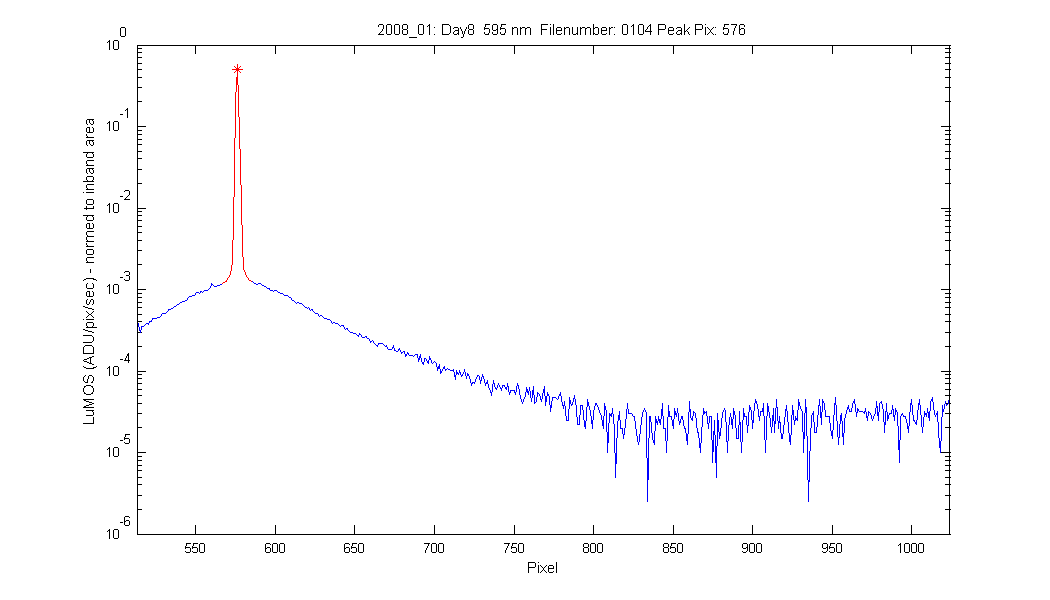

Figure 7

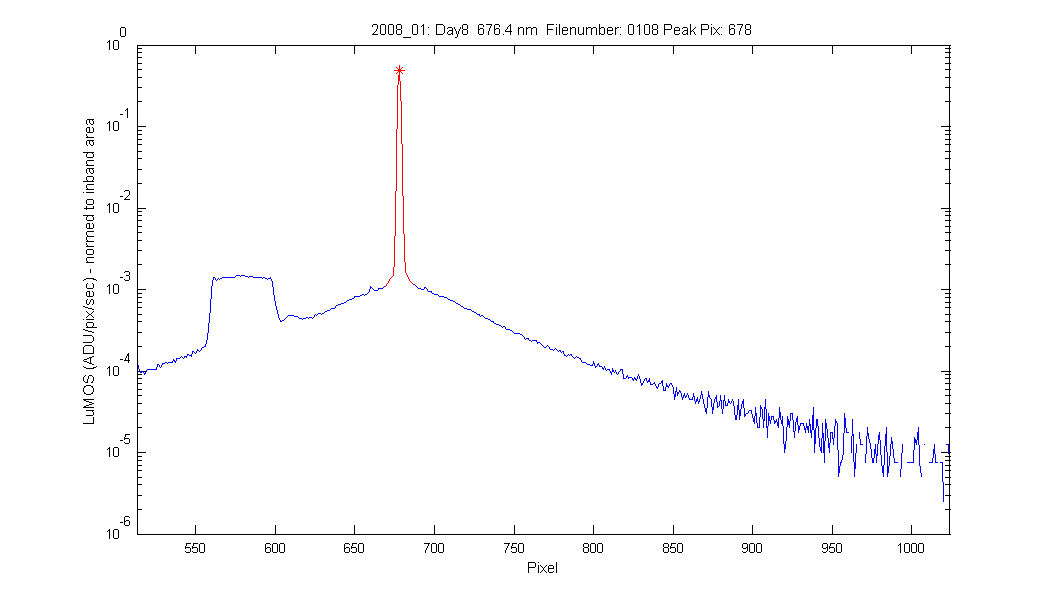

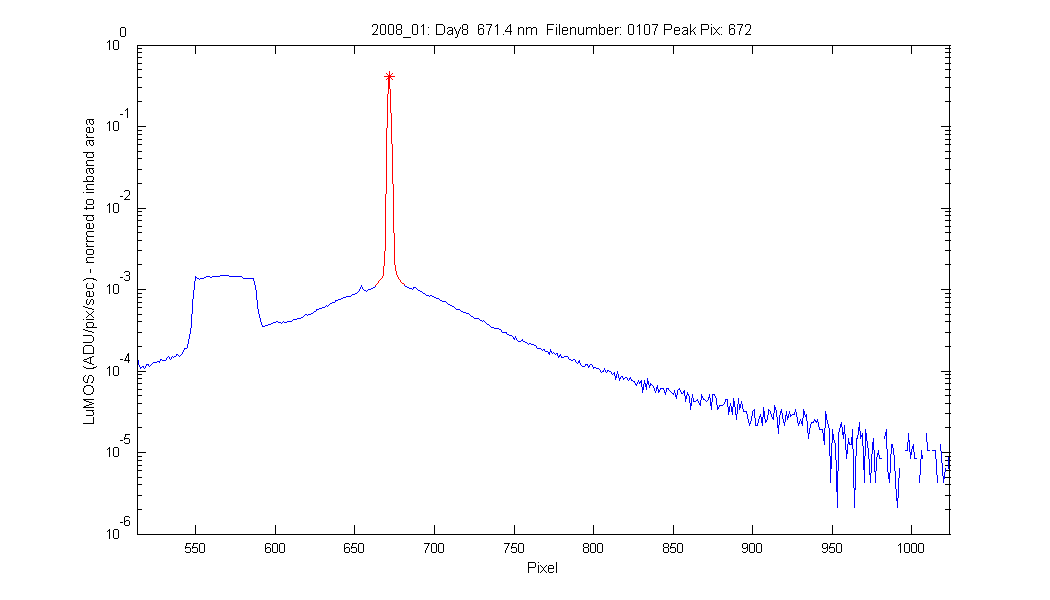

Figure 8

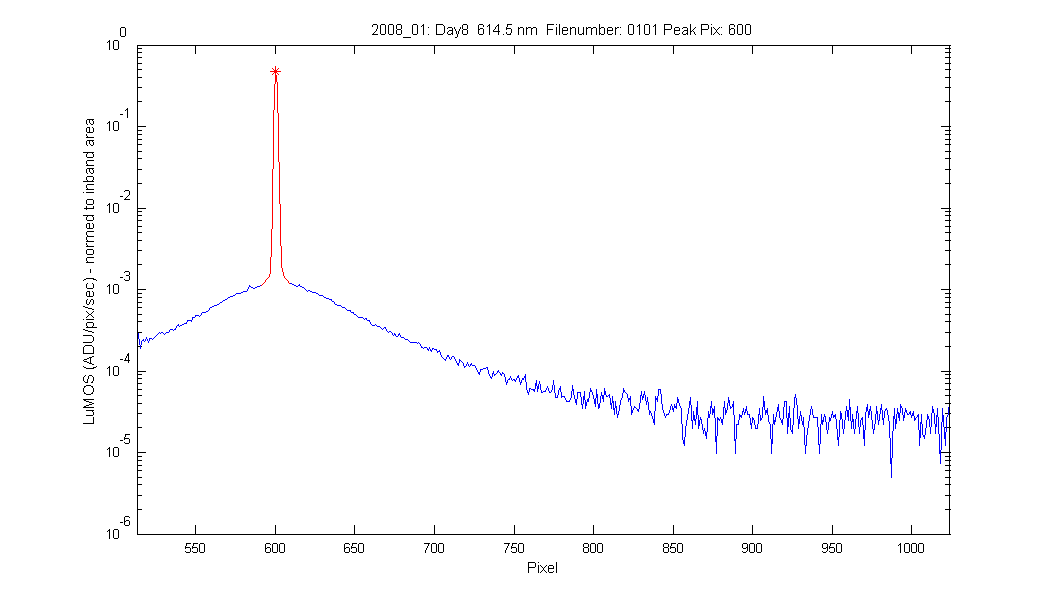

Figure 9

Figure 10

Figure 11

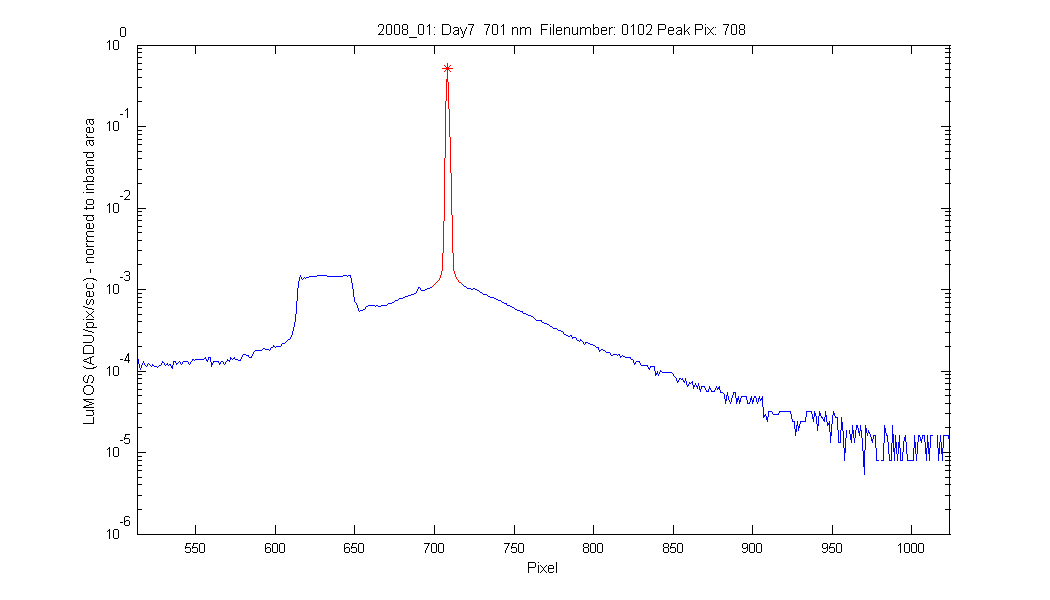

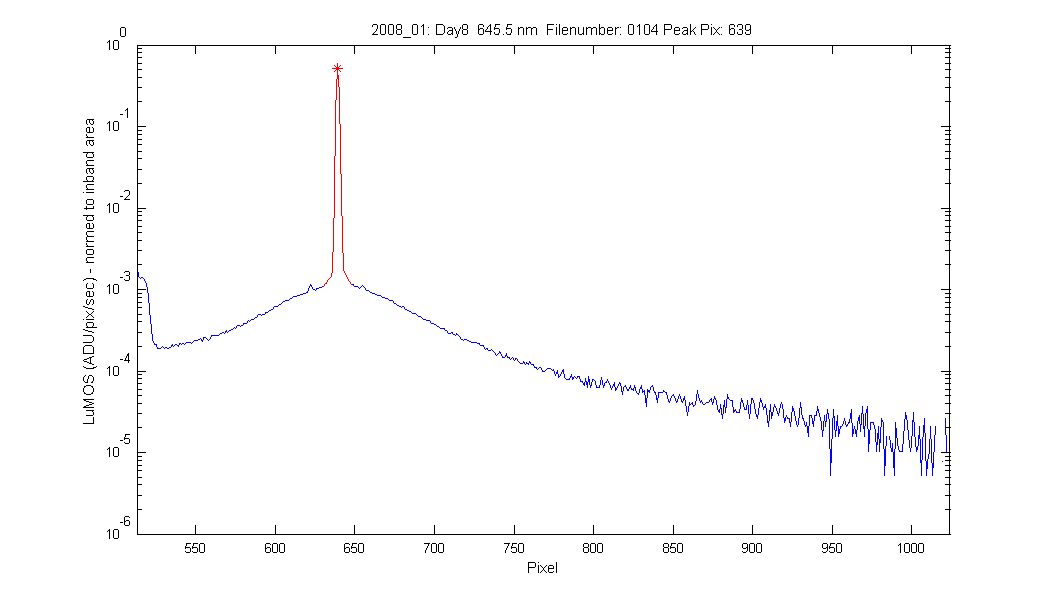

Figure 12

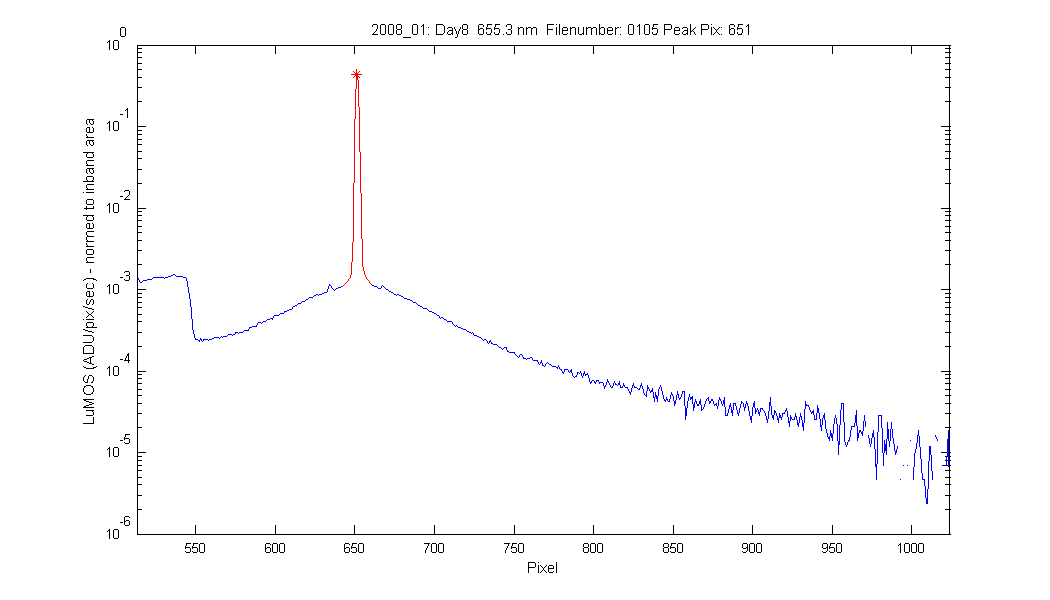

Figure 13

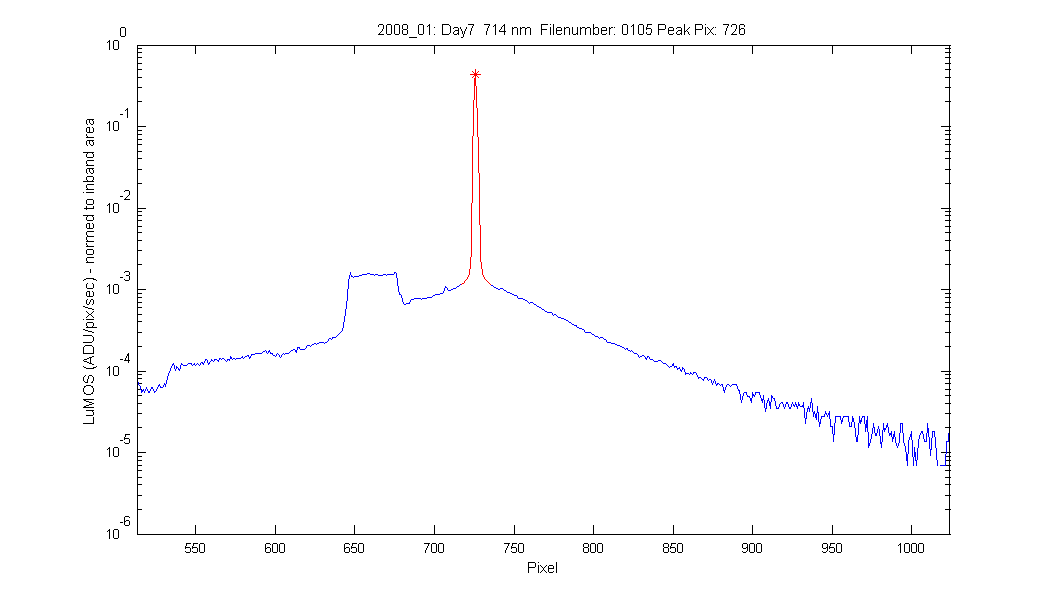

Figure 14

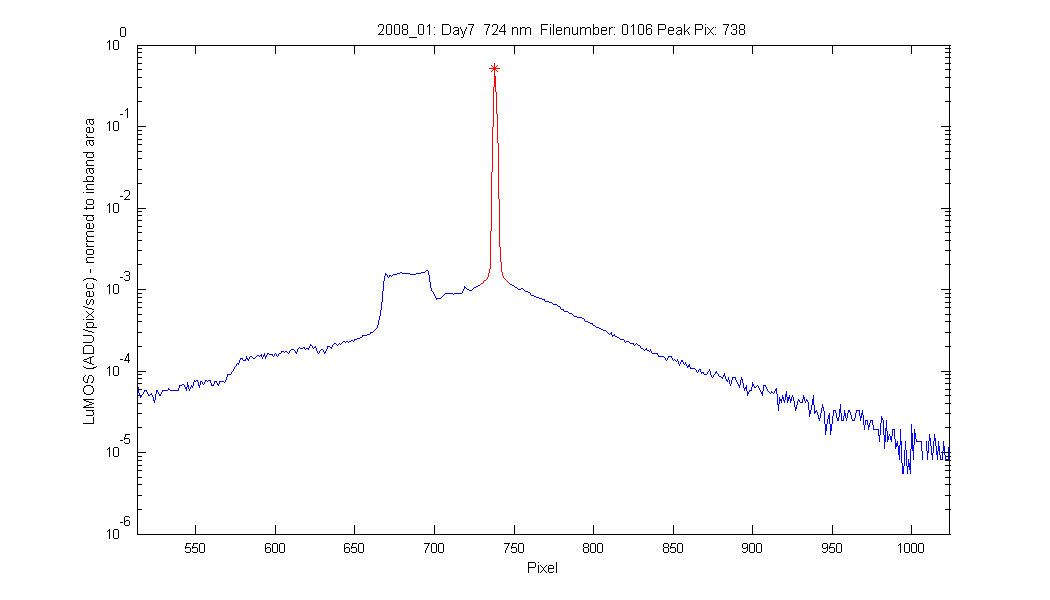

Figure 15

Figure 16

Figure 17

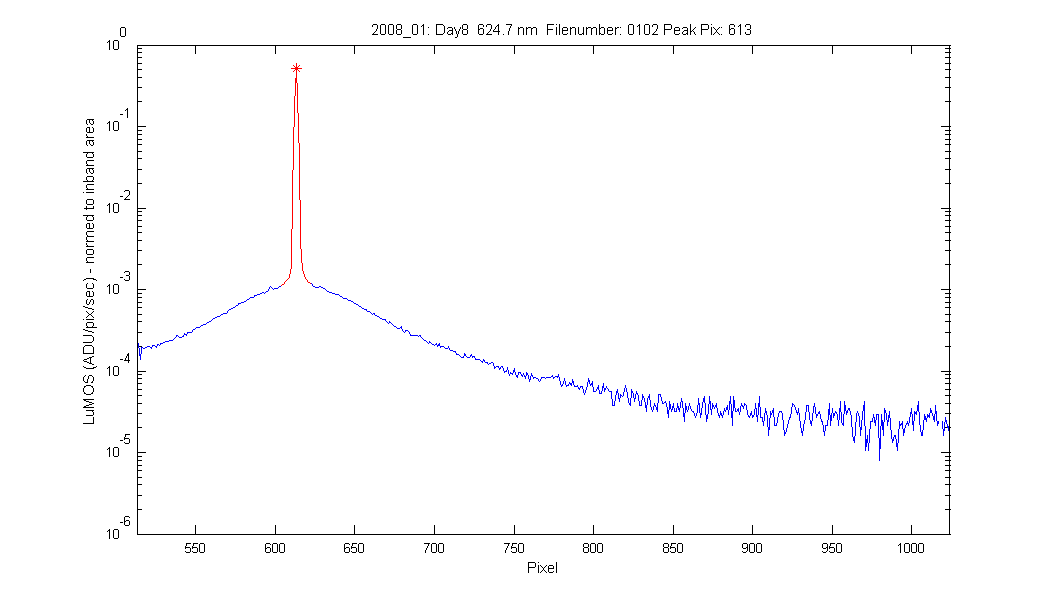

Figure 18

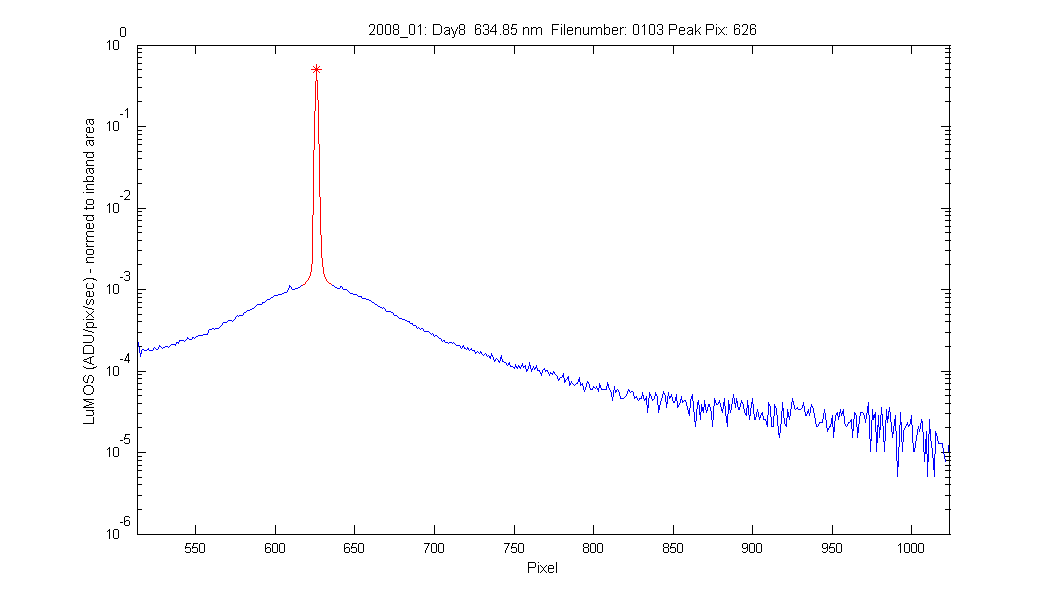

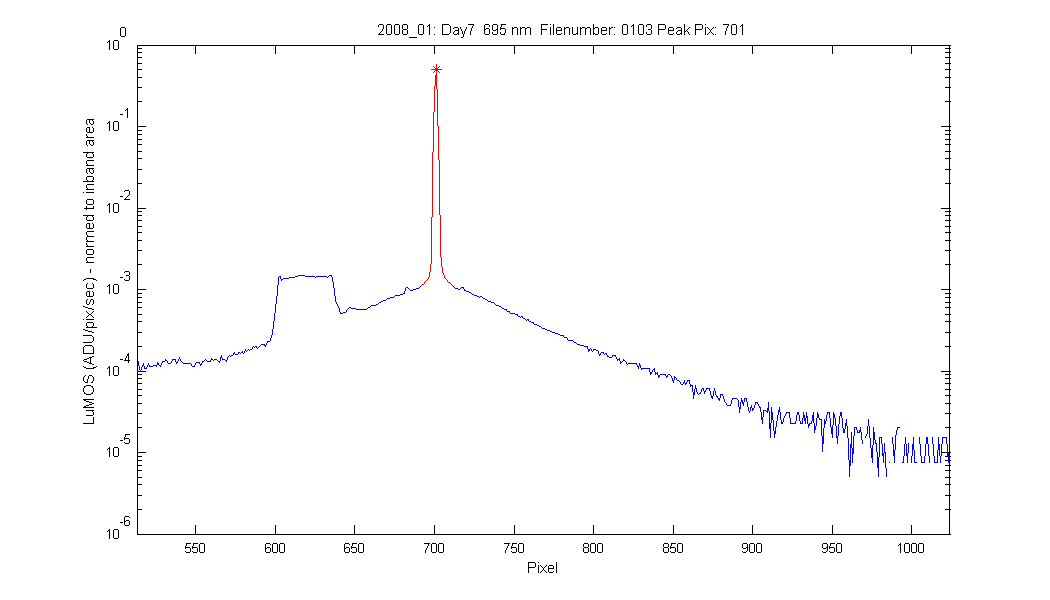

Figure 19

Figure 20

Figure 21

Figure 22

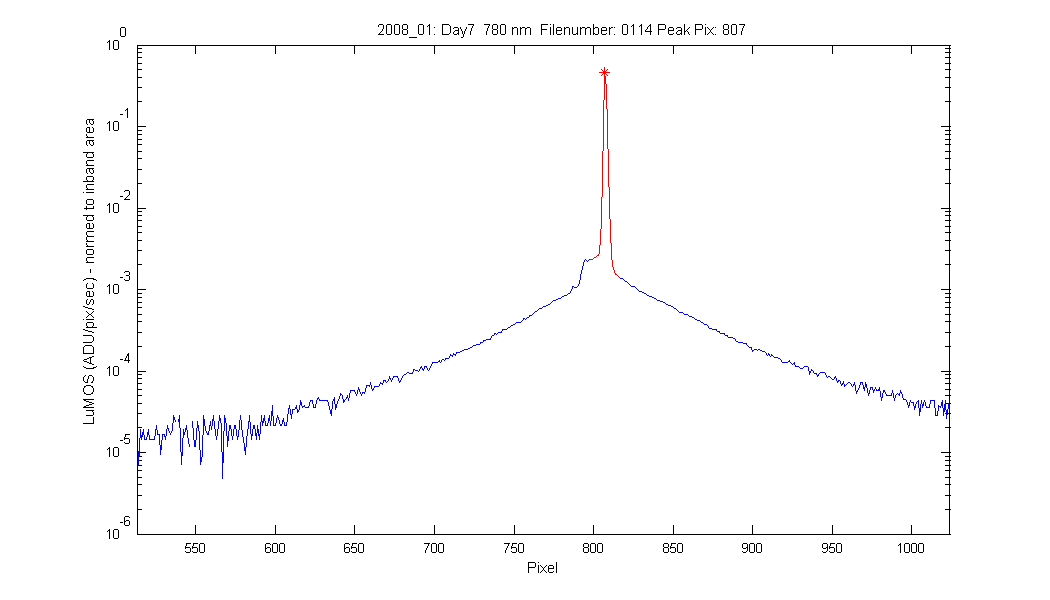

Figure 23

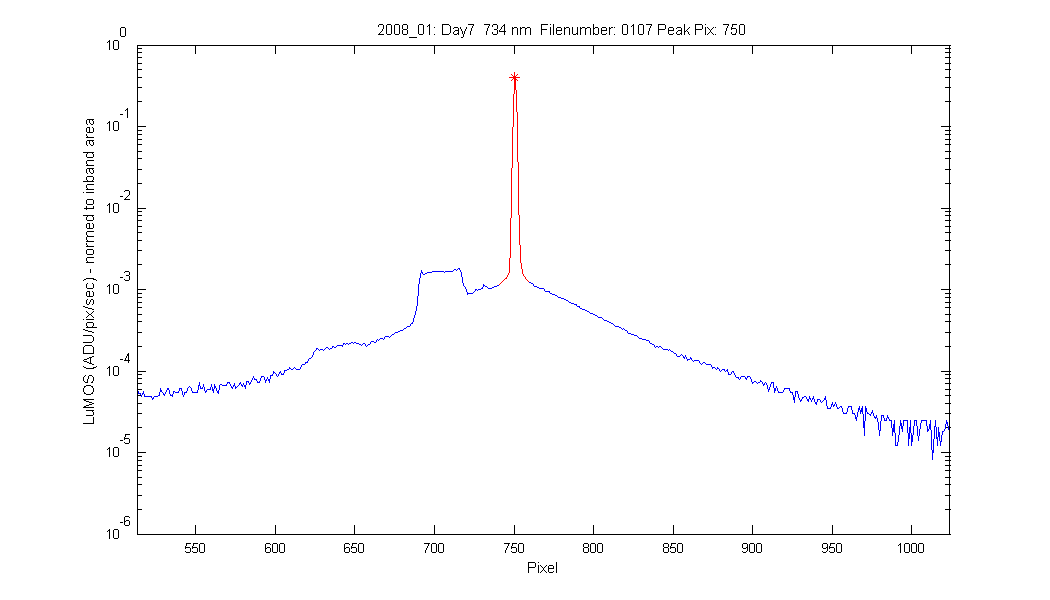

Figure 24

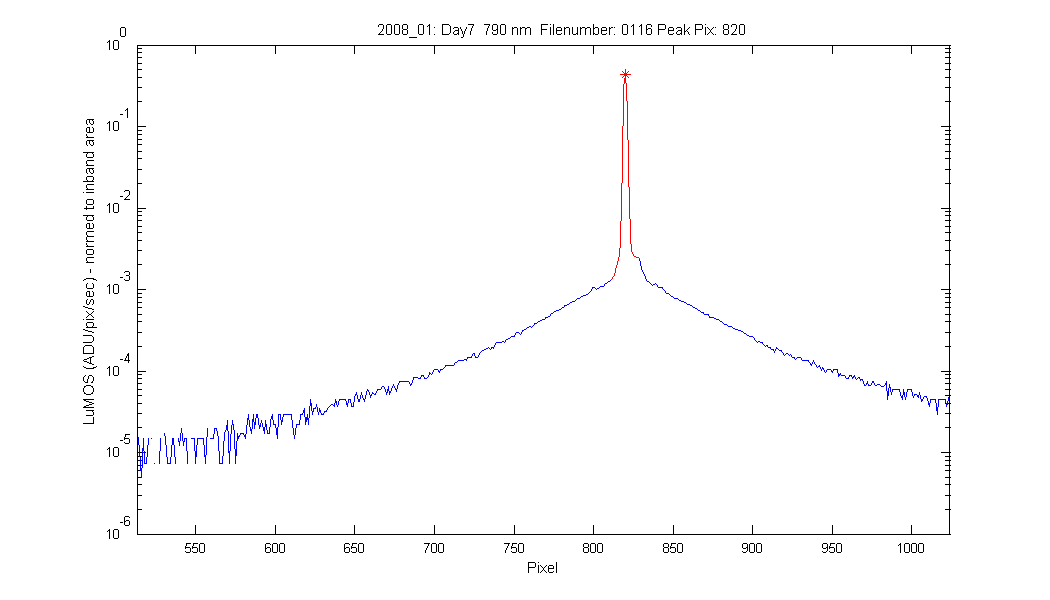

Figure 25

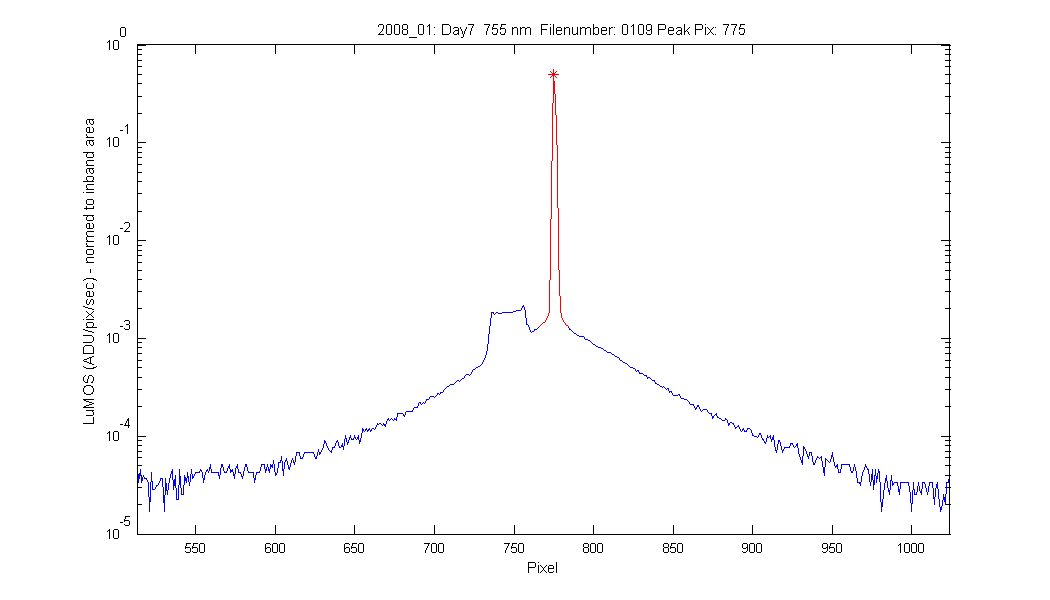

Figure 26

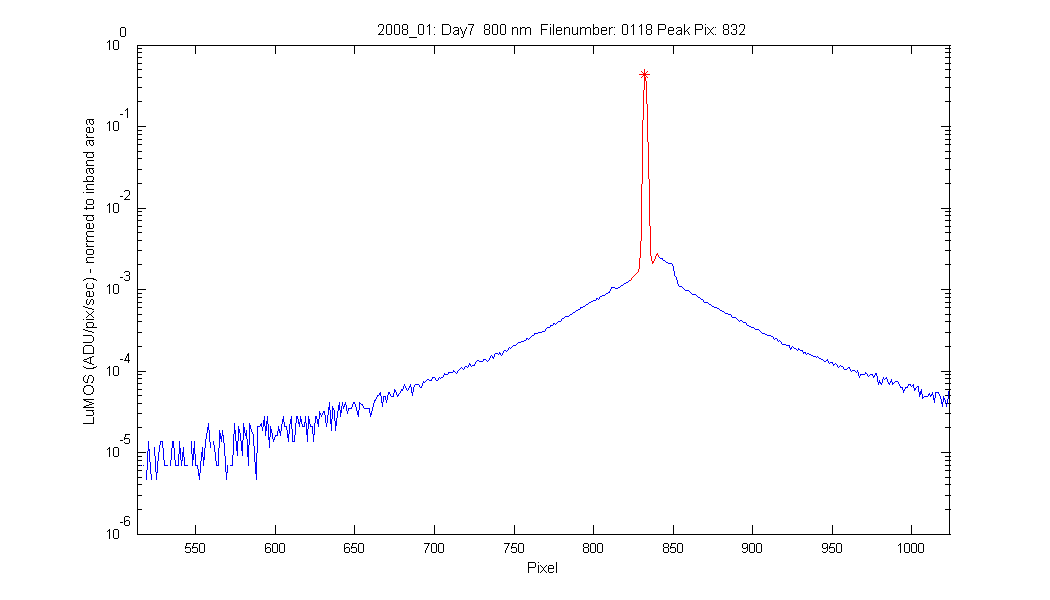

Figure 27

Figure 28

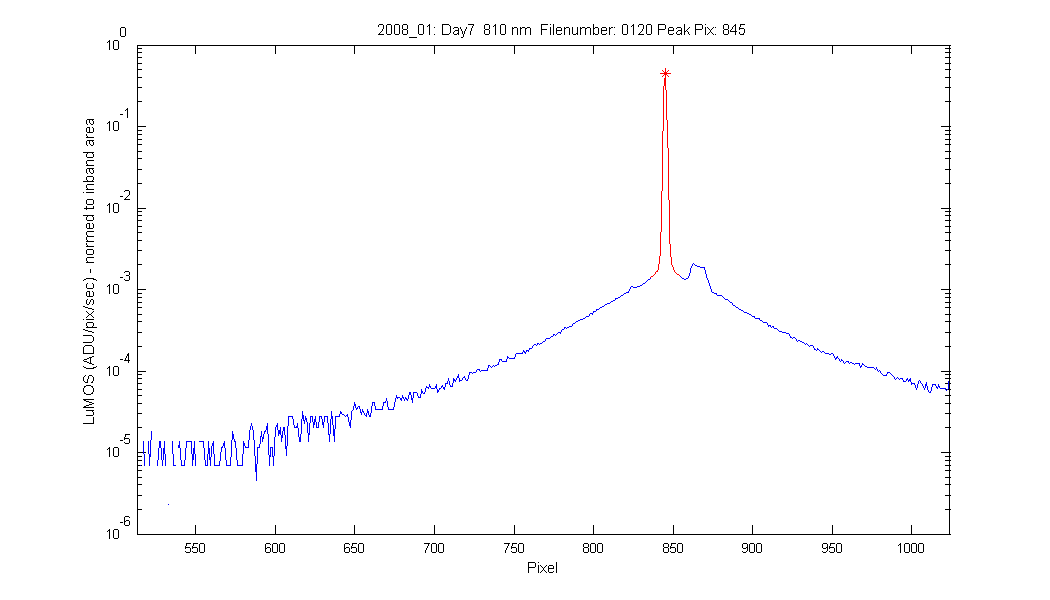

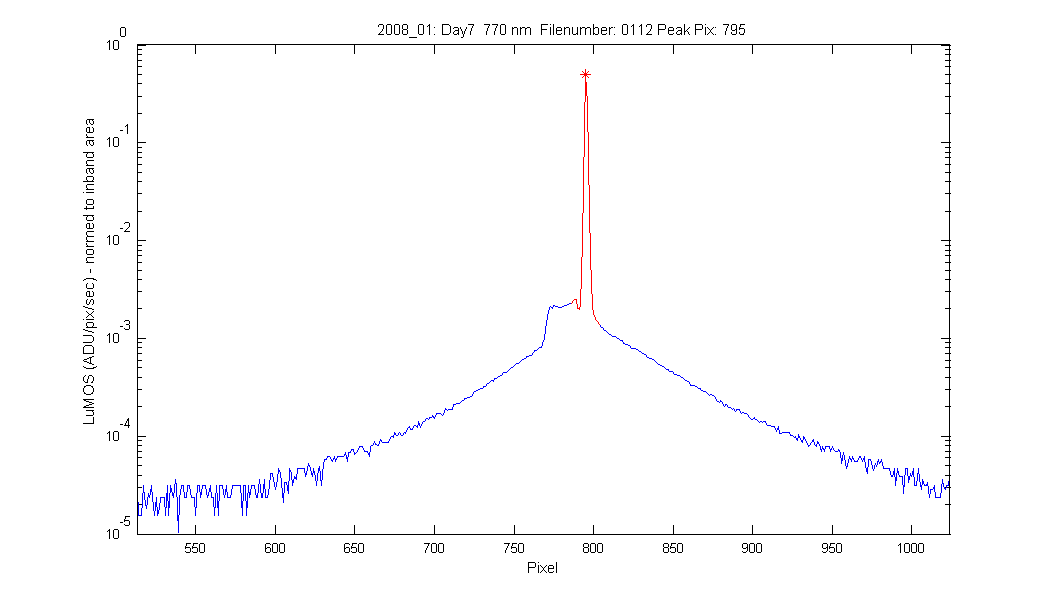

Figure 29

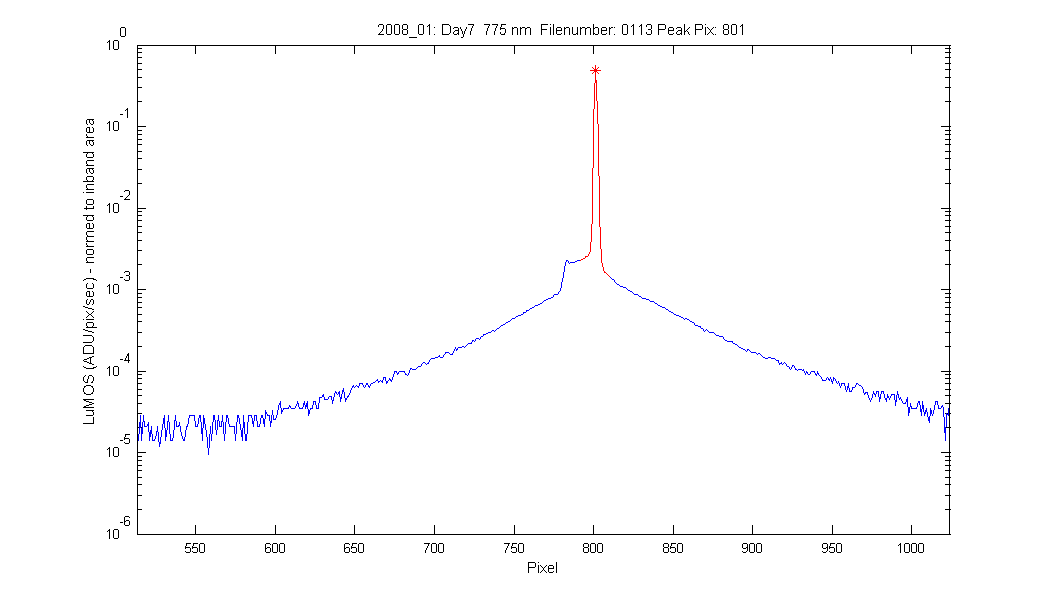

Figure 30

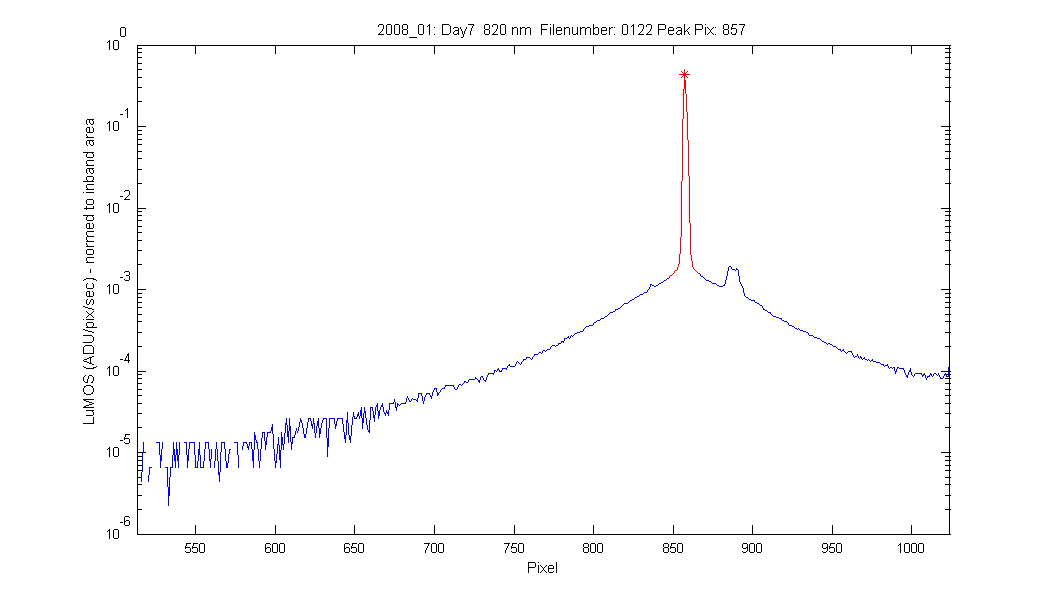

Figure 31

Figure 32

Figure 33

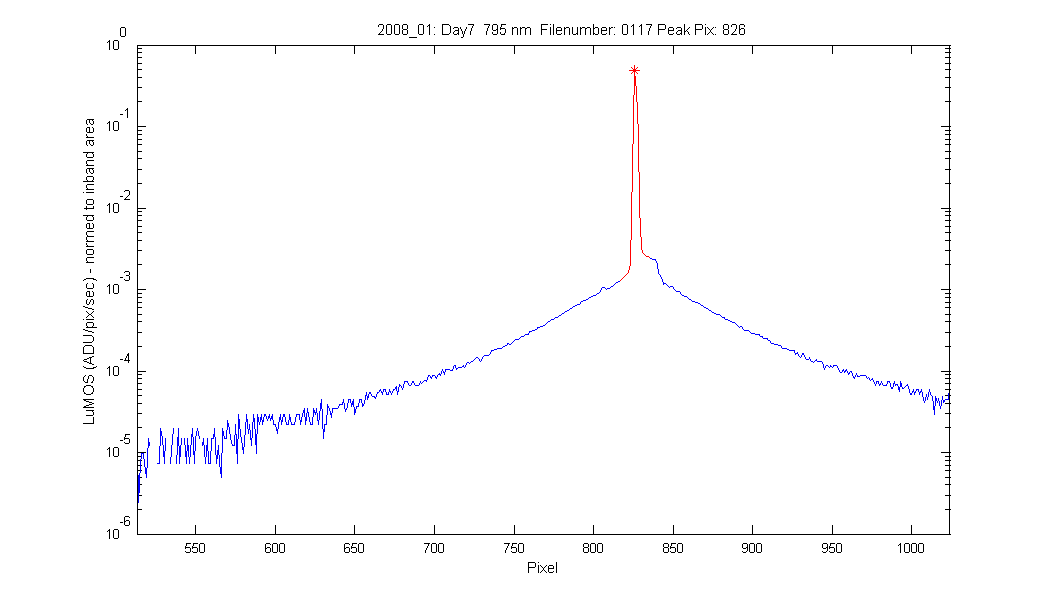

Figure 34

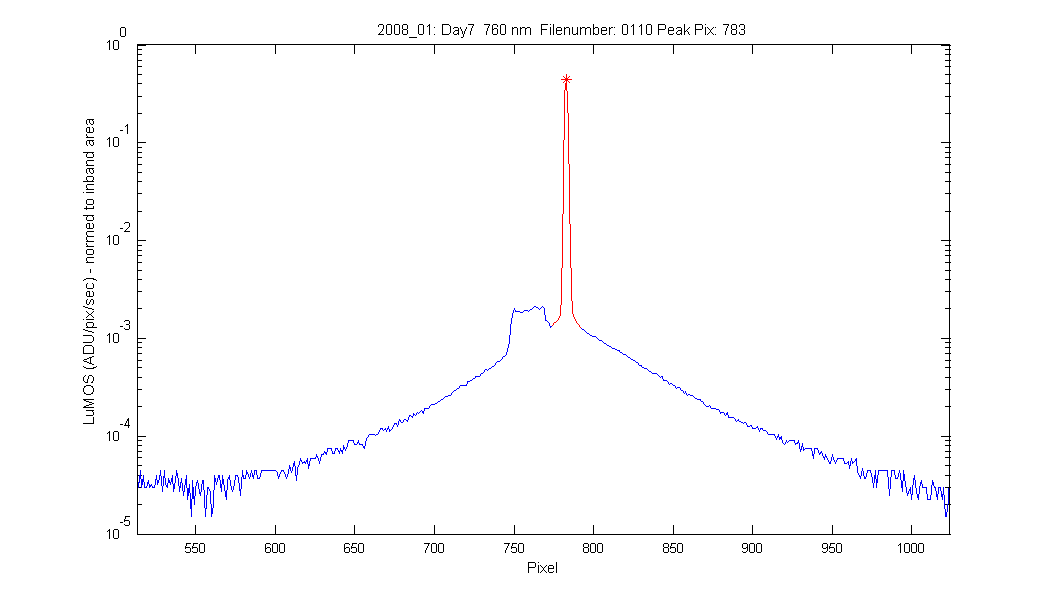

Figure 35

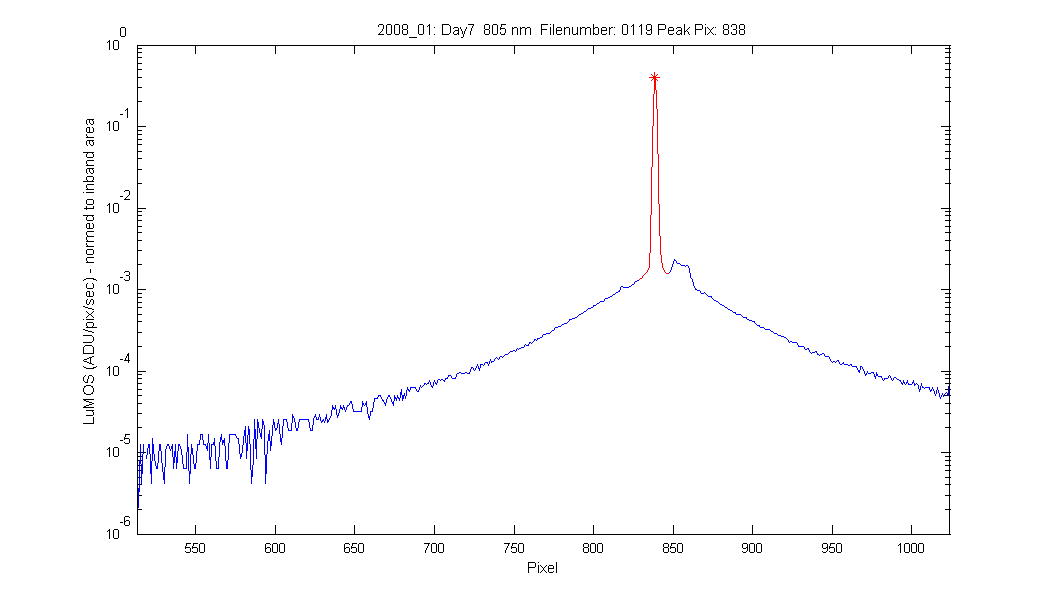

Figure 36

Figure 37

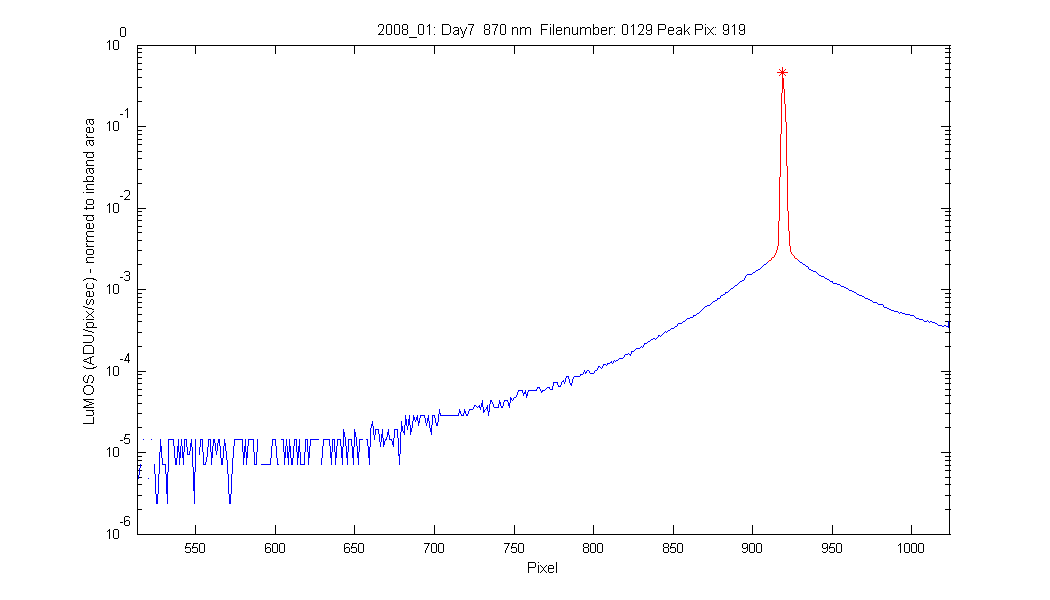

Figure 38

Figure 39

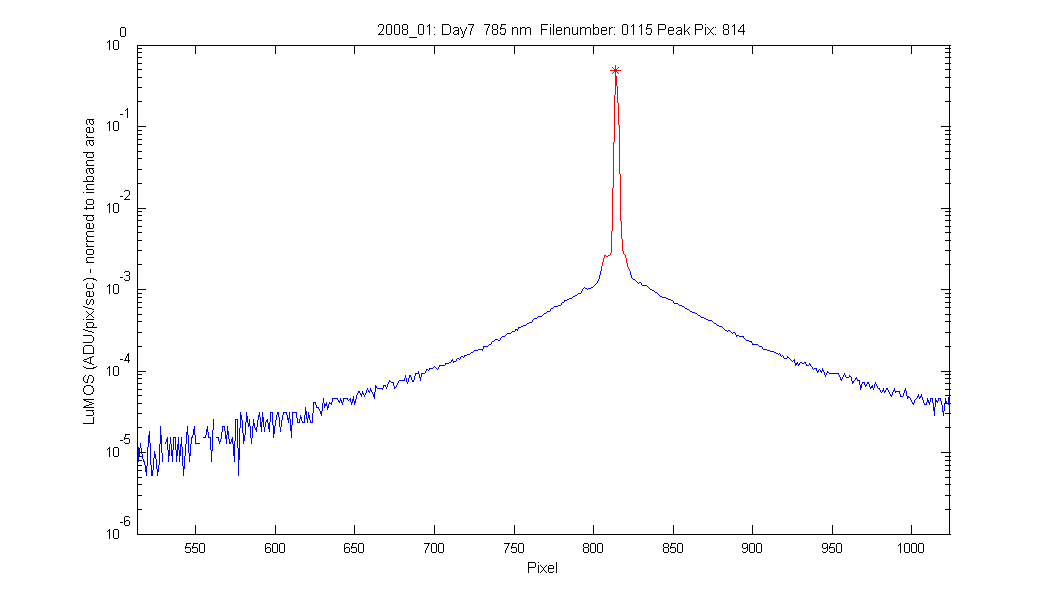

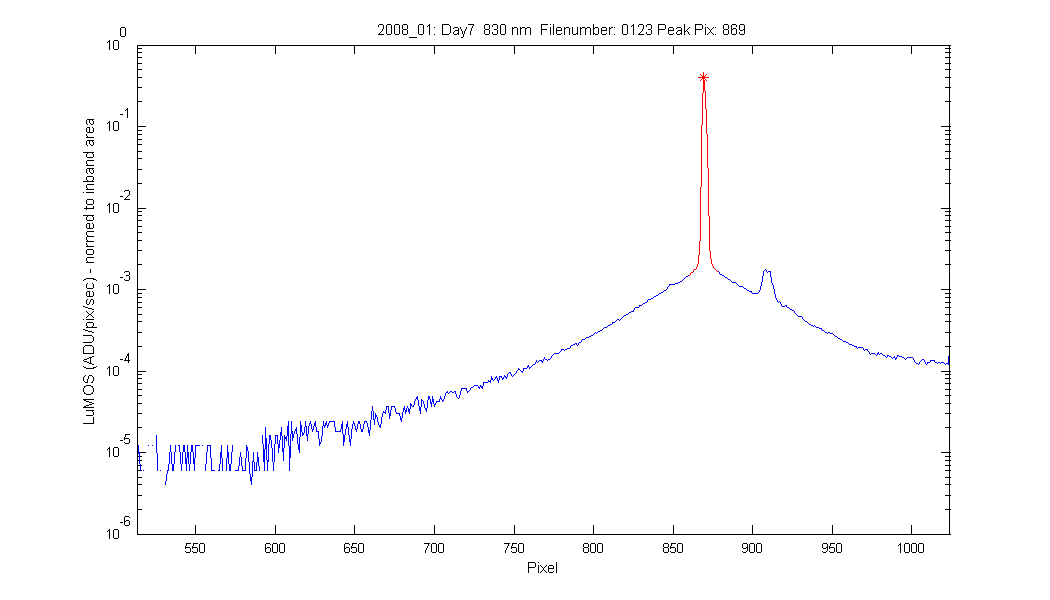

Figure 40

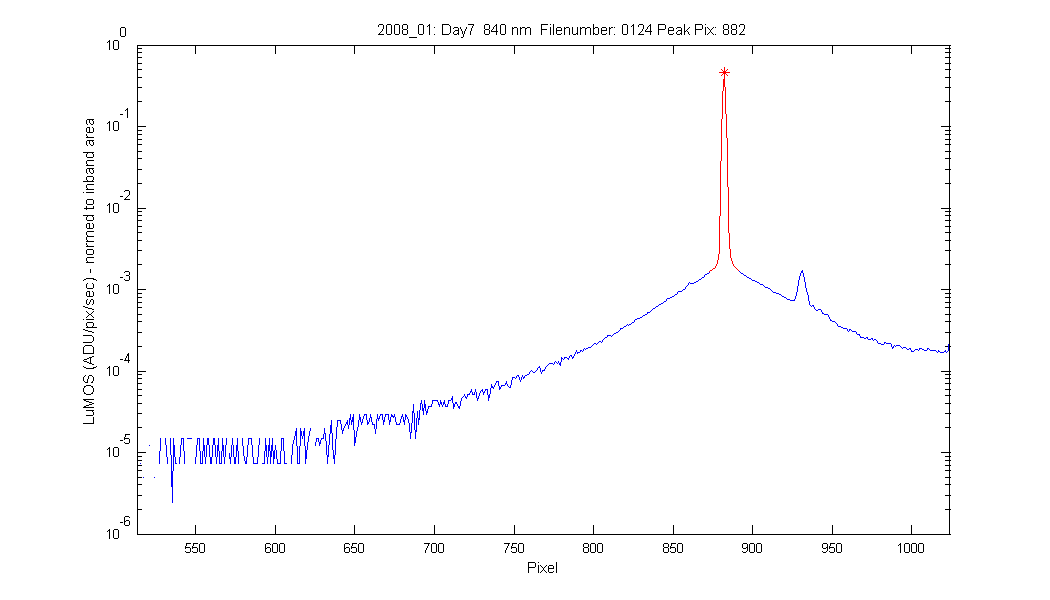

Figure 41

Figure 42

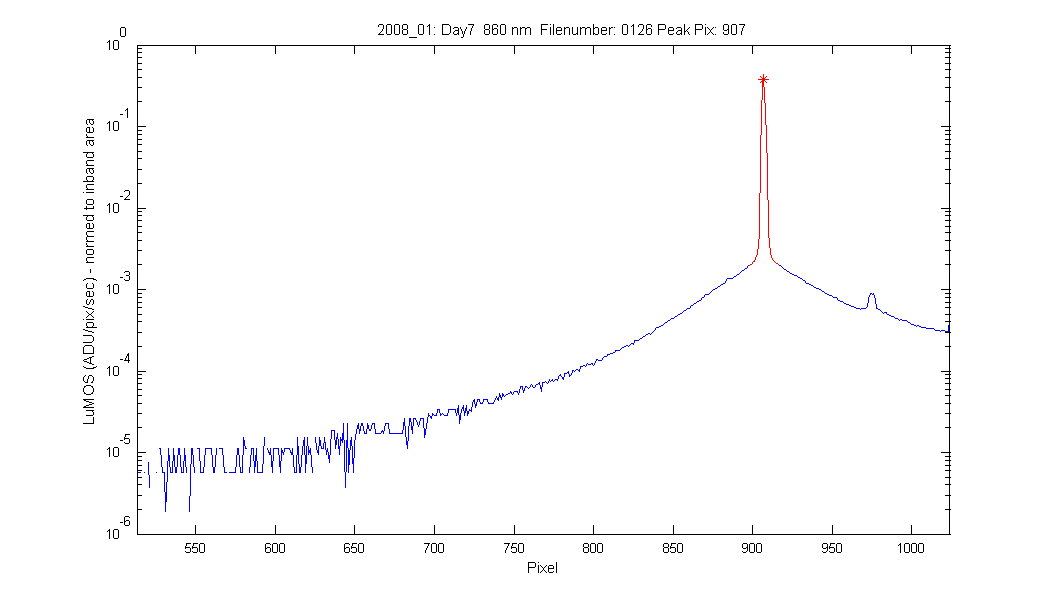

Figure 43

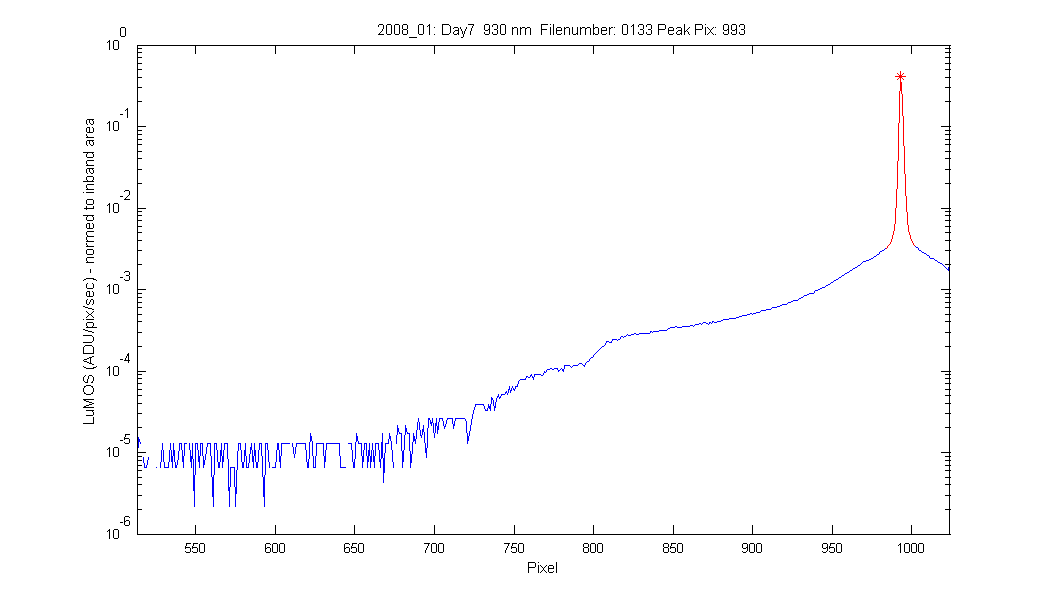

Figure 44

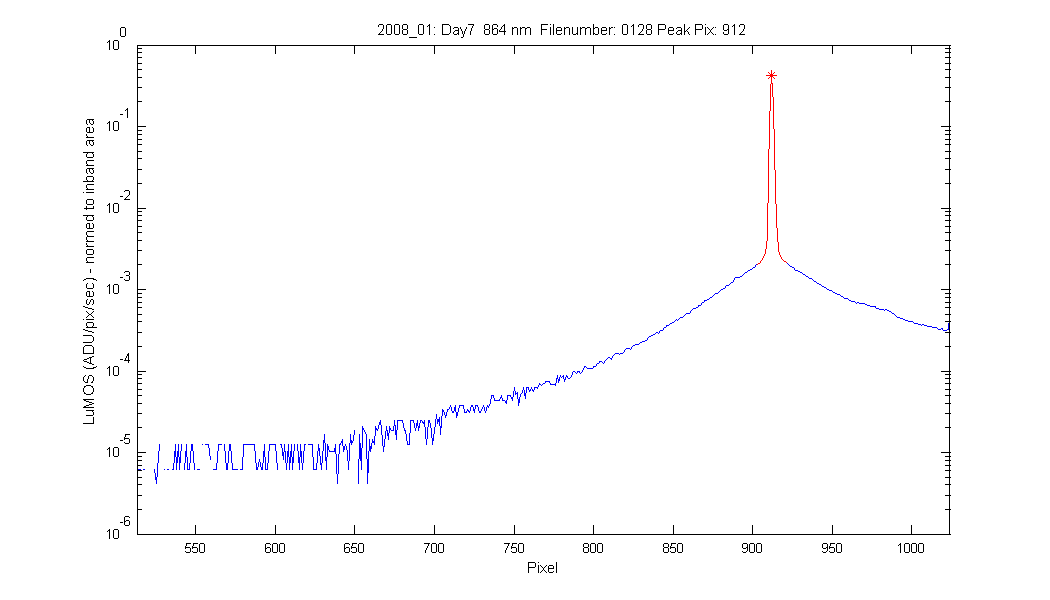

Figure 45

Figure 46

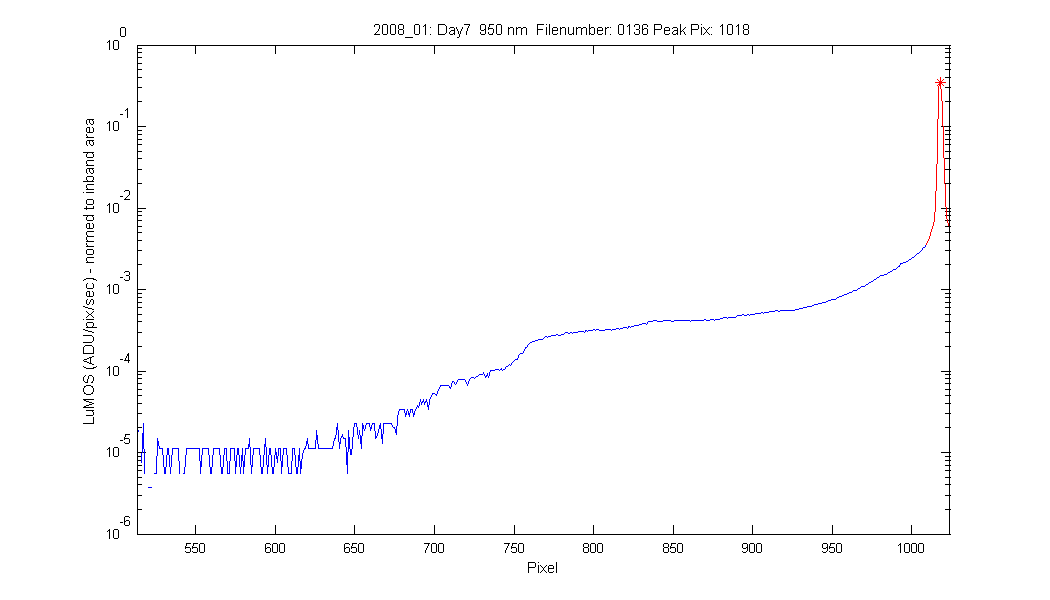

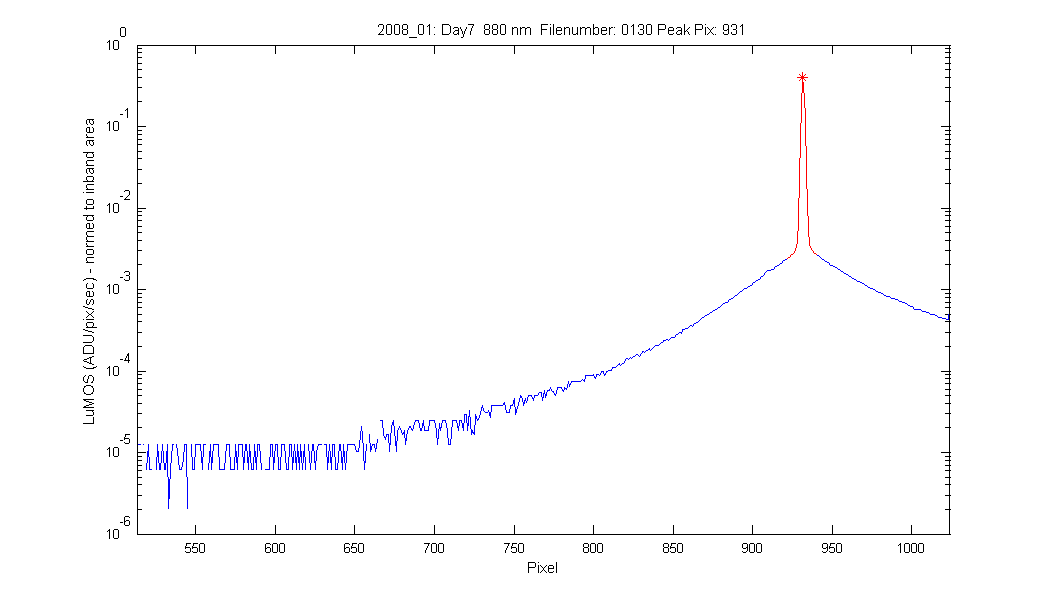

Figure 47

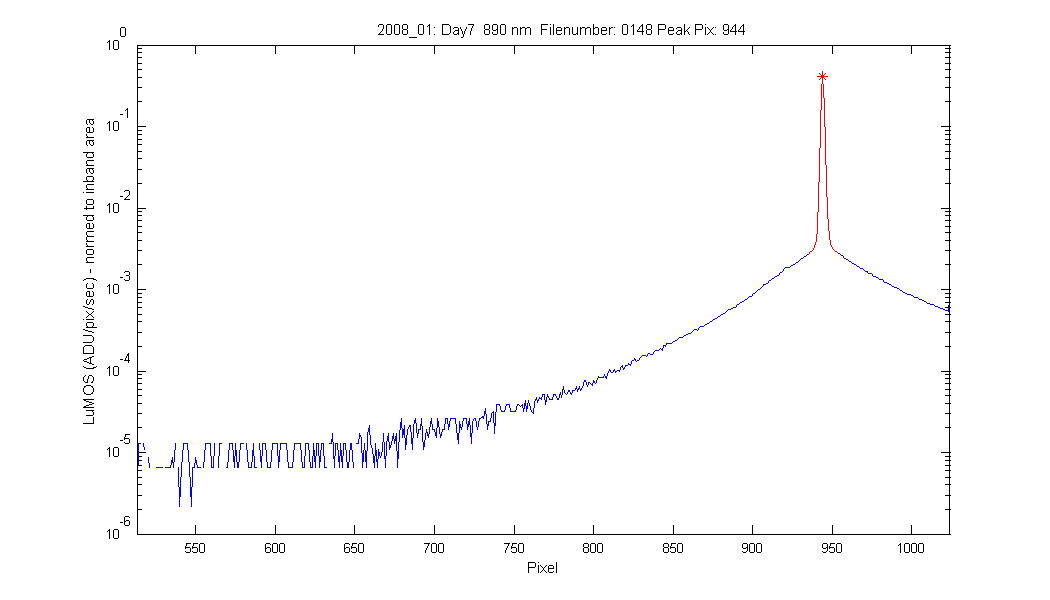

Figure 48

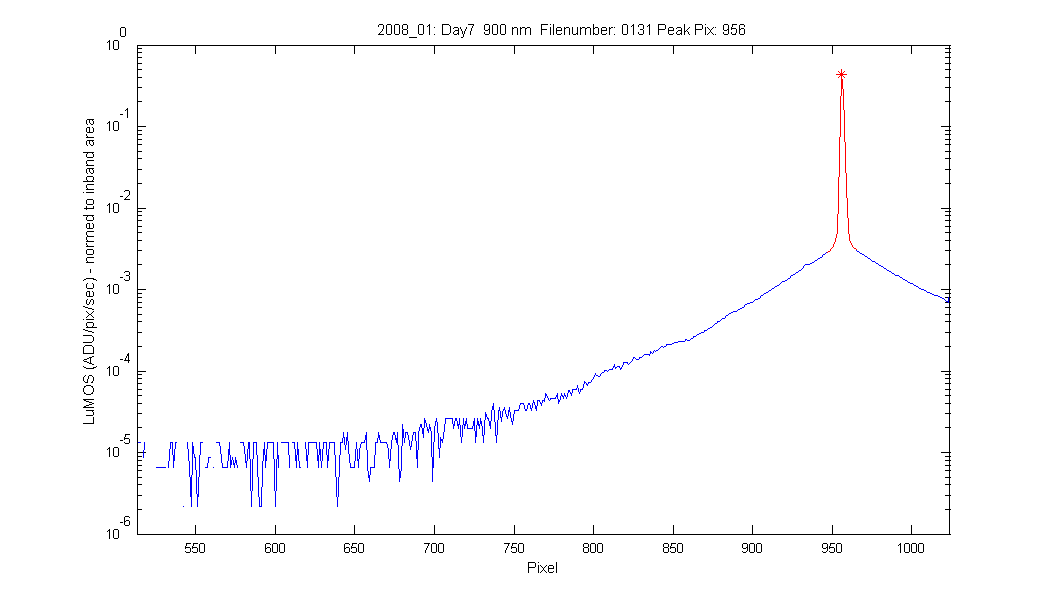

Figure 49

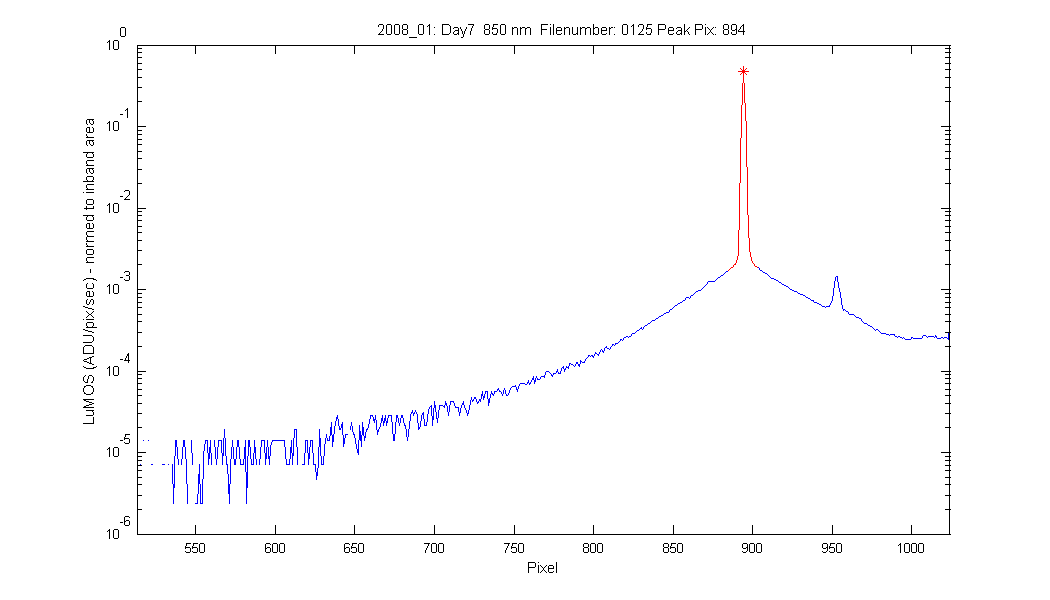

Figure 50

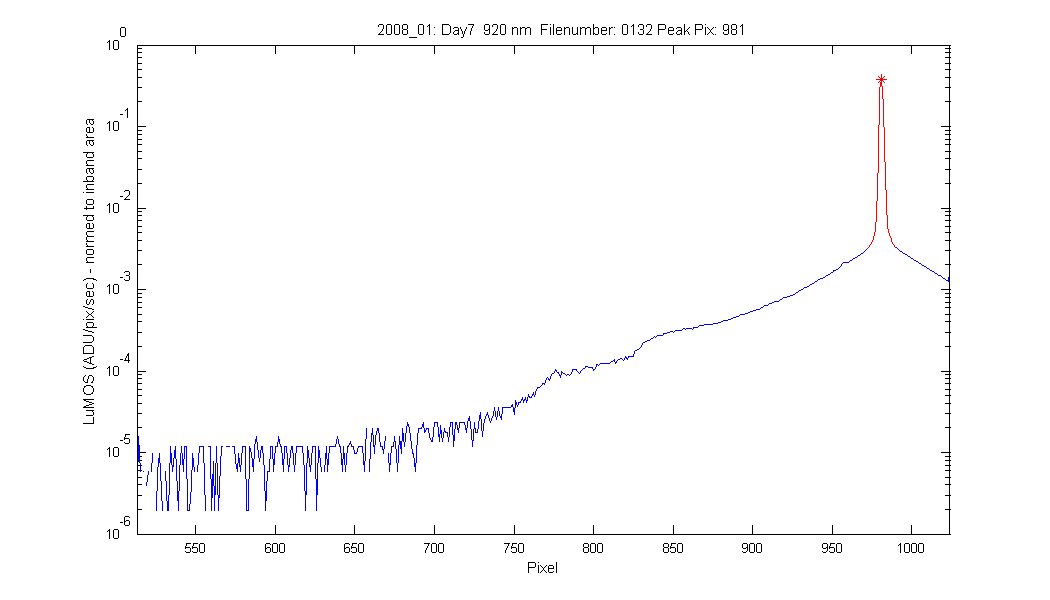

Figure 51

Figure 52

Figure 53

Figure 54

Figure 55

Figure 56

Figure 57

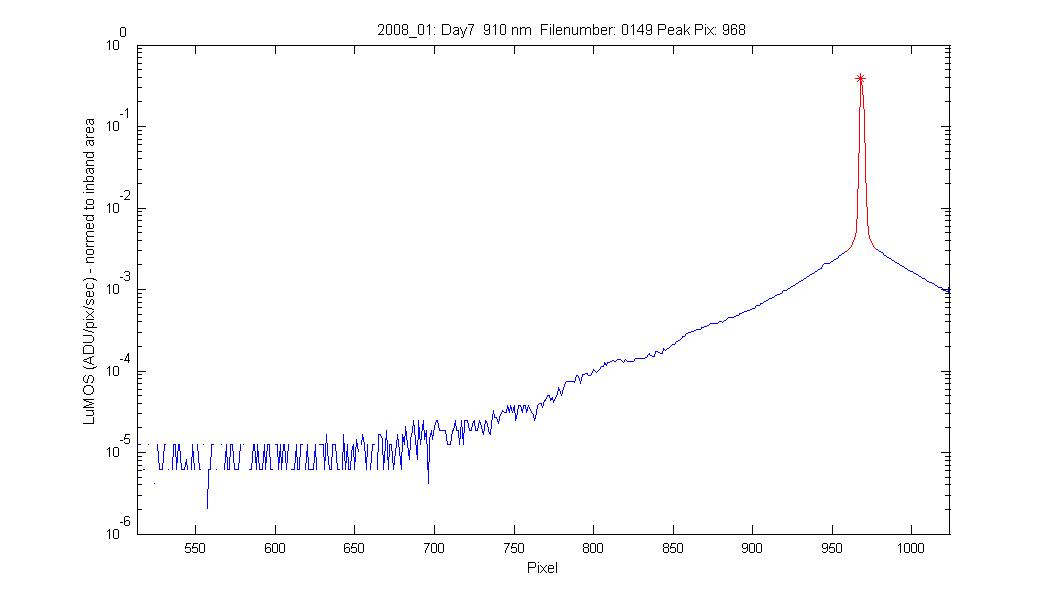

Figure 58

Figure 59

Figure 60

Figure 61

Figure 62

Figure 63

Figure 64


Wavelength Day Filename Collector Int Time (sec)
(B/R)		 Bin Factor (pix)
(B/R)		 Peak Pixel %std @ edges
(Left/Right)		 Sine Wave Unwanted peaks Water Bath
555 9 upco0102 21.4 0.69399/99.9415 1/ 384 657 46.20/53.87 No No Off
559.7 9 upco0103 21.4 0.34078/99.9415 1/ 384 531 1397.81/72.40 No No Off
565 8 upr60101 21.4 0.46813/14.8631 1/ 384 538 1939.29/70.69 No No Off
570 8 upr60106 21.4 0.53681/5.7424 1/ 128 544 0.19/77.97 No No Off
575 8 upr60102 21.4 0.46813/1.2947 1/ 128 551 0.44/71.14 No No Off
585 8 upr60103 21.4 0.55646/1.1961 1/ 32 563 12.18/39.43 No No Off
595 8 upr60104 21.4 0.66452/0.99886 1/ 12 576 11.55/32.36 No No Off
605 8 upr60105 21.4 0.81189/0.99886 1/ 6 589 10.67/15.34 No No Off
614.5 8 updc0101 21.4 0.28205/0.6547 6/ 8 600 9.59/32.01 No No Off
624.7 8 updc0102 21.4 0.34078/0.74311 6/ 4 613 8.36/27.53 No No Off
634.85 8 updc0103 21.4 0.39951/0.66452 6/ 4 626 6.29/43.32 No No Off
645.5 8 updc0104 21.4 0.66452/0.60558 16/ 3 639 71.84/53.73 No No Off
655.3 8 updc0105 21.4 0.99886/0.53681 384/ 3 651 5.58/55.66 No No Off
665.6 8 updc0106 21.4 0.99886/0.31141 384/ 3 664 34.86/49.04 No No Off
671.4 8 updc0107 21.4 0.99886/0.4093 384/ 4 672 3.03/35.47 No No Off
676.4 8 updc0108 21.4 0.99886/0.43872 384/ 2 678 8.74/45.41 No No Off
682.1 8 updc0109 21.4 0.99886/0.50734 384/ 2 685 8.93/33.77 No No Off
688 8 updc0110 21.4 0.99886/0.56628 384/ 3 692 9.15/50.95 No No Off
695 7 upts0103 21.4 0.99886/0.66452 384/ 1 701 8.57/35.70 No No Off
701 7 upts0102 21.4 0.99886/0.77258 384/ 1 708 5.09/30.21 No No Off
704 7 upts0104 21.4 0.99886/0.77258 384/ 1 713 6.60/22.24 No No Off
714 7 upts0105 21.4 0.99886/0.90045 384/ 1 726 20.21/39.06 No No Off
724 7 upts0106 21.4 0.99886/0.90045 384/ 1 738 8.13/31.42 No No Off
734 7 upts0107 21.4 0.99886/0.4093 384/ 1 750 8.66/26.41 No No Off
744 7 upts0108 21.4 0.99886/0.31141 384/ 1 763 13.56/32.83 No No Off
755 7 upts0109 21.4 0.99886/0.31141 384/ 1 775 22.31/21.29 No No Off
760 7 upts0110 21.4 0.99886/0.31141 384/ 1 783 19.96/18.05 No No Off
765 7 upts0111 21.4 0.99886/0.31141 384/ 1 789 20.15/13.16 No No Off
770 7 upts0112 21.4 0.99886/0.31141 384/ 1 795 25.77/21.80 No No Off
775 7 upts0113 21.4 0.99886/0.31141 384/ 1 801 23.72/15.47 No No Off
780 7 upts0114 21.4 0.99886/0.29184 384/ 1 807 29.22/14.39 No No Off
785 7 upts0115 21.4 0.99886/0.35057 384/ 1 814 36.76/14.85 No No Off
790 7 upts0116 21.4 0.99886/0.35057 384/ 1 820 29.03/13.14 No No Off
795 7 upts0117 21.4 0.99886/0.3212 384/ 1 826 41.11/16.51 No No Off
800 7 upts0118 21.4 0.99886/0.44852 384/ 1 832 37.16/15.12 No No Off
805 7 upts0119 21.4 0.99886/0.4093 384/ 1 838 37.67/12.85 No No Off
810 7 upts0120 21.4 0.99886/0.35057 384/ 1 845 41.46/9.66 No No Off
815 7 upts0121 21.4 0.99886/0.29184 384/ 1 851 35.98/8.84 No No Off
820 7 upts0122 21.4 0.99886/0.29184 384/ 1 857 32.16/4.89 No No Off
830 7 upts0123 21.4 0.99886/0.25269 384/ 1 869 38.08/4.85 No No Off
840 7 upts0124 21.4 0.99886/0.25269 384/ 1 882 36.55/4.04 No No Off
850 7 upts0125 21.4 0.99886/0.25269 384/ 1 894 44.95/2.96 No No Off
860 7 upts0126 21.4 0.99886/0.25269 384/ 1 907 40.77/6.27 No No Off
862 7 upts0127 21.4 0.99886/0.23314 384/ 1 909 36.34/3.87 No No Off
864 7 upts0128 21.4 0.99886/0.26247 384/ 1 912 32.00/6.39 No No Off
870 7 upts0129 21.4 0.99886/0.29184 384/ 1 919 42.88/9.08 No No Off
880 7 upts0130 21.4 0.99886/0.36036 384/ 1 931 40.02/9.74 No No Off
890 7 upts0148 21.4 0.99886/0.36036 384/ 1 944 25.69/12.11 No No Off
900 7 upts0131 21.4 0.99886/0.36036 384/ 1 956 40.35/13.23 No No Off
910 7 upts0149 21.4 0.99886/0.45832 384/ 1 968 43.46/15.45 No No Off
920 7 upts0132 21.4 0.99886/0.58593 384/ 1 981 46.16/17.14 No No Off
930 7 upts0133 21.4 0.99886/0.68417 384/ 1 993 27.24/21.07 No No Off
940 7 upts0134 21.4 0.99886/1.0975 384/ 1 1005 36.37/212.20 No No Off
945 7 upts0135 21.4 0.99886/1.5906 384/ 1 1012 40.77/205.71 No No Off
950 7 upts0136 21.4 0.99886/0.75293 384/ 1 1018 36.77/210.65 No No Off
955 7 upts0137 21.4 0.99886/0.34078 384/ 1 1024 37.31/41.06 No No Off
pwd: C:\zflora\mldata\straylite\NIST_mos\NIST2008_01\lasers
Date: 20-Nov-2013 15:29:37
