| CRUISE | DATES | LOCATION |
| MOBY-L336 | 15-Dec-2022 - 15-Dec-2022 | Lanai |

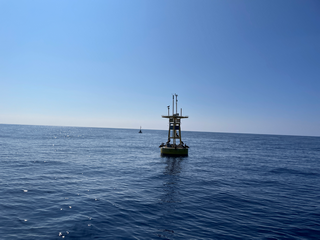

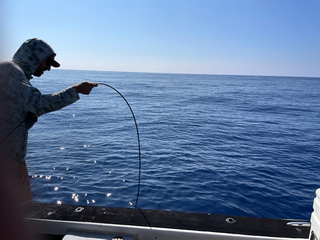

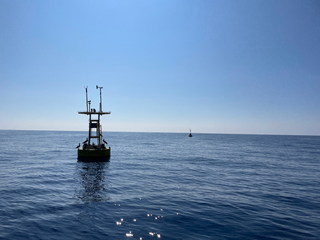

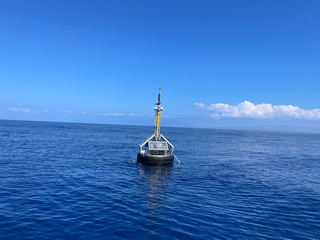

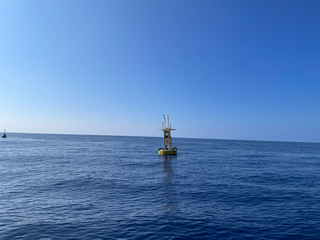

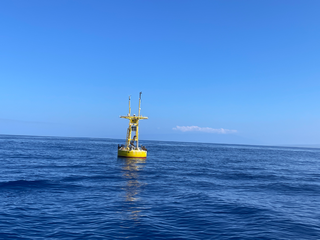

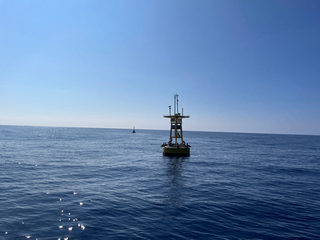

| Description: MOBY-L335: 15 Dec 2022 MOBY Maintenance Cruise: Andrew and Terry went to MOBY-L276 on Wednesday, January 18, to collect data using the Hyperpro profiling instrument. The purpose was to collect profiles coincident with the MOS collections so that we could troubleshoot issues with L276. We collected data from the yoyo casts during the period when the MOS was also collecting data which was about 20 minutes. All the following times are HST although the data files were collected using the computer time which is set to GMT. We departed Mala Warf at 0900 aboard the Aloha Kai with Captain Craig at the wheel. Other than the first set of data we tried to have the profiler in the water at least 10 minutes before data was collected to allow for instrument acclamation. We were on station at 1050 and after setting up the instrument we began the 20m yoyos at 1104. The first Lu MOS collection was at 1105 so we were a bit rushed and forgot to remove the cap off the Lu collector although the covers were removed from the Ed and the Es collectors. The descent rate for the profiler was about .45m/s so we removed about 75g of lead to slow this rate down. The initial data file was named 2023_018_210904.raw. The naming convention is yyyy_jday_hhmmss.raw and this is automatically added due to an initial file naming configuration. The second set of casts were started at 2130 and this corresponds to when the MOS was collecting Ed data and were saved to file 2023_018_213047.raw. The removal of the lead also slowed the descent rate to .33m/s. Lu data yoyos for the 2200 satellite overpass were started at 1233 and saved to file 2023_018_223317.raw. The last set of profiles was started at 1415 and save in file 2023_018_001828.raw | ||
| Details: | ||
| 20230118_moby-l336 |
|
|
|
|
|
moby-l336_01 |
moby-l336_02 |
moby-l336_03 |
moby-l336_04 |
|
|
moby-l336_05 |
moby-l336_06 |
moby-l336_07 |
moby-l336_08 |
|
|
moby-l336_09 |
moby-l336_10 |
moby-l336_11 |
moby-l336_12 |
|
|
moby-l336_13 |
moby-l336_14 |
moby-l336_15 |
| Movie mp4 | Size in MB | Length (MM:SS) | Description | Link for download |
| 327.68 MB | xx | xx | moby-l363.mp4 |
