ENGINEERING INFORMATION
                      LITE        LITE
                     START        STOP      INT      INT      BIN      BIN   No.   No.    Maximum    Maximum
                     TIME        TIME      TIME     TIME   FACTOR   FACTOR    of    of     Counts     Counts
      FILENAME    HH:MM:SS    HH:MM:SS   (Blue)    (Red)   (Blue)    (Red) Lites Darks     (Blue)      (Red)     FHDS(7,:)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
      S04L0102    22:17:47    22:18:50     5.00    10.00        1      192     5     2      44165        947      RED BAD
      S04L0502    22:51:57    22:54:08     5.00    60.00        1       48     3     2      40639       3574      RED ???
      S04L1101    21:58:05    21:59:11     6.00    10.00        1      384     5     2      46485        992      NO RED ADU

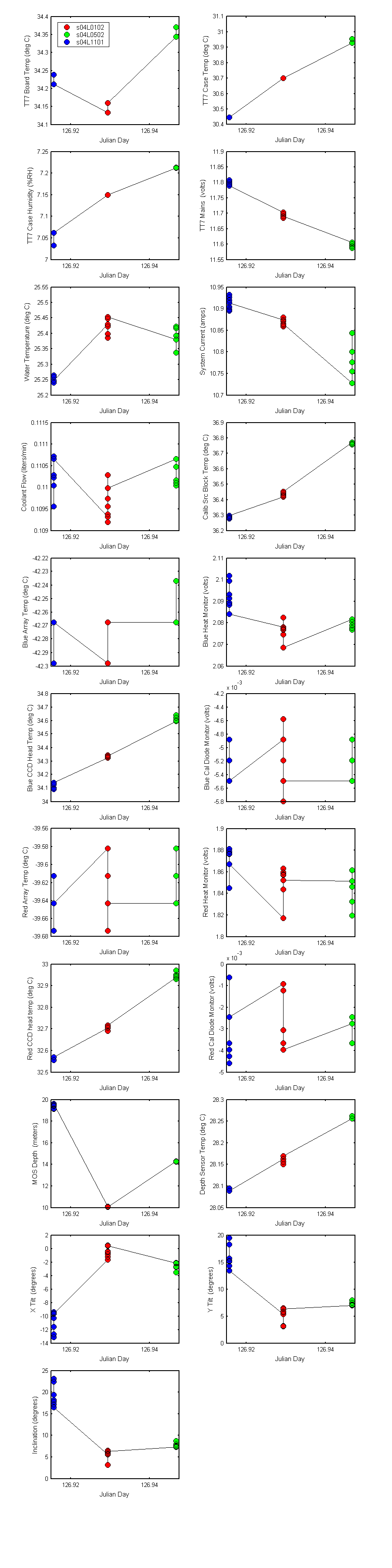

  MEAN AUXILLIARY TEMPERATURES FOR EACH MOS FILE (Depth data corrected)
     FILENAMES   tt7 board   tt7 case      water  src block        tt7     system    coolant   tt7 case    b array     b heat b ccd head  cal diode    R array     R heat R ccd head  cal diode      depth pth sensor          x          y
                      temp       temp       temp       temp      mains    current       flow        hum       temp        mon       temp        mon       temp        mon       temp        mon      depth       temp       tilt       tilt
       S04L0102     34.149     30.700     25.420     36.441     11.692     10.869      0.110      7.150    -42.274      2.078     34.337     -0.005    -39.649      1.856     32.702     -0.003      1.431     28.158     -0.485      4.856
       S04L0502     34.344     30.954     25.382     36.759     11.600     10.777      0.110      7.212    -42.247      2.079     34.608     -0.005    -39.623      1.847     32.942     -0.003      5.613     28.258     -2.984      7.500
       S04L1101     34.217     30.447     25.253     36.289     11.801     10.915      0.110      7.038    -42.292      2.093     34.108     -0.005    -39.661      1.879     32.563     -0.003     10.789     28.091    -10.796     15.727

  MOS PROFILER CONFIGURATION FILE
  CFG file:    s04av1.cfg     CFG by:      m.feinholz   Rev Date:  14-jul-2005  What: mos & sis filenames to be used for processing
  CRUISE:        MOBY-L45     STATION:  04av1, MOBY Mooring III                 SHIP: Moana Wave
  CAST DATE:  06-May-1999     POSITION: 20° 49.57' N   157° 11.1' W
  MOS SN:           2.006     RSP FILE: l45_rsp_r1v1.mld
  DEPTHS:   MOS Profiler depths are in the MLD file Vaux(16,:)
  TYPE OF DATA:     InW depth profile
  PROCESSING FLAGS: CONVERT = Avg Lites      KL     = Calc Kl- OLD
                    DERIVE  = Derive-OLD     SLC    = SLCed           ES PRC = SIS MOS Es
  NOTE1: problems with red spec !! intermittant BAD RED DATA !!
  NOTE2: 22:30 SeaWiFS, SkyCam tape#2
  NOTE3: re-process with SLC & TCorr response
  FILE LISING..........................................................
    Group 1:   S04L0102  In File  Used         SIS: s1262218,s1262219
    Group 2:   S04L0502  In File  Used         SIS: s1262252,s1262253,s1262254
    Group 3:   S04L1101  In File  Used         SIS: s1262158,s1262159
  QCHKSTATUS------------
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 8; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 7; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 6; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 5; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 4; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 3; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L1101 VRrmvRSG = 2; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0502 VRrmvRSG = 6; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0502 VRrmvRSG = 5; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0502 VRrmvRSG = 4; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0502 VRrmvRSG = 3; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0502 VRrmvRSG = 2; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 8; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 7; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 6; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 5; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 4; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 3; DSCrmvRSG = 'RSG Removed';
  OPTION5: MOSFILE: S04L0102 VRrmvRSG = 2; DSCrmvRSG = 'RSG Removed';

  MOSCruise_info  Listing
   MOSPRCINFO.THERMALcor:              1
   MOSPRCINFO.WHICHtemperatureTHERMAL: 17            MOSPRCINFO.SETtempTHERMAL:           32.00
   MOSPRCINFO.THERMALcorBSG:           4.4450e-003   MOSPRCINFO.THERMALcorRSG:           5.2990e-003


   SLC.STRAYLIGHTCORRECT:              1
   SERIAL NUMBER:  7.030      BLUE SPR OPTION:      6      RED SPR OPTION:      6
   BLUE SPR FILE: Profiler_BSG_030815_2309.mat      RED SPR FILE: Profiler_RSG_030815_2309.mat
