| Description | Value or Code |
|---|---|
| Cruise_Name:, Vaux(12,:) | NIST |
| Cruise_Number | 2016-001 |
| Investigator:: Vaux(16,:) | Carol Johnson |
| Location_of_Measurement: Vaux(17,:) | NIST B019_221 |
| Purpose: Vaux(18,:) | Testing |
| MOBY_NET_Sequence_Position: Vaux(20,:) | Calibration Facility |
| Ambient_Air_Temp (deg C) | 23.1 |
| Relative_Humidity (%) | 23.5 |
| #_of_Levels | 1 |
| Time_Step (sec) | 5 |
| Initial lamp state: Vaux(40,:) | All Off |
| Time_adjustment_to_GMT | 0 |
| Time_of_Last_Servicing | 20151218 |
| SQM_120VAC_On | 20160209.171600 |
| SQM_Off_to_Standby | NaN |
| SQM_Standby_to_Off | NaN |
| SQM_120VAC_Off | NaN |
| Lamp 1 A burn hours | NaN |
| Lamp 3 A burn hours | NaN |
| DAQ_Program_Version | 0 |
| File Format Version | 2 |
| DAQ_Computer: Vaux(60,:) | EOS EQUIP 12 |
| DAQ_Program_Name: Vaux(61,:) | SQM Monitor_2.0.vi |
|
All Devices Under Test in the DUT column in DATA: DUT_Other {we are testing the pd behavior with various input configurations such as LED flashlight} |
|
ASCII SQM file data: SQM_20160209_002.txt
ASCII SQM file data: PDF log file
Neither Lamp was turned on during data collection

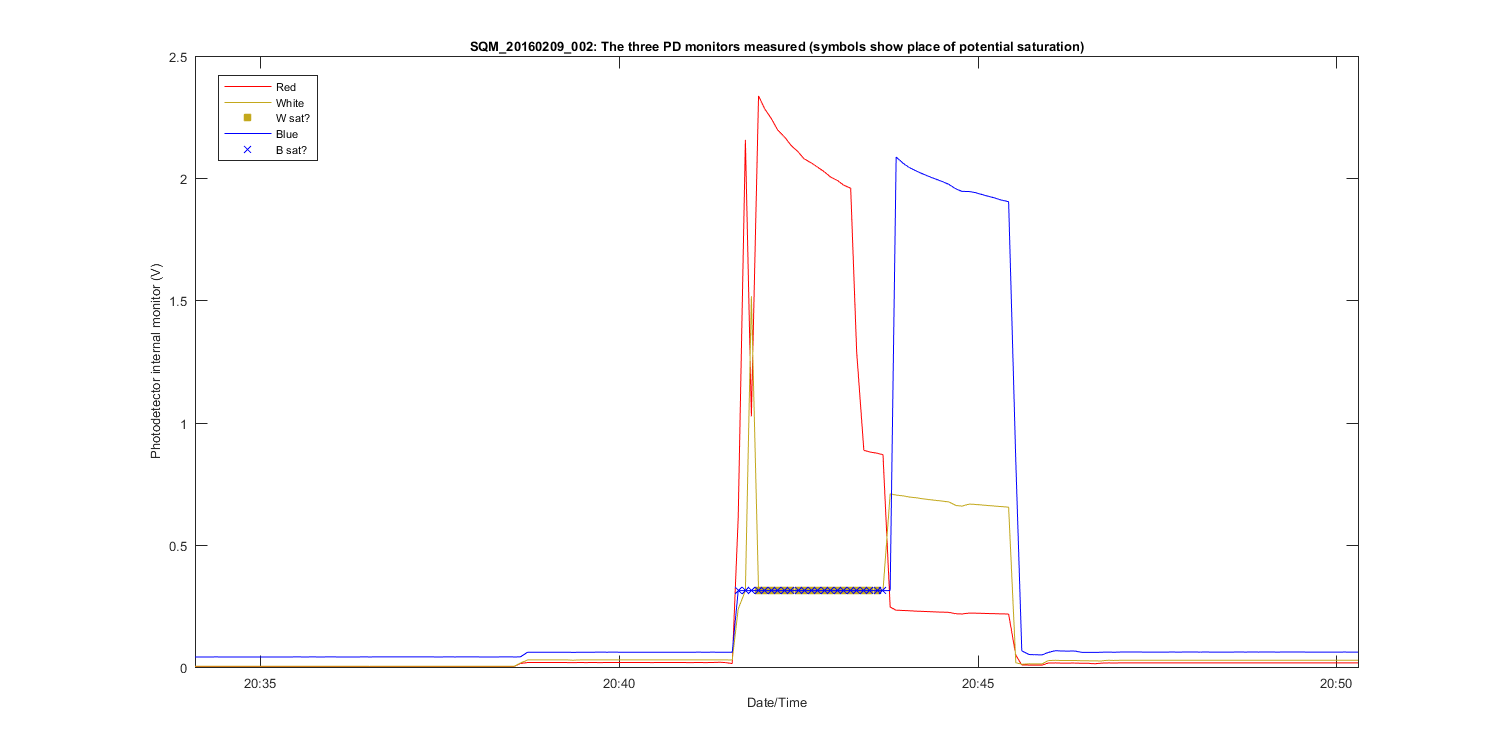

Red PD (max value): 2.337: #of possible satureated values 0
White PD (max value): 1.5172: #of possible satureated values 19
Blue PD (max value): 2.0866: #of possible satureated values 23

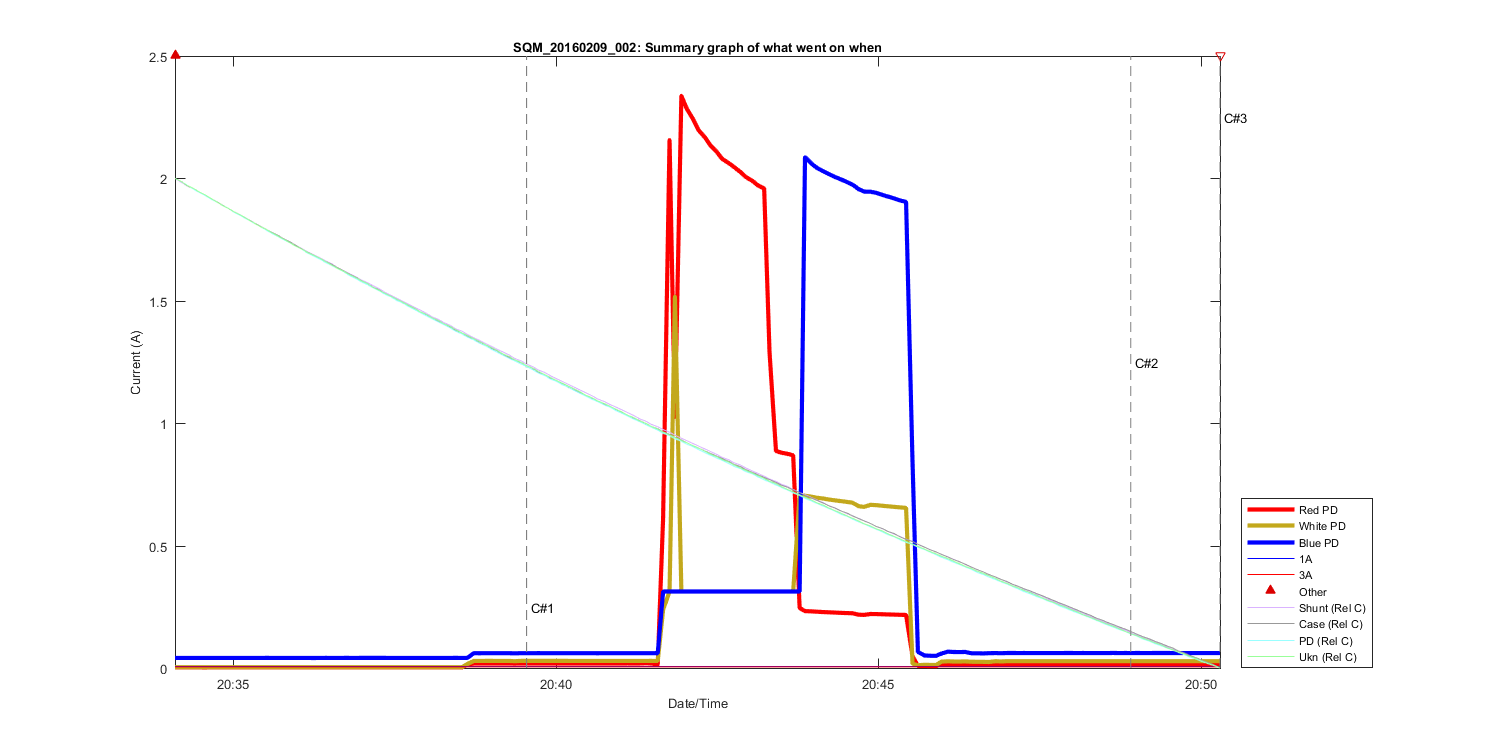

Figure 1
Summary Graph showing all measurements taken in this file, including auxilliary temperature measurements and comments. The text C# shows what time in the file the comments (shown above where made). The triangles at the top of the figure shows then a DUT (Device under test) was placed in front of the SQM and removed.
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
