SQM file

SQM file Header information
Description	Value or Code
Cruise_Name:, Vaux(12,:)	NIST
Cruise_Number	2016-001
Investigator:: Vaux(16,:)	Carol Johnson
Location_of_Measurement: Vaux(17,:)	NIST B019_221
Purpose: Vaux(18,:)	Testing
MOBY_NET_Sequence_Position: Vaux(20,:)	Calibration Facility
Ambient_Air_Temp (deg C)	24.5
Relative_Humidity (%)	26.2
#_of_Levels	1
Time_Step (sec)	10
Initial lamp state: Vaux(40,:)	All Off
Time_adjustment_to_GMT	0
Time_of_Last_Servicing	20151218
SQM_120VAC_On	20161205.200400
SQM_Off_to_Standby	20161205.200532
SQM_Standby_to_Off	20161205.221359
SQM_120VAC_Off	20161205.221420
Lamp 1 A burn hours	NaN
Lamp 3 A burn hours	2.1228
DAQ_Program_Version	0
File Format Version	2
DAQ_Computer: Vaux(60,:)	EOS EQUIP 13
DAQ_Program_Name: Vaux(61,:)	SQM Monitor_2.0.vi

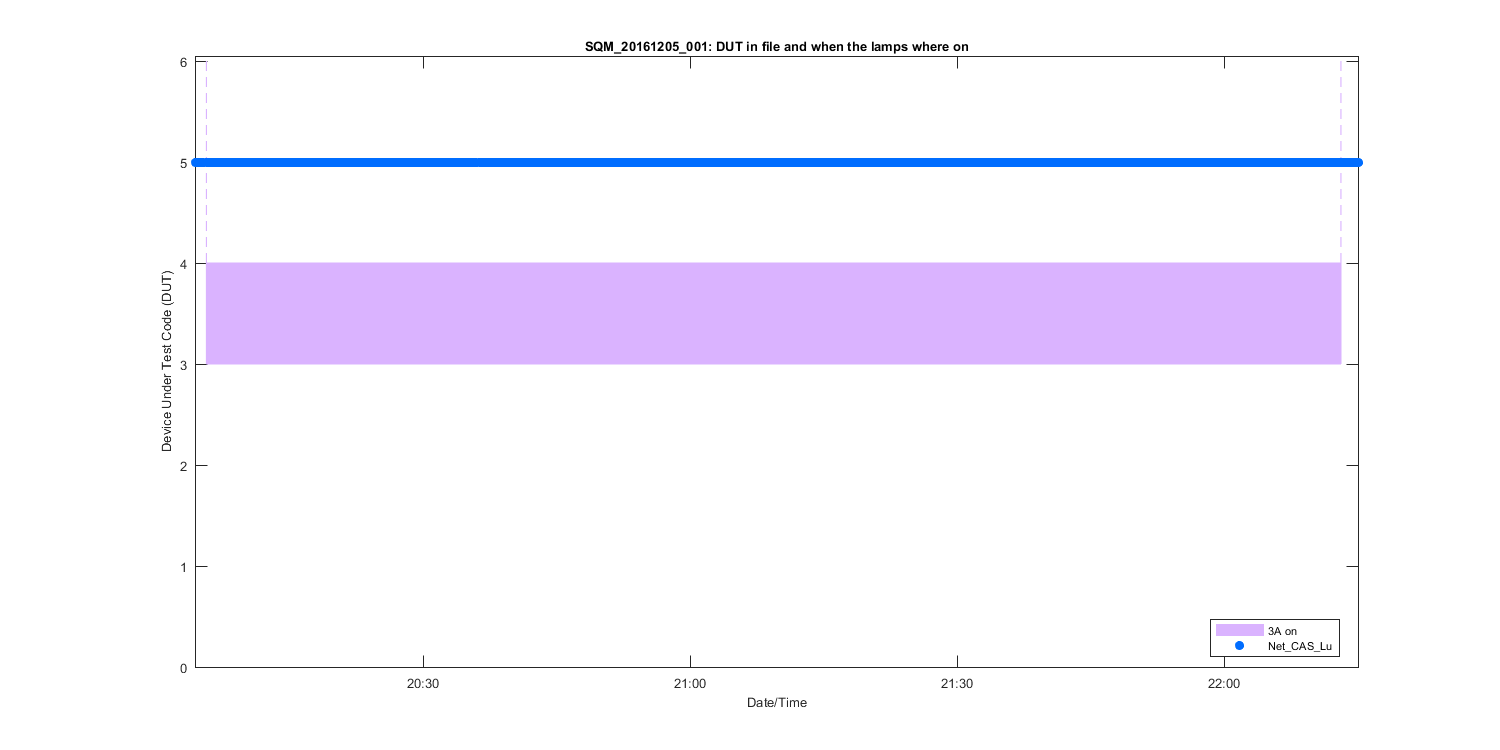

All Devices Under Test in the DUT column in DATA: DUT_Net_CAS_Lu

ASCII SQM file data: SQM_20161205_001.txt

ASCII SQM file data: PDF log file

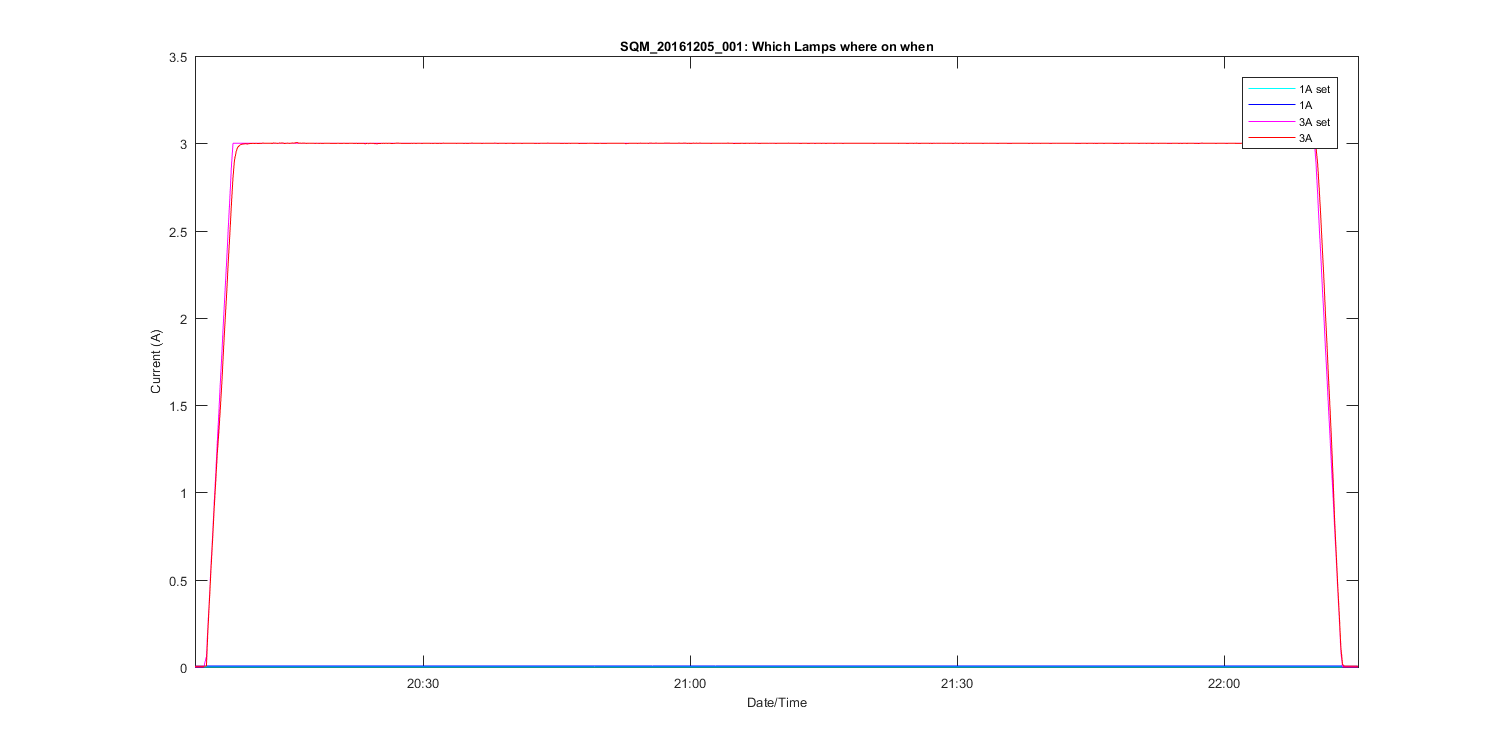

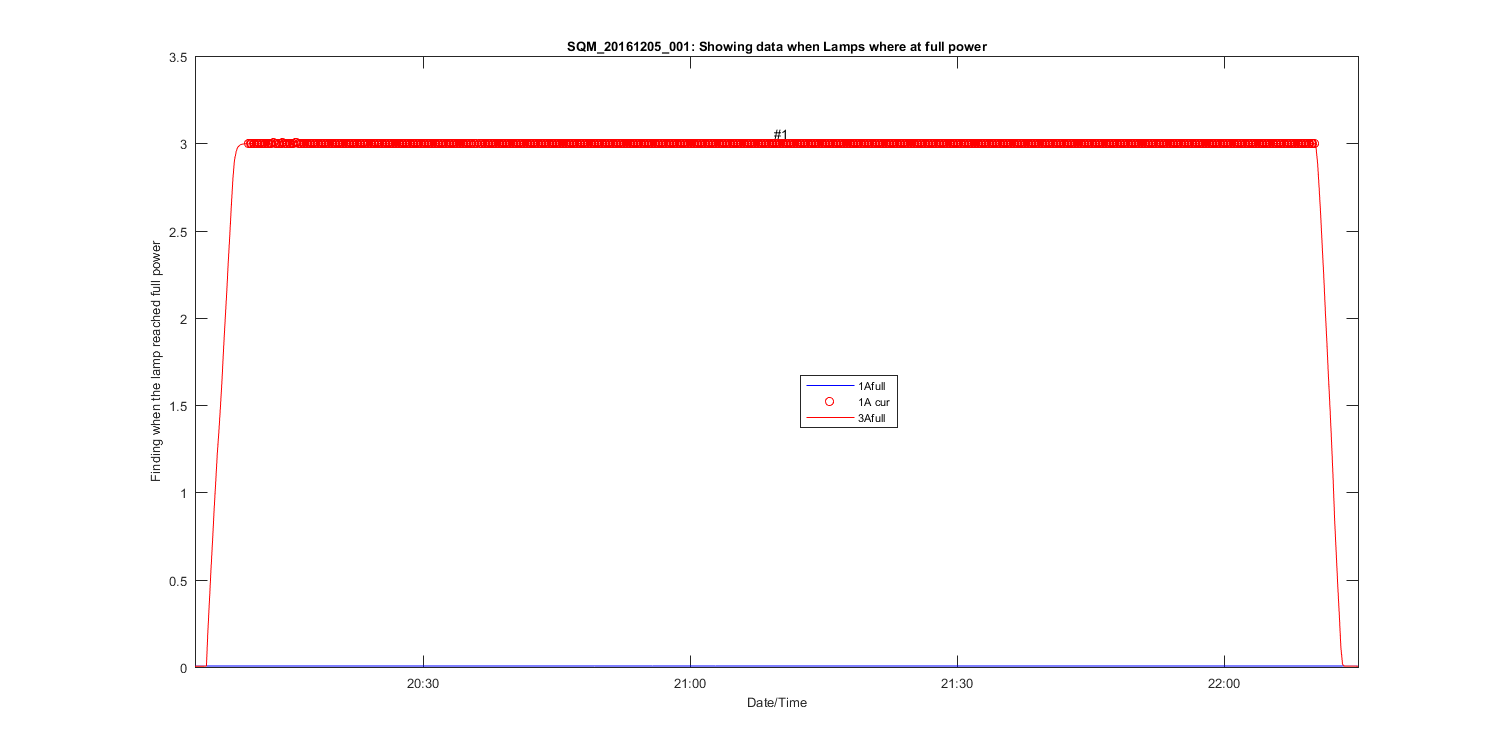

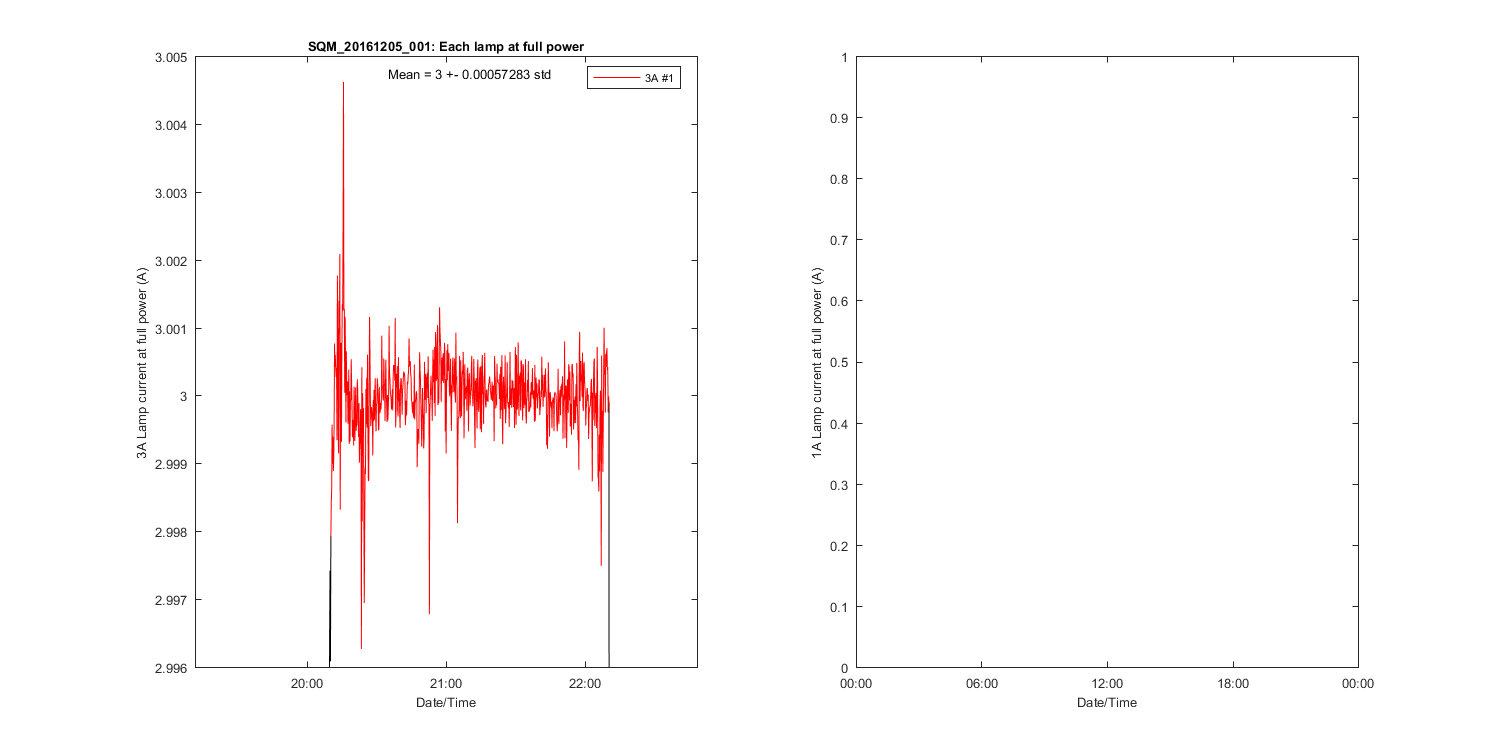

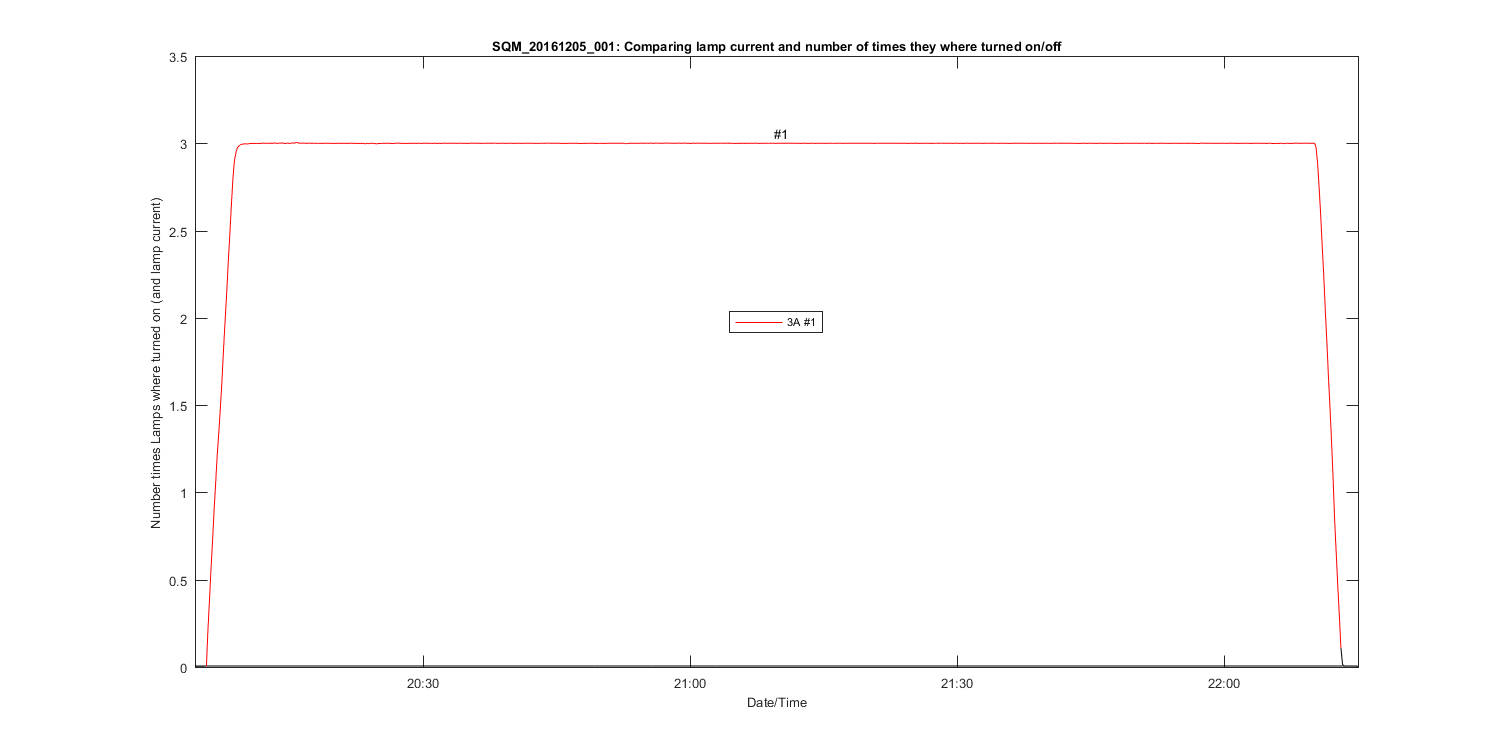

1A and 3A Lamp information: Gives stats for each lamp and each time it was turned on. All the values are for when the lamp was at full power.
Lamp	On/Off #	N	Time on (hrs)	Mean (meas./set)	std	%std
Lamp 3A	1	683	1.9944	3 / 3	0.00057283	0.019094

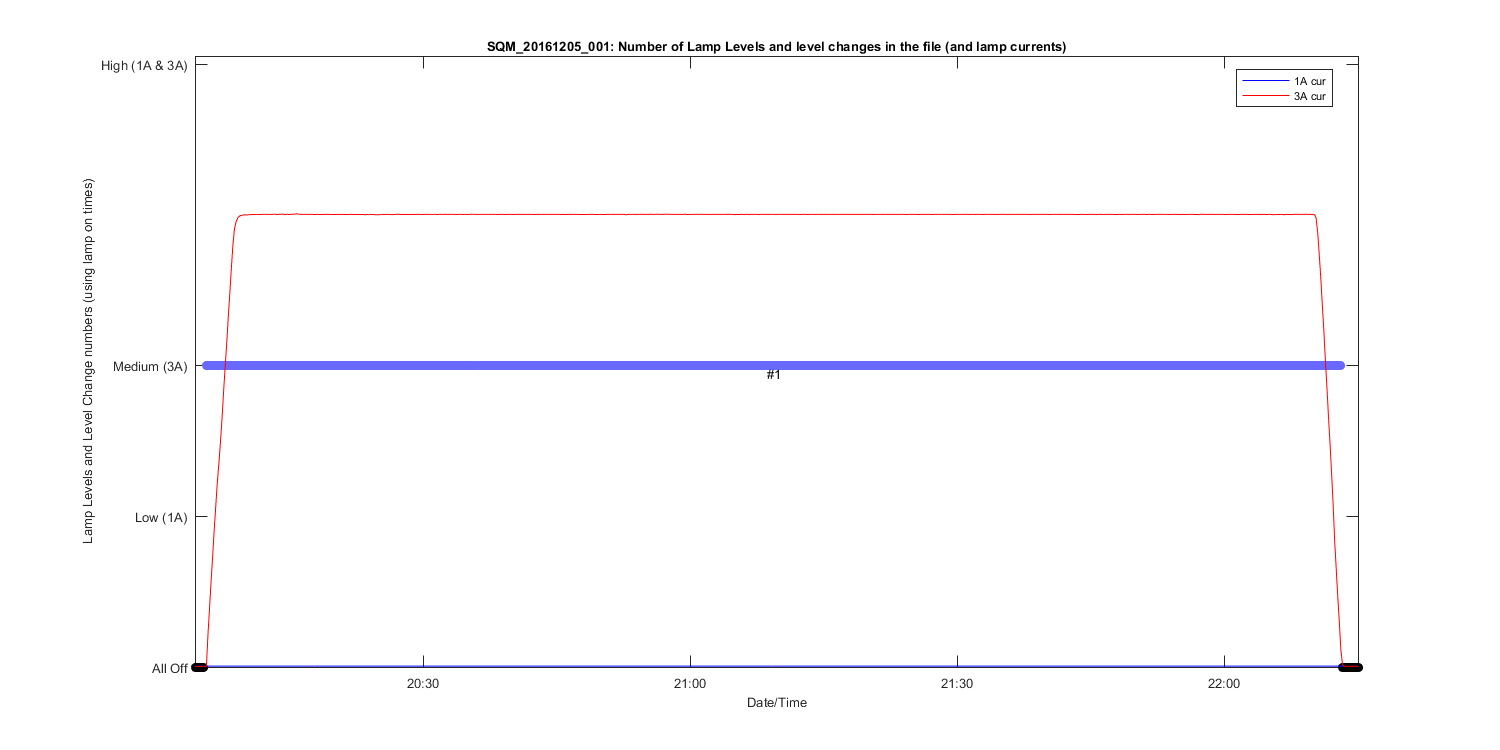

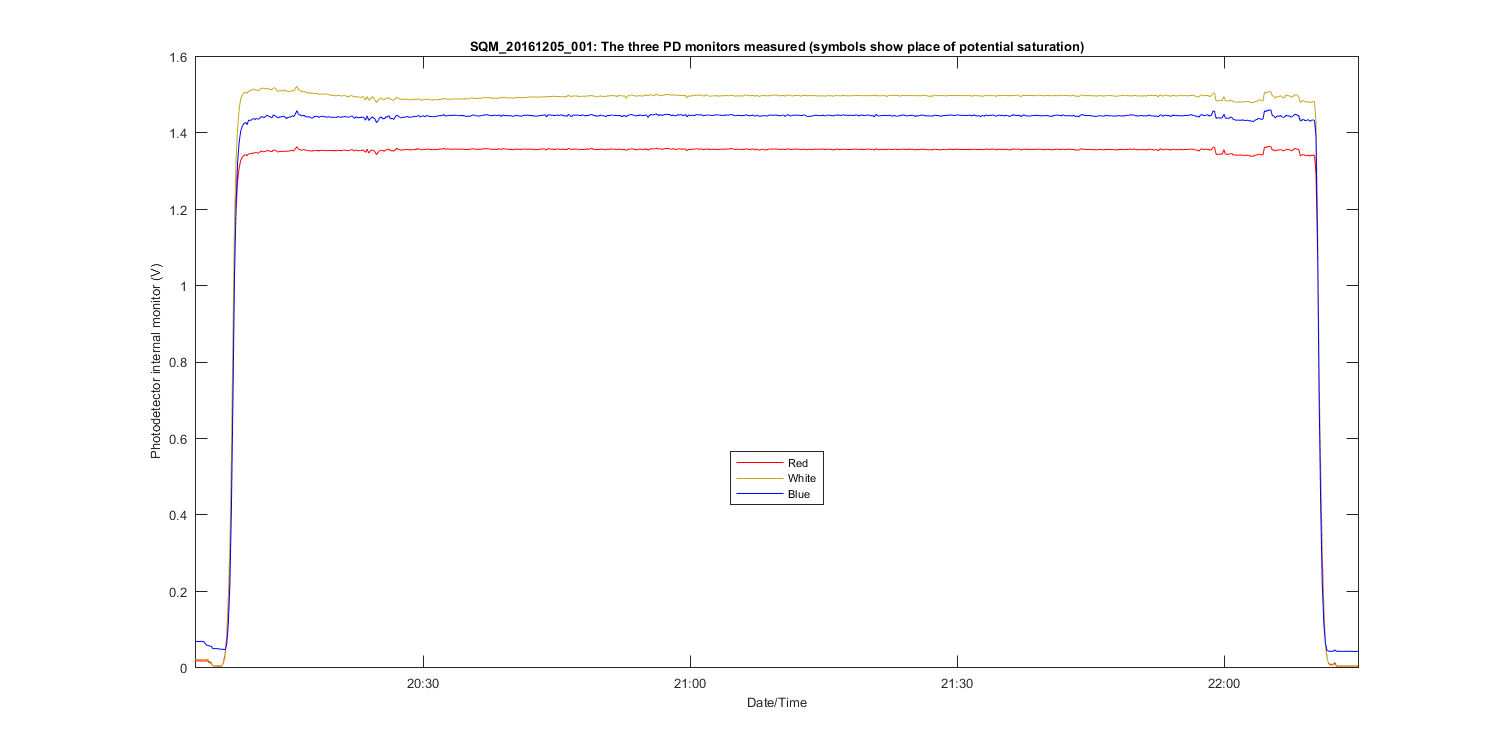

Photodetector internal monitor (V) during lamp level changes : Gives stats when the lamp level changed but only when the lamp was at full power.
Level	PD internal monitor (V)	Level Change #	Mean	std	%std
Medium (3A)	Red	1	1.3541	0.0039455	0.29137
Medium (3A)	White	1	1.4948	0.00621	0.26394
Medium (3A)	Blue	1	1.4429	0.0038156	0.27344

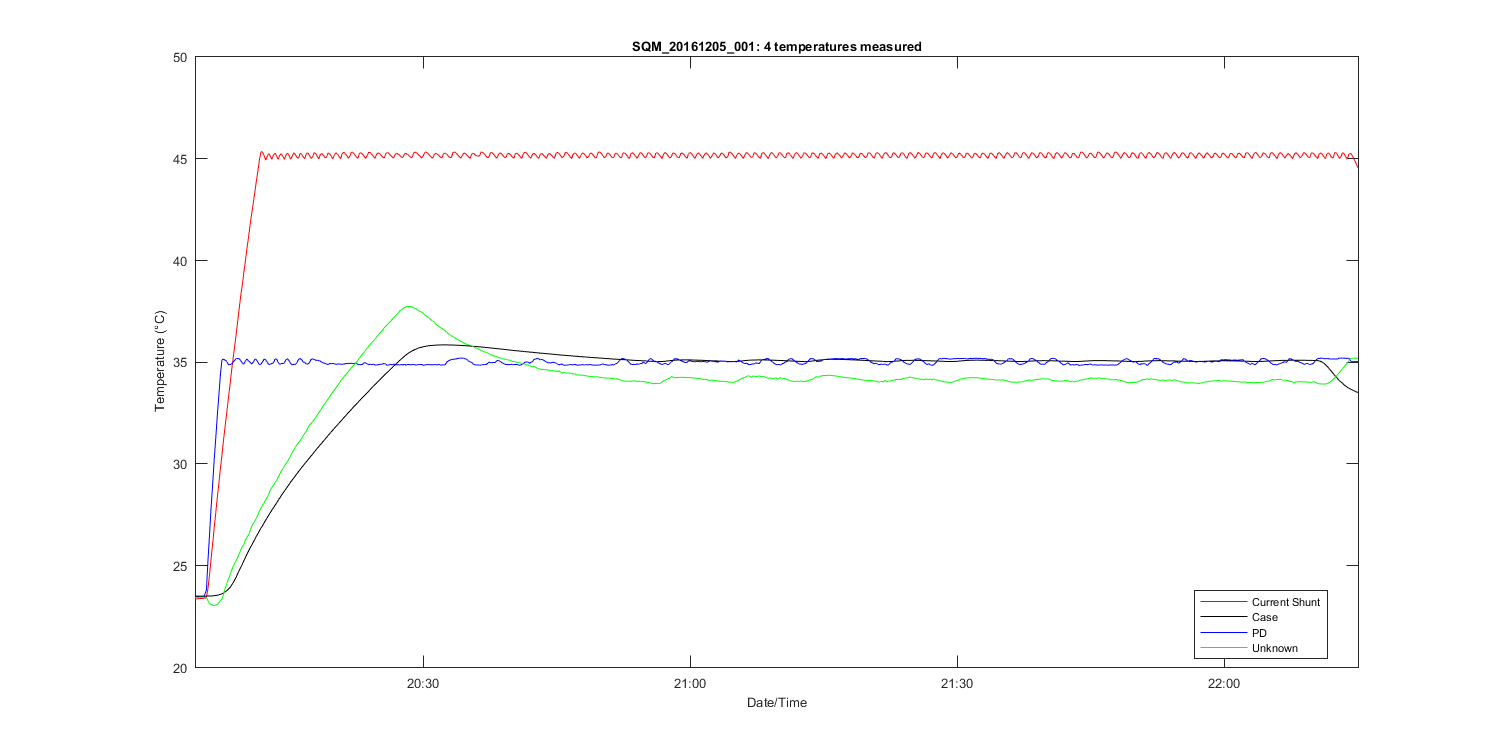

Temperature (C) during lamp level changes : Gives stats when the lamp level changed but only when the lamp was at full power.
Level	Temperature (C)	Level Change #	Mean	std	%std
Medium (3A)	PD	1	34.9673	0.11091	0.31717

Red PD (max value): 1.3631: #of possible satureated values 0
White PD (max value): 1.5206: #of possible satureated values 0
Blue PD (max value): 1.4591: #of possible satureated values 0
