SQM file

SQM file Header information
Description	Value or Code
Cruise_Name:, Vaux(12,:)	NIST
Cruise_Number	2016-001
Investigator:: Vaux(16,:)	Carol Johnson
Location_of_Measurement: Vaux(17,:)	NIST B019_221
Purpose: Vaux(18,:)	Testing
MOBY_NET_Sequence_Position: Vaux(20,:)	Calibration Facility
Ambient_Air_Temp (deg C)	24.6
Relative_Humidity (%)	28
#_of_Levels	1
Time_Step (sec)	10
Initial lamp state: Vaux(40,:)	All Off
Time_adjustment_to_GMT	0
Time_of_Last_Servicing	20151218
SQM_120VAC_On	20161206.202600
SQM_Off_to_Standby	20161206.202948
SQM_Standby_to_Off	20161206.223300
SQM_120VAC_Off	20161206.223400
Lamp 1 A burn hours	1.9761
Lamp 3 A burn hours	2.0111
DAQ_Program_Version	0
File Format Version	2
DAQ_Computer: Vaux(60,:)	EOS EQUIP 13
DAQ_Program_Name: Vaux(61,:)	SQM Monitor_2.0.vi

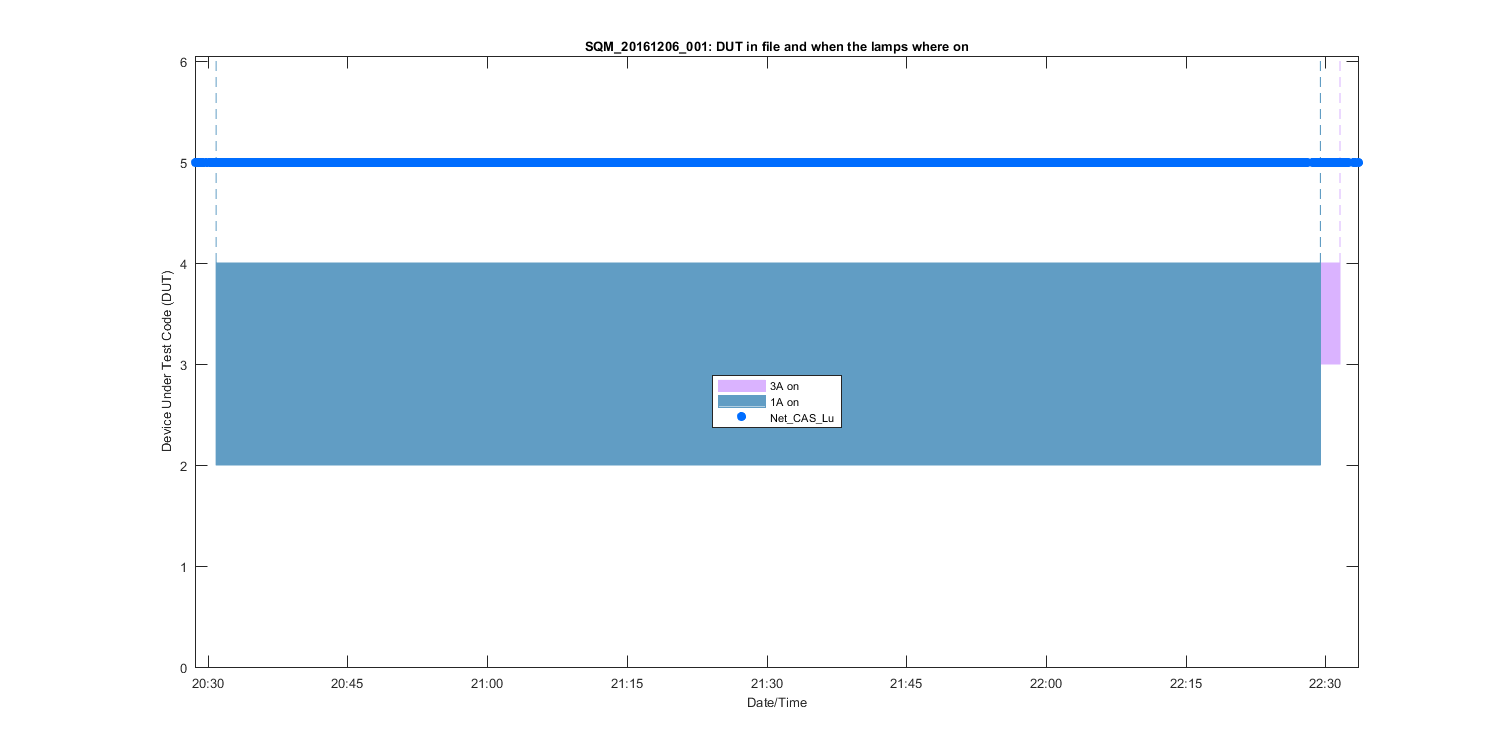

All Devices Under Test in the DUT column in DATA: DUT_Net_CAS_Lu

ASCII SQM file data: SQM_20161206_001.txt

ASCII SQM file data: PDF log file

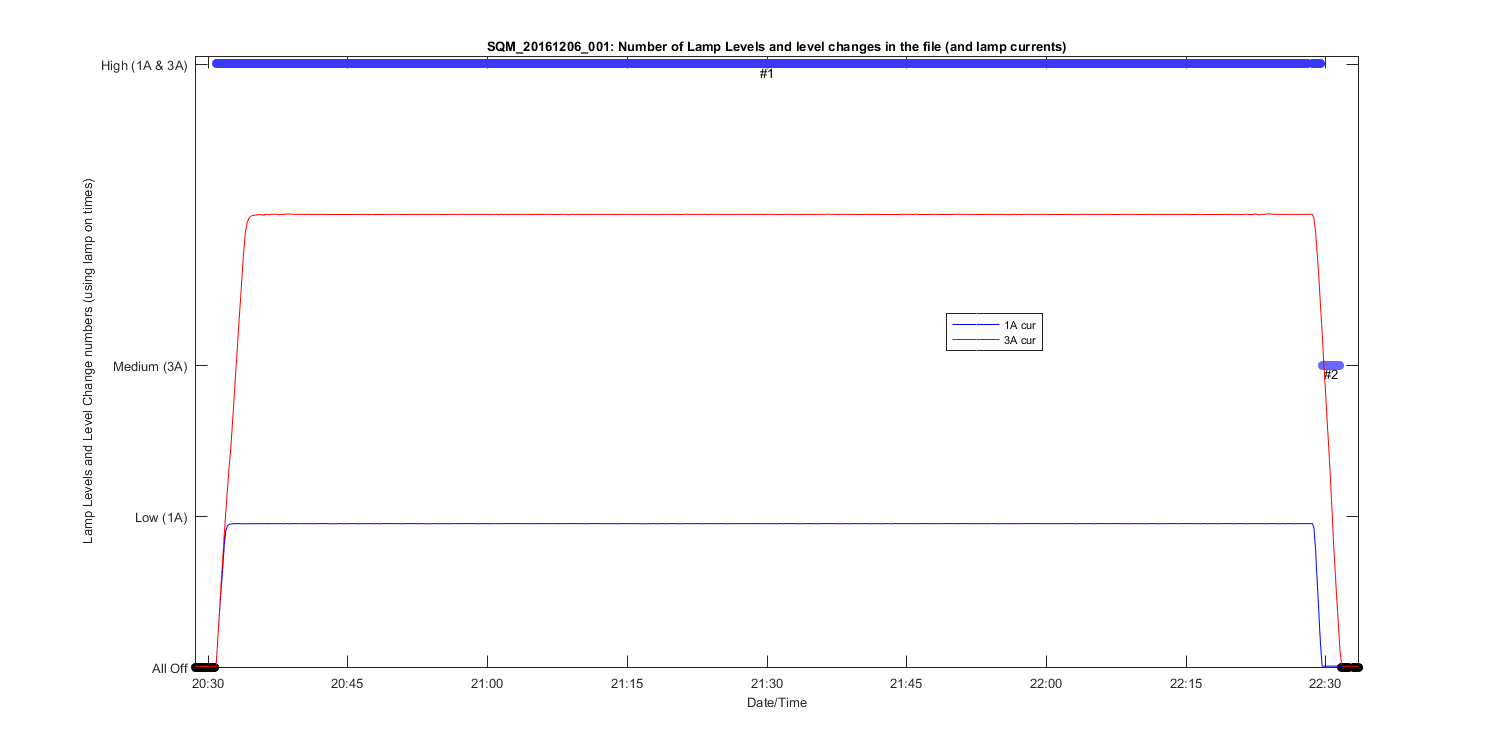

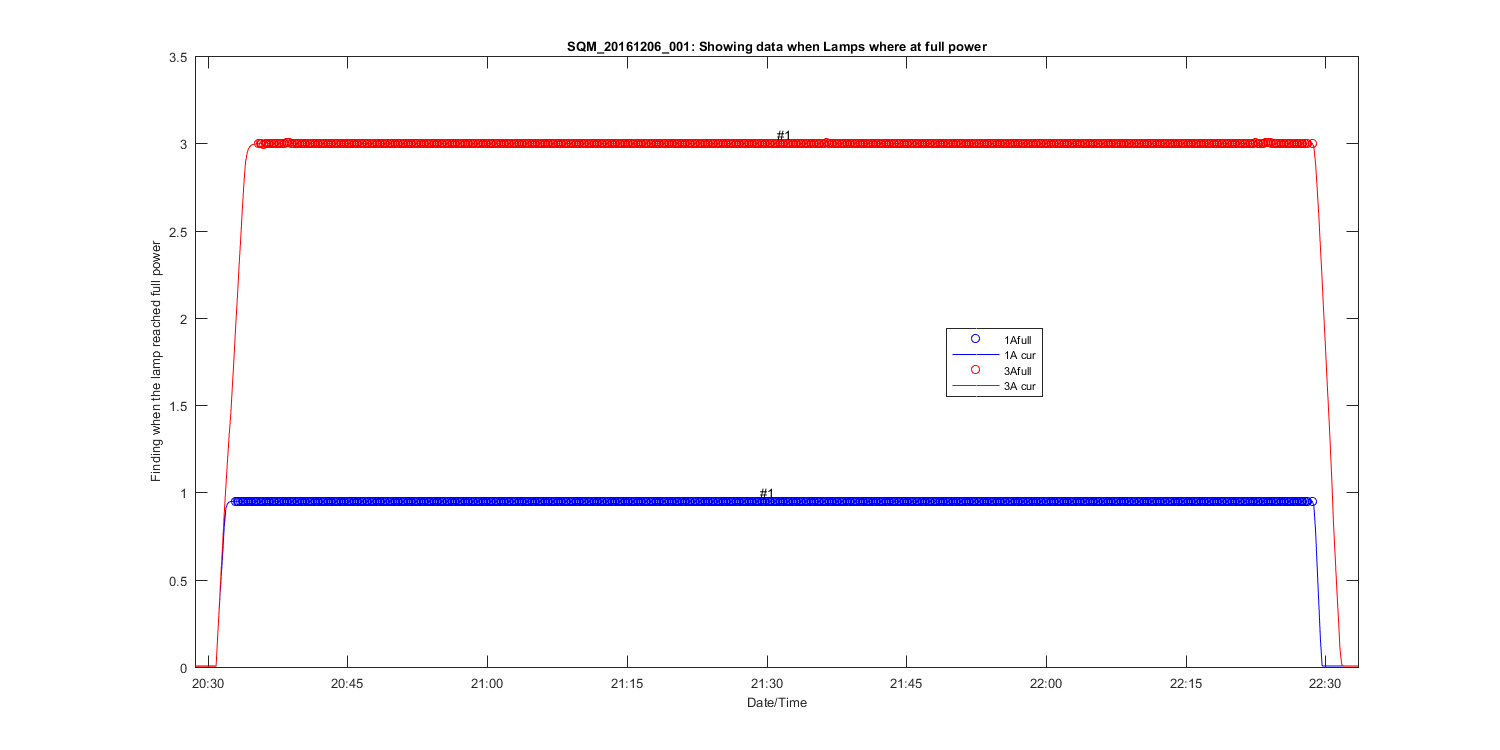

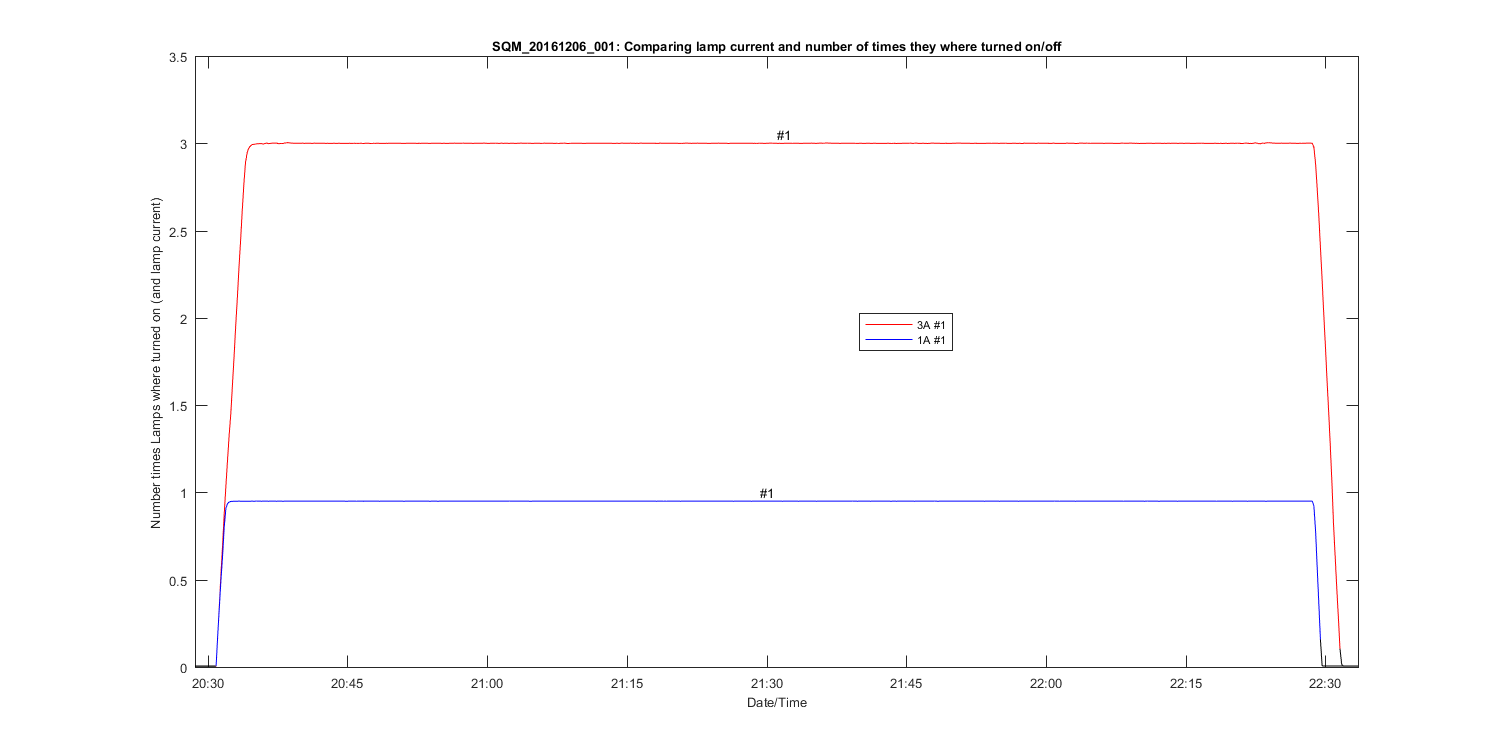

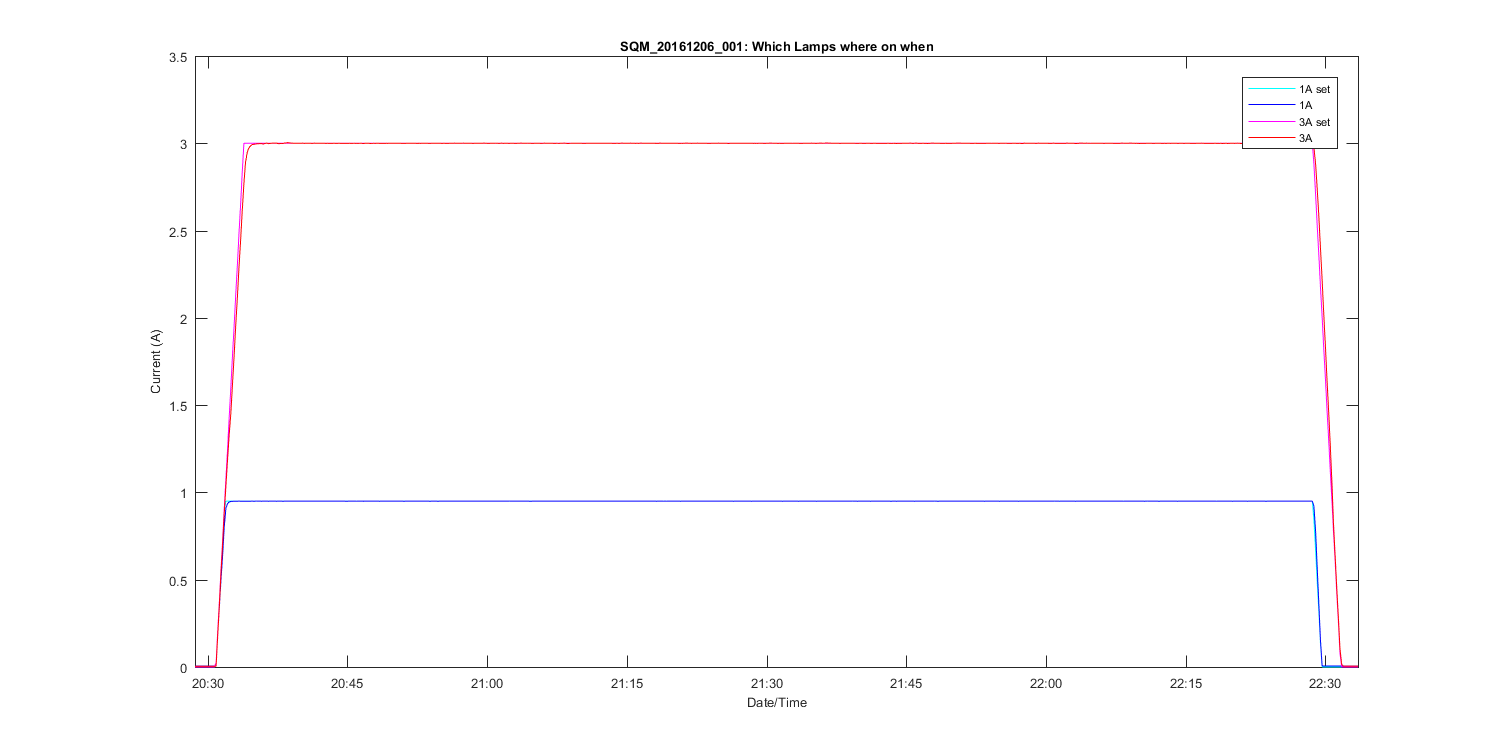

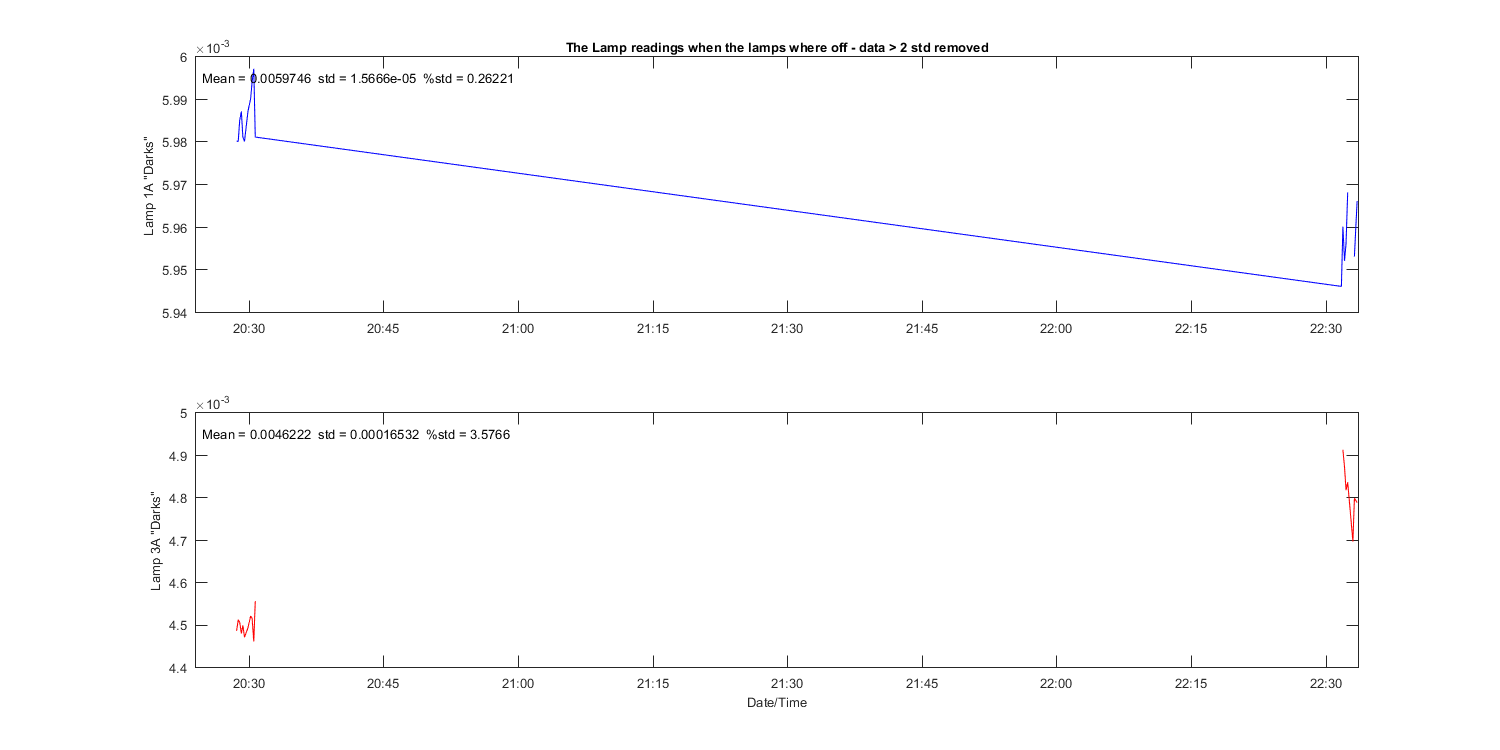

1A and 3A Lamp information: Gives stats for each lamp and each time it was turned on. All the values are for when the lamp was at full power.
Lamp	On/Off #	N	Time on (hrs)	Mean (meas./set)	std	%std
Lamp 1A	1	659	1.9267	0.94999 / 0.95	0.0001281	0.013484
Lamp 3A	1	645	1.8858	3 / 3	0.00065334	0.021778

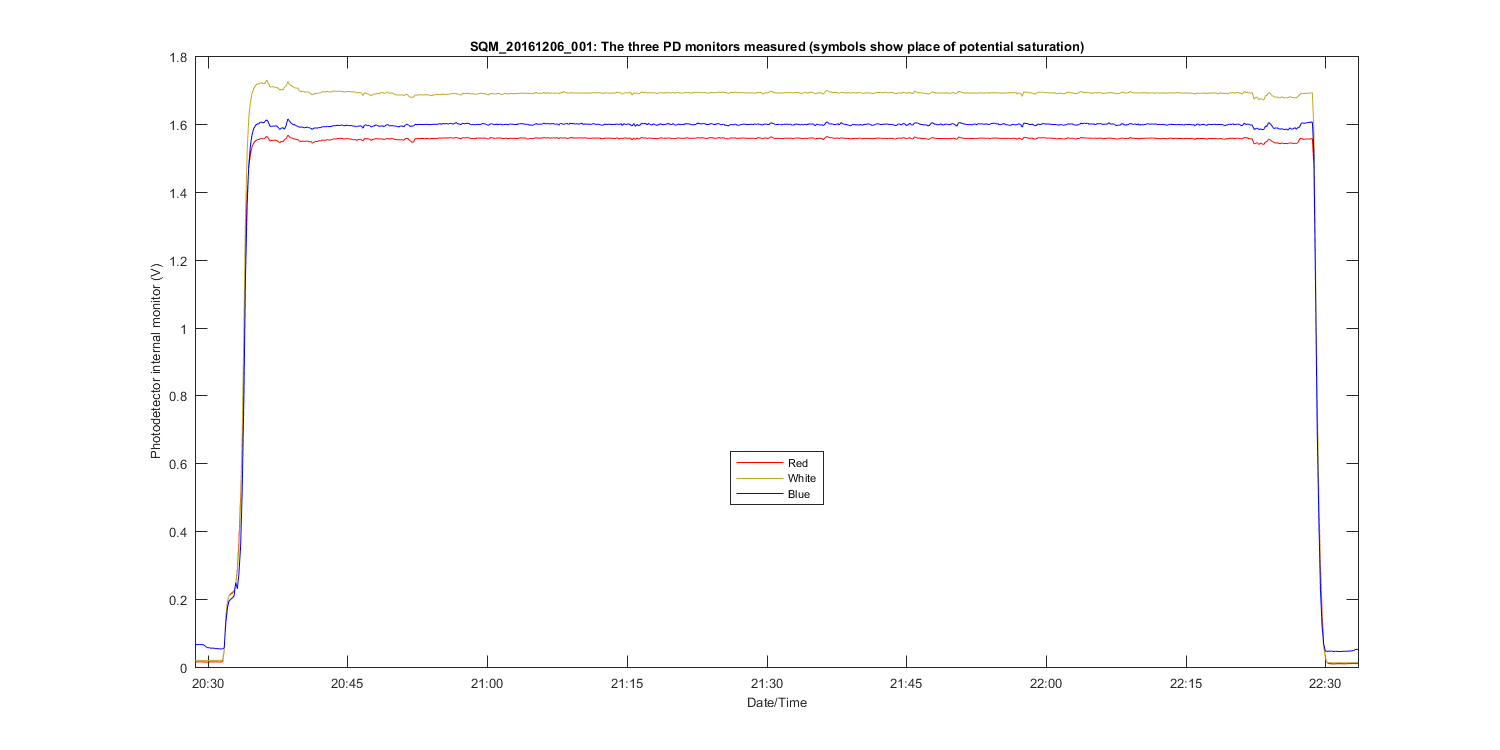

Photodetector internal monitor (V) during lamp level changes : Gives stats when the lamp level changed but only when the lamp was at full power.
Level	PD internal monitor (V)	Level Change #	Mean	std	%std
High (1A & 3A)	Red	1	1.5458	0.10373	6.7102
High (1A & 3A)	White	1	1.6795	0.11655	6.1761
High (1A & 3A)	Blue	1	1.5853	0.11684	6.5428

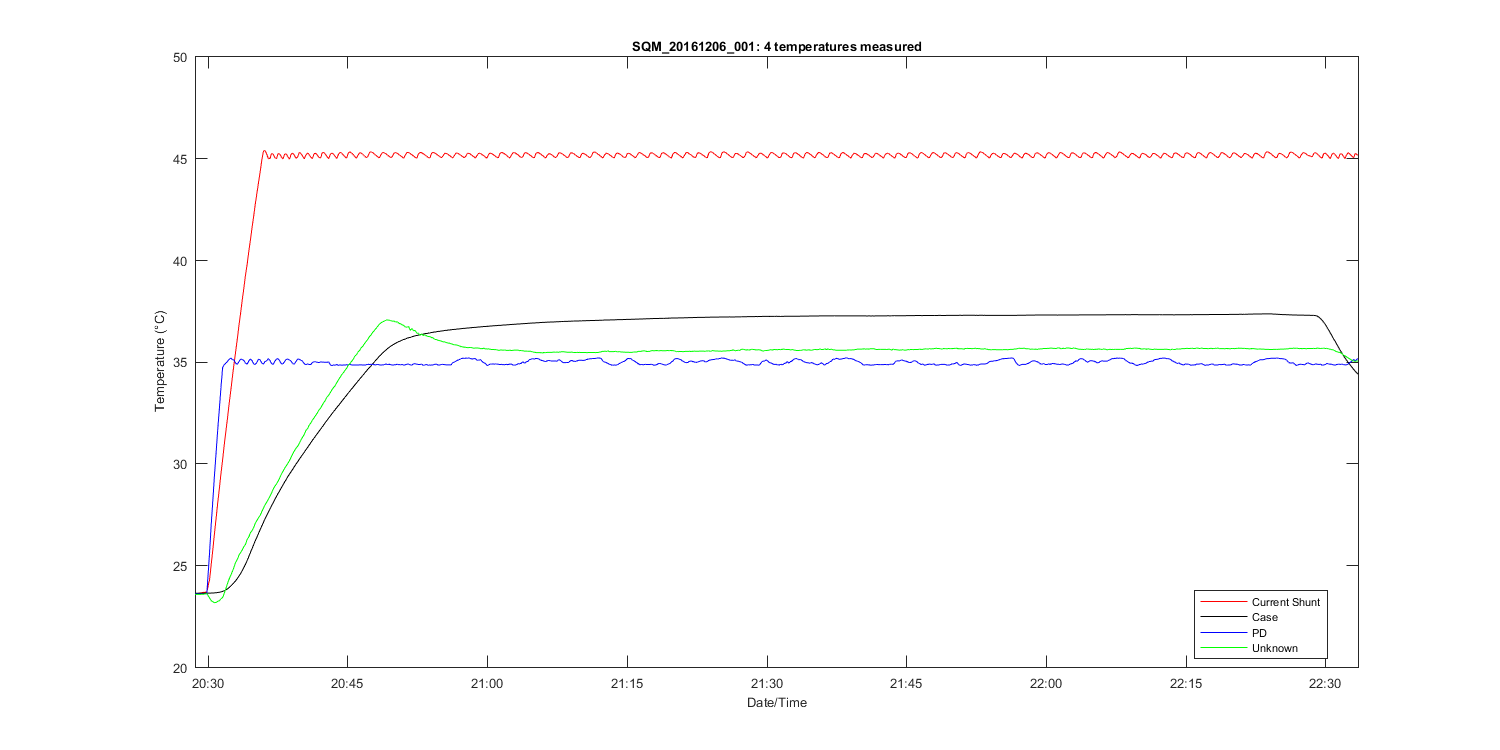

Temperature (C) during lamp level changes : Gives stats when the lamp level changed but only when the lamp was at full power.
Level	Temperature (C)	Level Change #	Mean	std	%std
High (1A & 3A)	PD	1	34.9538	0.11414	0.32654

Red PD (max value): 1.5666: #of possible satureated values 0
White PD (max value): 1.7295: #of possible satureated values 0
Blue PD (max value): 1.6141: #of possible satureated values 0
