| Description | Value or Code |
|---|---|
| Cruise_Name:, Vaux(12,:) | NIST |
| Cruise_Number | 2017-003 |
| Investigator:: Vaux(16,:) | Ken Voss |
| Location_of_Measurement: Vaux(17,:) | KVoss Lab |
| Purpose: Vaux(18,:) | Stability Measurement |
| MOBY_NET_Sequence_Position: Vaux(20,:) | Calibration Facility |
| Ambient_Air_Temp (deg C) | 23.6 |
| Relative_Humidity (%) | 63 |
| #_of_Levels | 3 |
| Time_Step (sec) | 10 |
| Initial lamp state: Vaux(40,:) | All Off |
| Time_adjustment_to_GMT | 0 |
| Time_of_Last_Servicing | 20151218 |
| SQM_120VAC_On | 20171205.143600 |
| SQM_Off_to_Standby | 20171205.143951 |
| SQM_Standby_to_Off | 20171205.161200 |
| SQM_120VAC_Off | 20171205.161500 |
| Lamp 1 A burn hours | 0.69194 |
| Lamp 3 A burn hours | 0.65111 |
| DAQ_Program_Version | 19 |
| File Format Version | 2 |
| DAQ_Computer: Vaux(60,:) | EOS EQUIP 13 |
| DAQ_Program_Name: Vaux(61,:) | SQM Monitor_2.1.vi |
|
All Devices Under Test in the DUT column in DATA: DUT_White_Fiducial DUT_Black_Fiducial DUT_Net_CAS_Lu |
|
ASCII SQM file data: SQM_20171205_001.txt
ASCII SQM file data: PDF log file
| Lamp | On/Off # | N | Time on (hrs) | Mean (meas./set) | std | %std |
|---|---|---|---|---|---|---|
| Lamp 1A | 1 | 223 | 0.64833 | 0.94998 / 0.95 | 0.00013812 | 0.01454 |
| Lamp 1A | 2 | 0 | NaN | NaN / NaN | NaN | NaN |
| Lamp 3A | 1 | 185 | 0.5375 | 3 / 3 | 0.0010931 | 0.036436 |
| Level | PD internal monitor (V) | Level Change # | Mean | std | %std |
|---|---|---|---|---|---|
| Low (1A) | Red | 1 | 0.31579 | 0.087142 | 27.5951 |
| Low (1A) | White | 1 | 0.30319 | 0.080548 | 28.7417 |
| Low (1A) | Blue | 1 | 0.24232 | 0.046727 | 35.9623 |
| Medium (3A) | Red | 3 | 1.2922 | 0.019621 | 1.5184 |
| Medium (3A) | White | 3 | 1.4319 | 0.021973 | 1.3703 |
| Medium (3A) | Blue | 3 | 1.3766 | 0.017294 | 1.4253 |
| Level | Temperature (C) | Level Change # | Mean | std | %std |
|---|---|---|---|---|---|
| Low (1A) | PD | 1 | 34.9941 | 0.11702 | 0.3344 |
| Medium (3A) | PD | 3 | 35.0129 | 0.11311 | 0.32305 |
Red PD (max value): 1.4046: #of possible satureated values 0
White PD (max value): 1.512: #of possible satureated values 0
Blue PD (max value): 1.4283: #of possible satureated values 0

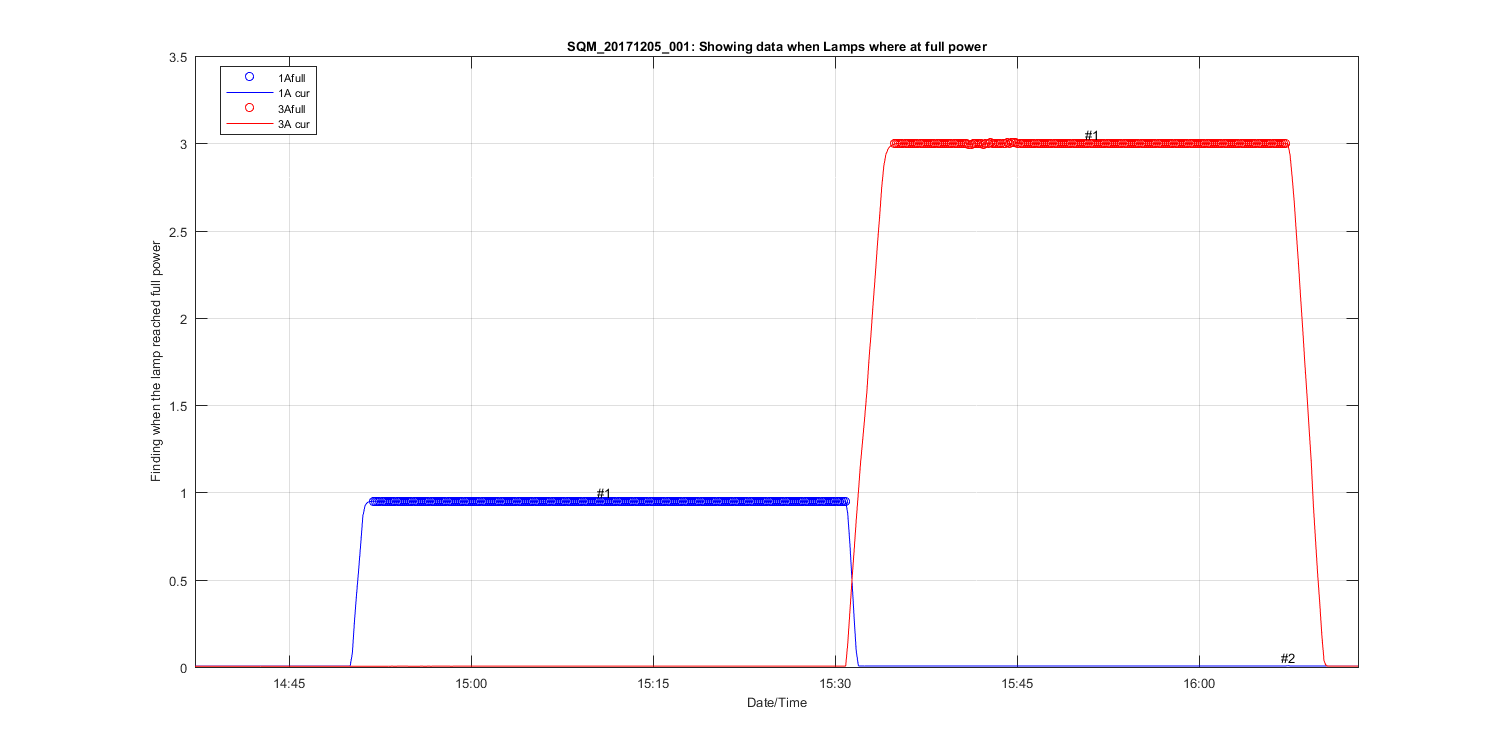

Figure 1

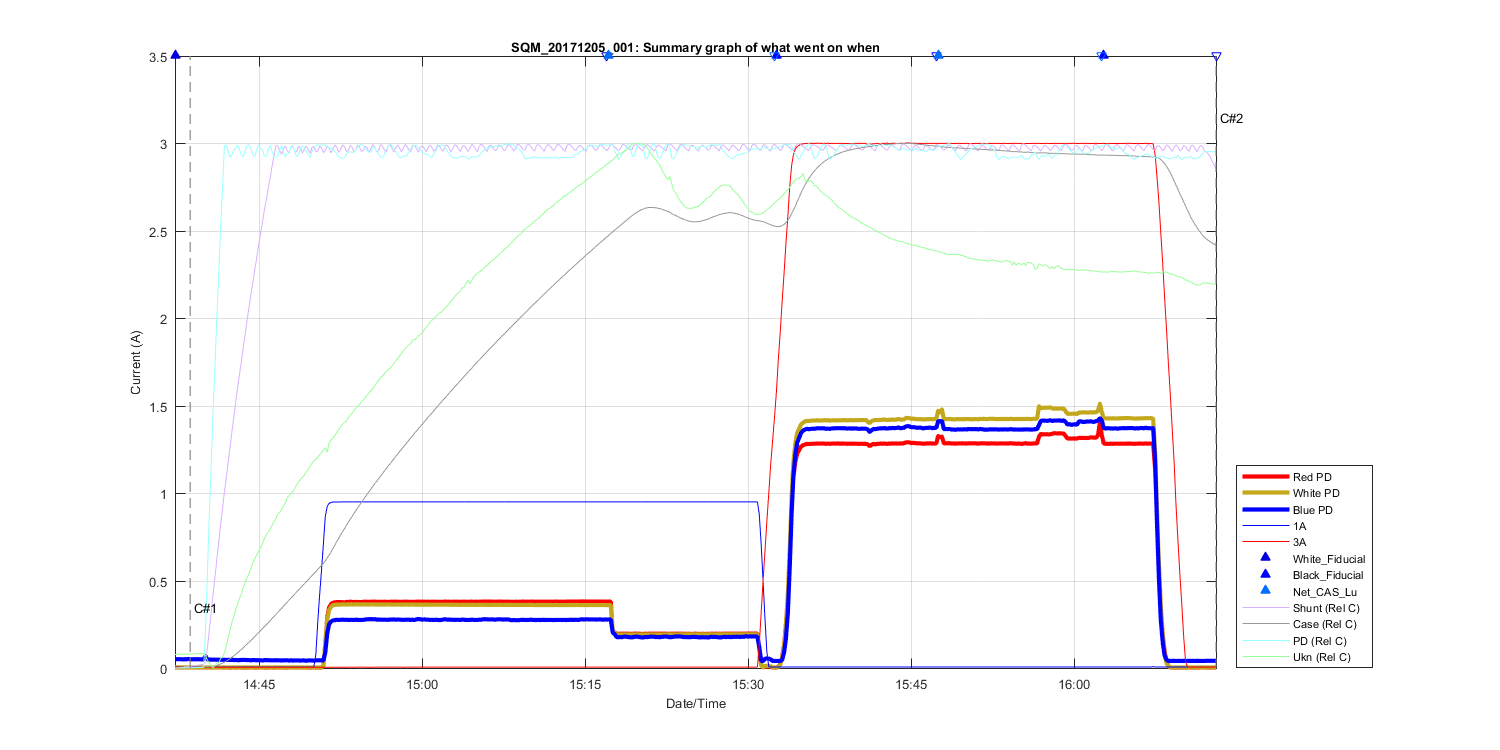

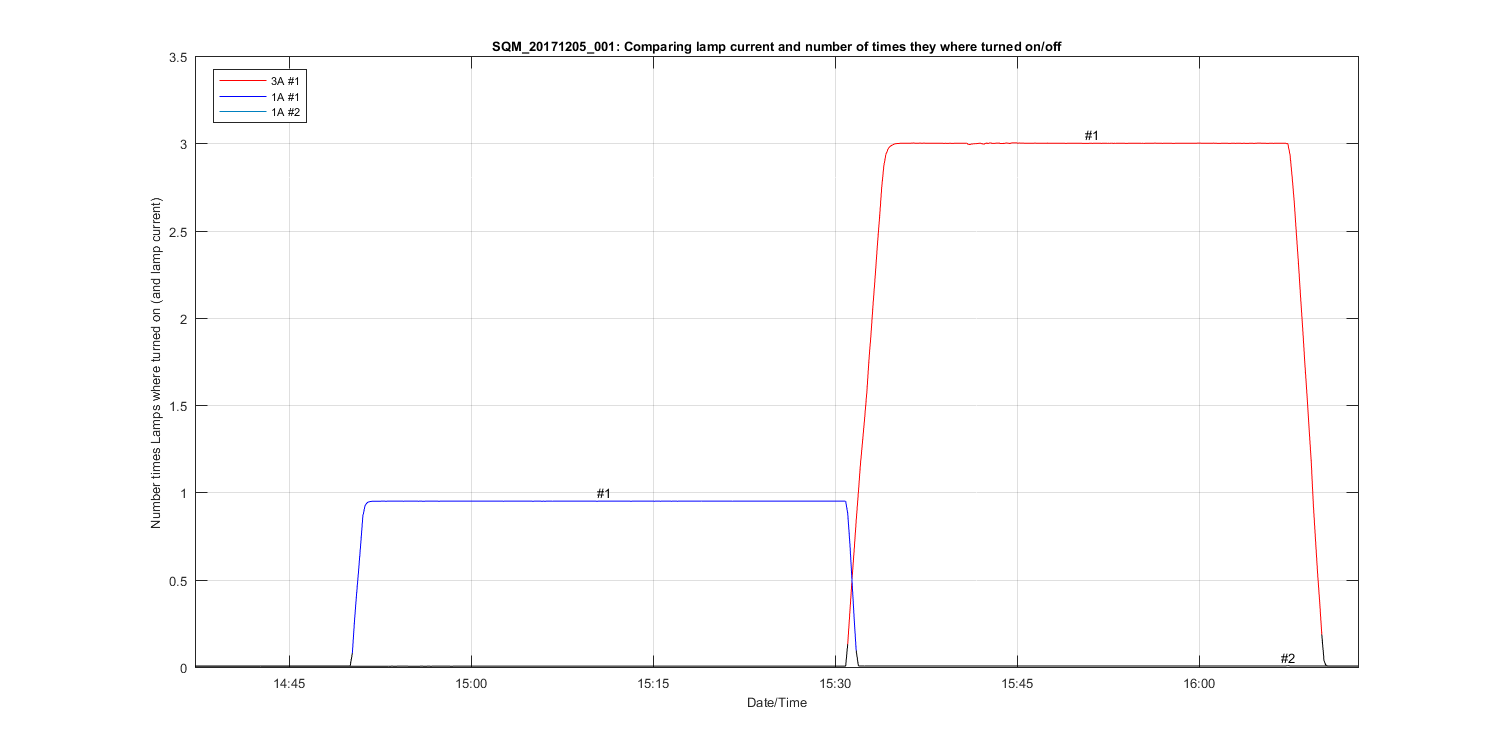

Summary Graph showing all measurements taken in this file, including auxilliary temperature measurements and comments. The text C# shows what time in the file the comments (shown above where made). The triangles at the top of the figure shows then a DUT (Device under test) was placed in front of the SQM and removed.
Figure 2

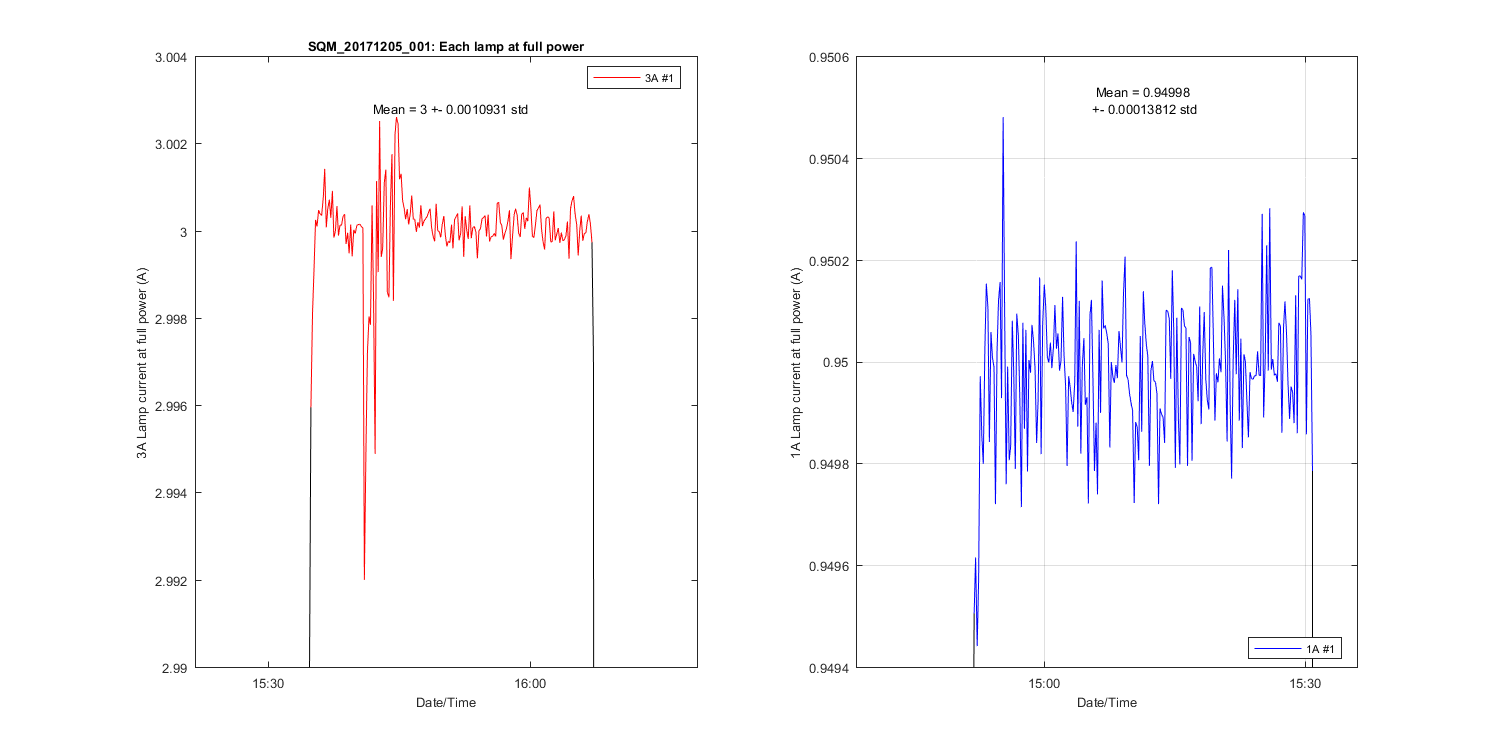

Figure 3

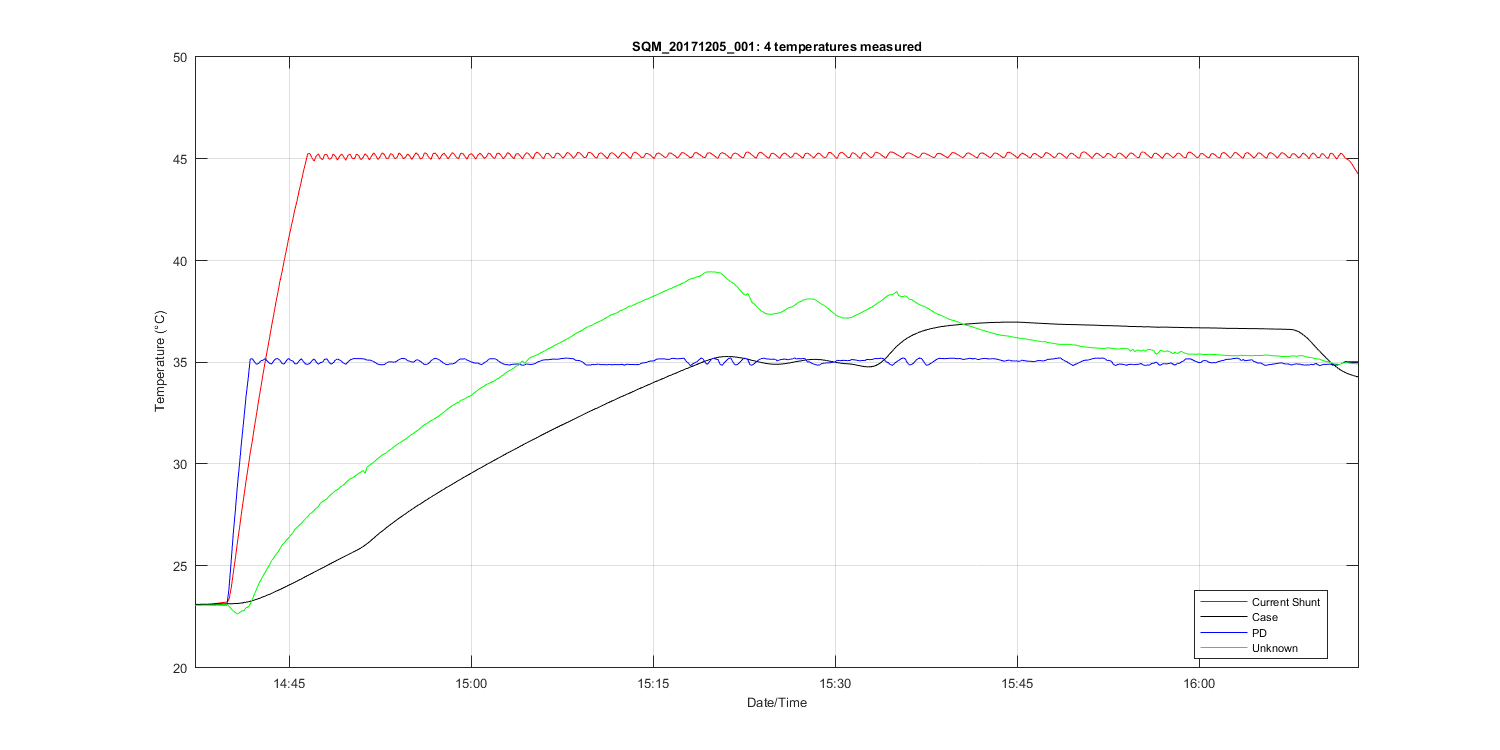

Figure 4

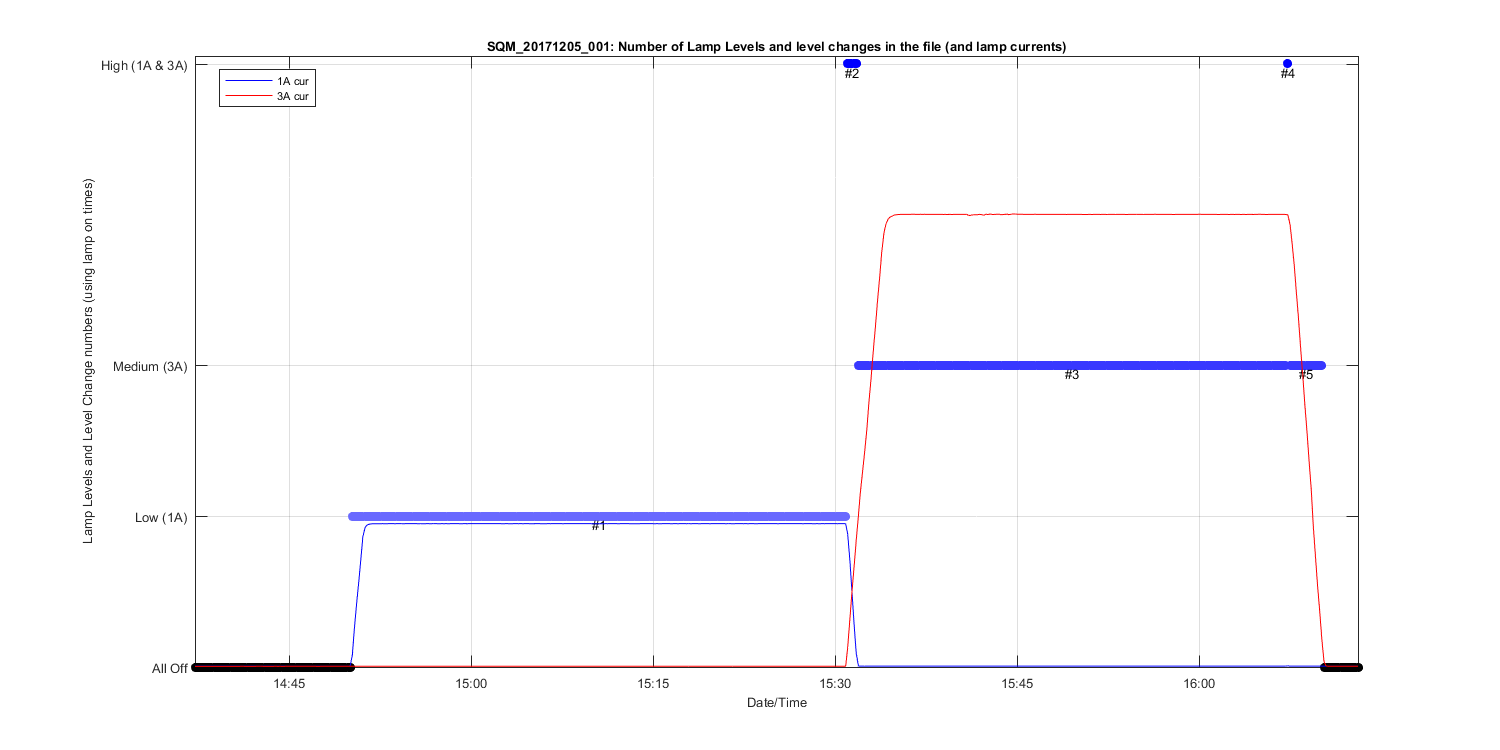

Figure 5

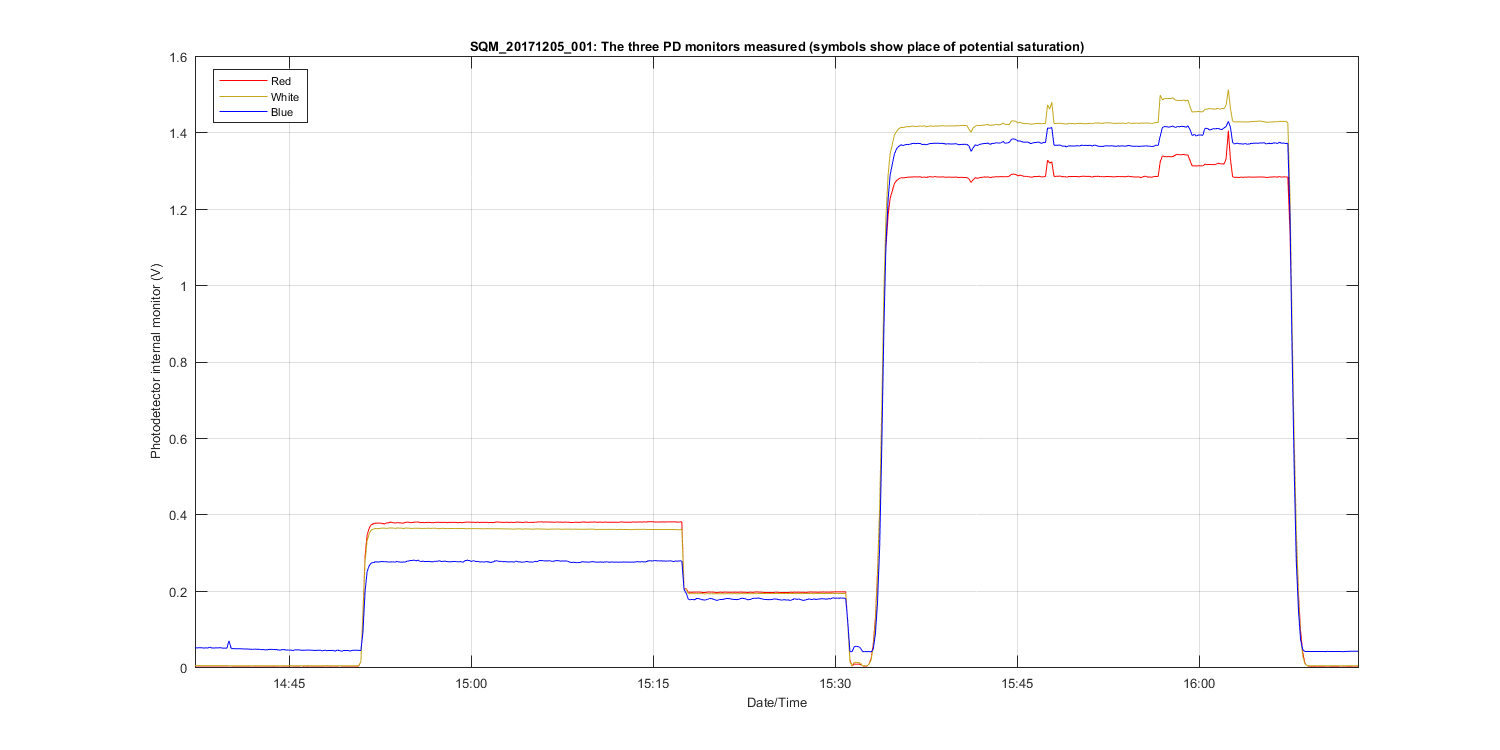

Figure 6

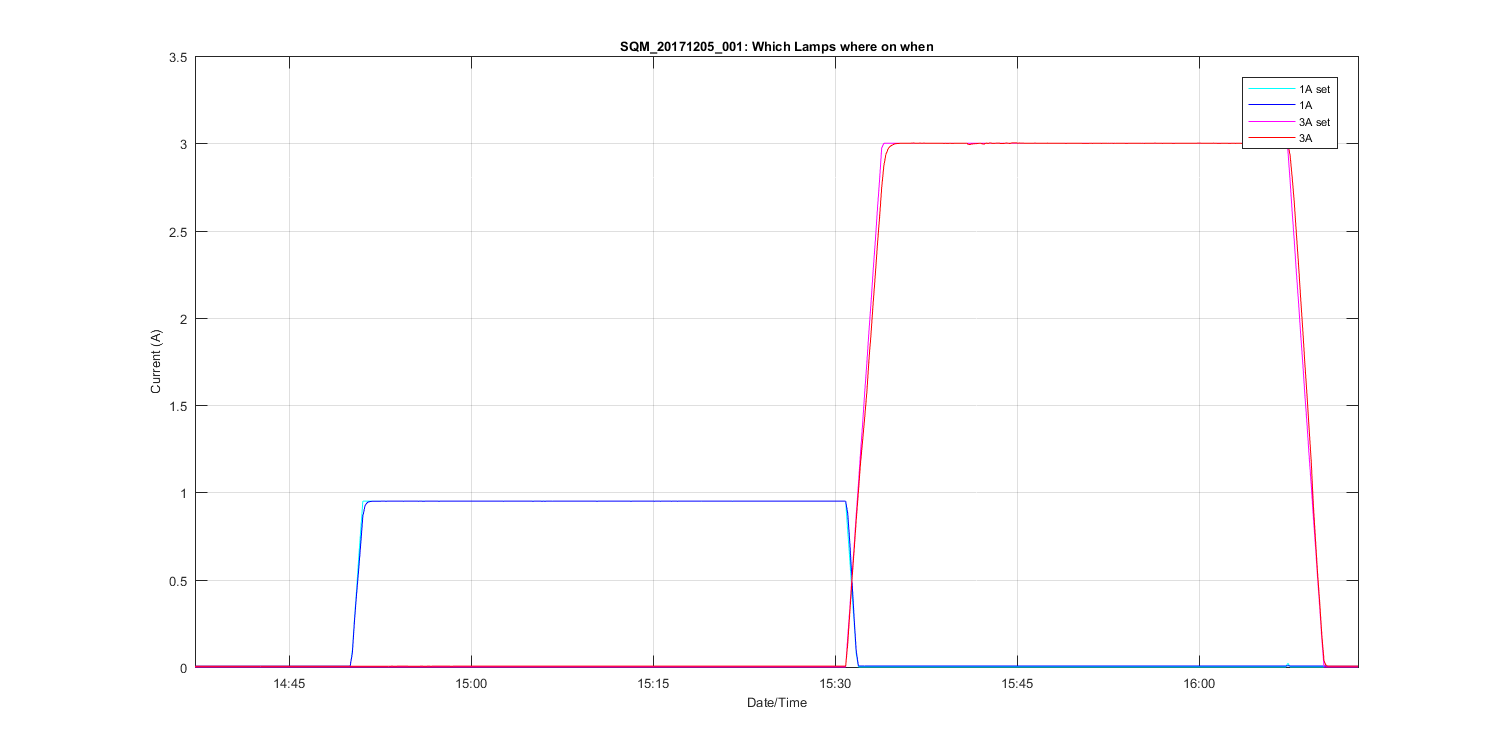

Figure 7

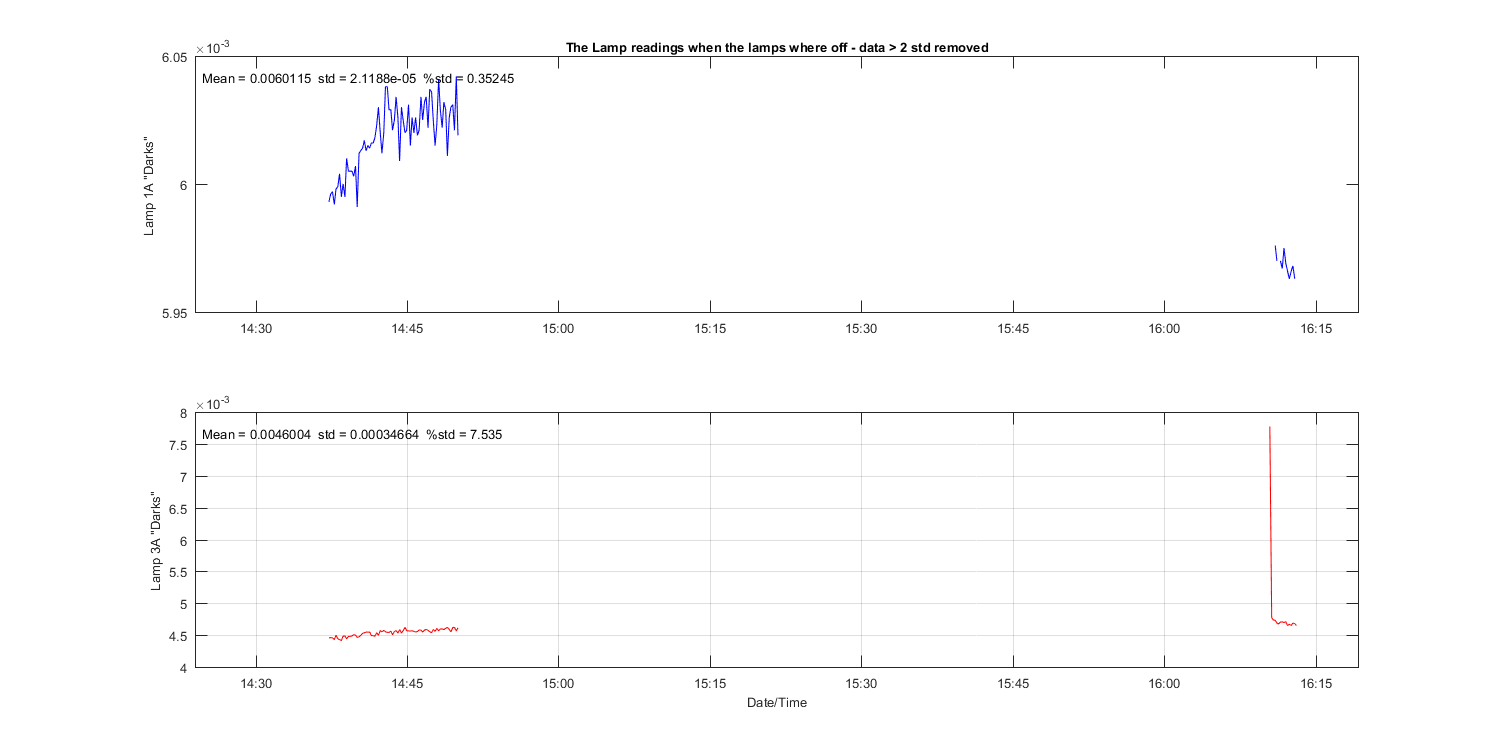

Figure 8
