| Description | Value or Code |
|---|---|
| Cruise_Name:, Vaux(12,:) | NIST |
| Cruise_Number | 2018-001 |
| Investigator:: Vaux(16,:) | Carol Johnson |
| Location_of_Measurement: Vaux(17,:) | NIST B019_221 |
| Purpose: Vaux(18,:) | Stability Measurement |
| MOBY_NET_Sequence_Position: Vaux(20,:) | Calibration Facility |
| Ambient_Air_Temp (deg C) | 22.9 |
| Relative_Humidity (%) | 46.3 |
| #_of_Levels | 3 |
| Time_Step (sec) | 10 |
| Initial lamp state: Vaux(40,:) | All Off |
| Time_adjustment_to_GMT | 0 |
| Time_of_Last_Servicing | 20151218 |
| SQM_120VAC_On | 20180626.131945 |
| SQM_Off_to_Standby | 20180626.132010 |
| SQM_Standby_to_Off | 20180626.191117 |
| SQM_120VAC_Off | 20180626.191300 |
| Lamp 1 A burn hours | 0.95472 |
| Lamp 3 A burn hours | 1.0747 |
| DAQ_Program_Version | 19 |
| File Format Version | 2 |
| DAQ_Computer: Vaux(60,:) | EOS EQUIP 13 |
| DAQ_Program_Name: Vaux(61,:) | SQM Monitor_2.1.vi |
|

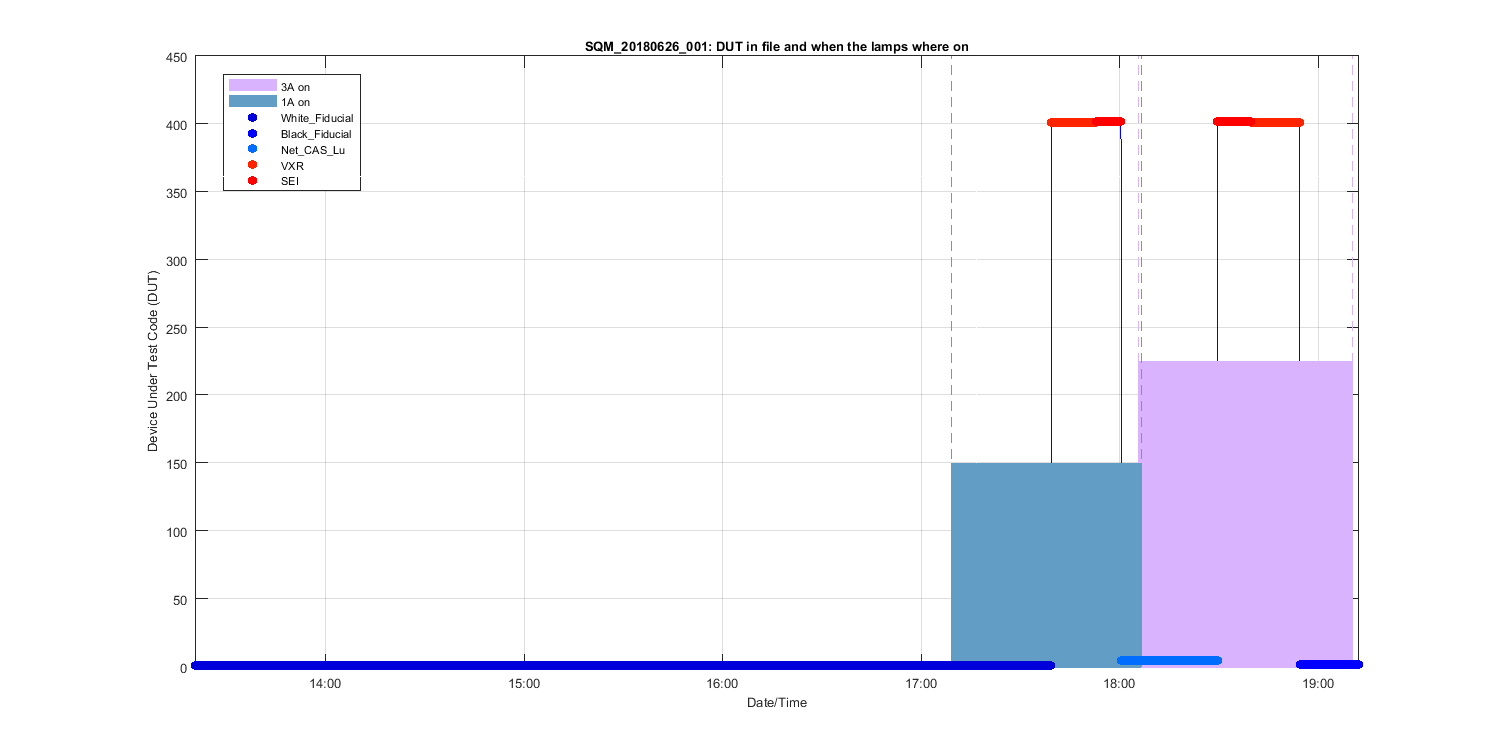

All Devices Under Test in the DUT column in DATA: DUT_White_Fiducial DUT_Black_Fiducial DUT_Net_CAS_Lu DUT_VXR DUT_SEI |
|
ASCII SQM file data: SQM_20180626_001.txt
ASCII SQM file data: PDF log file

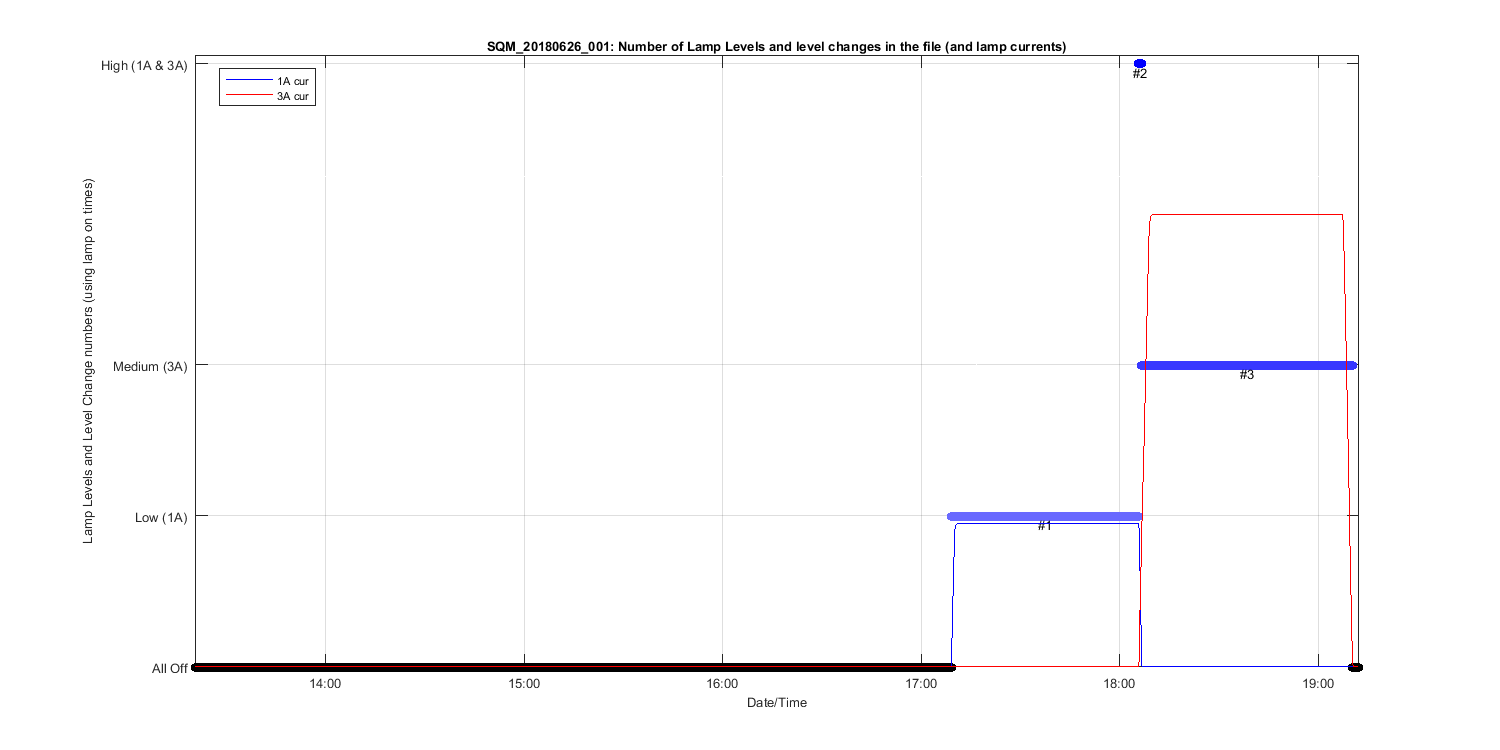

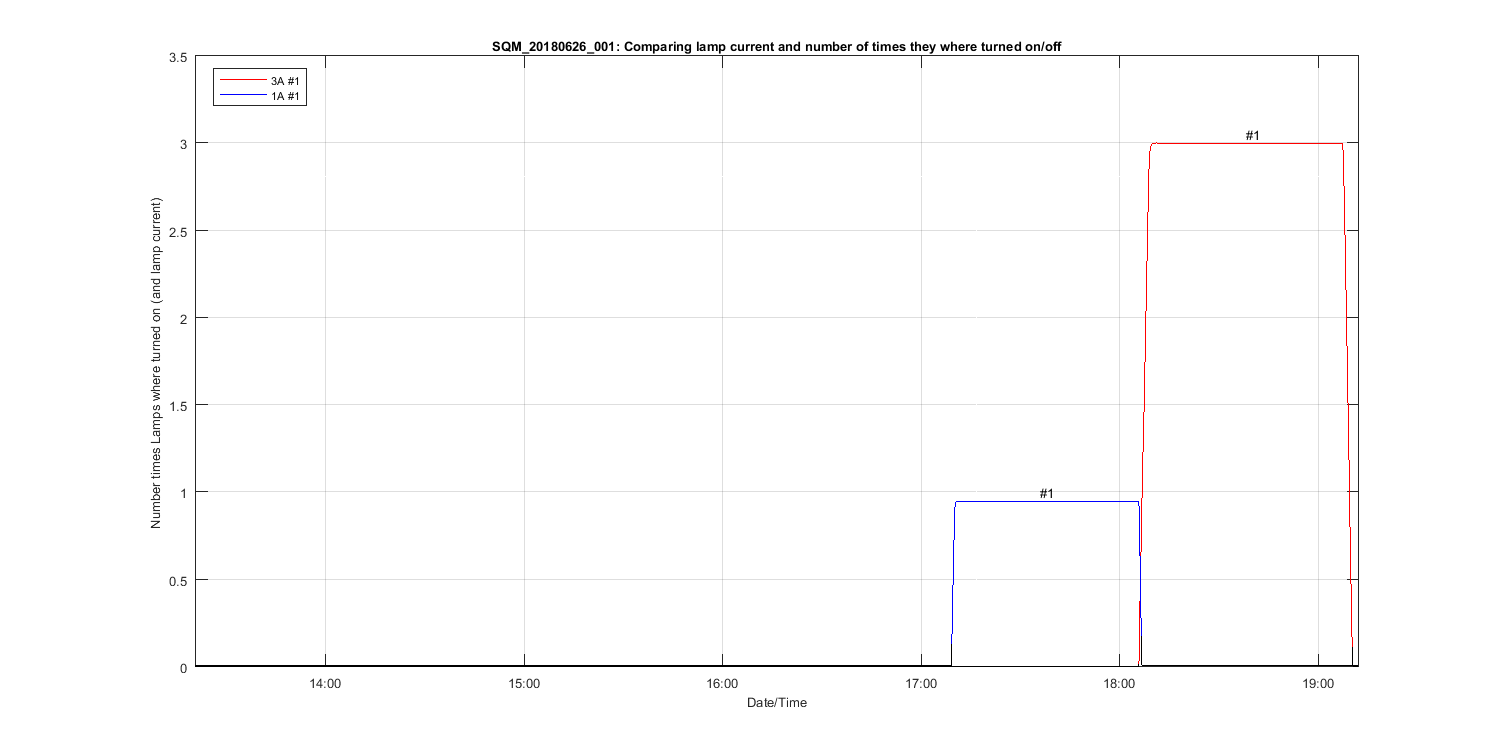

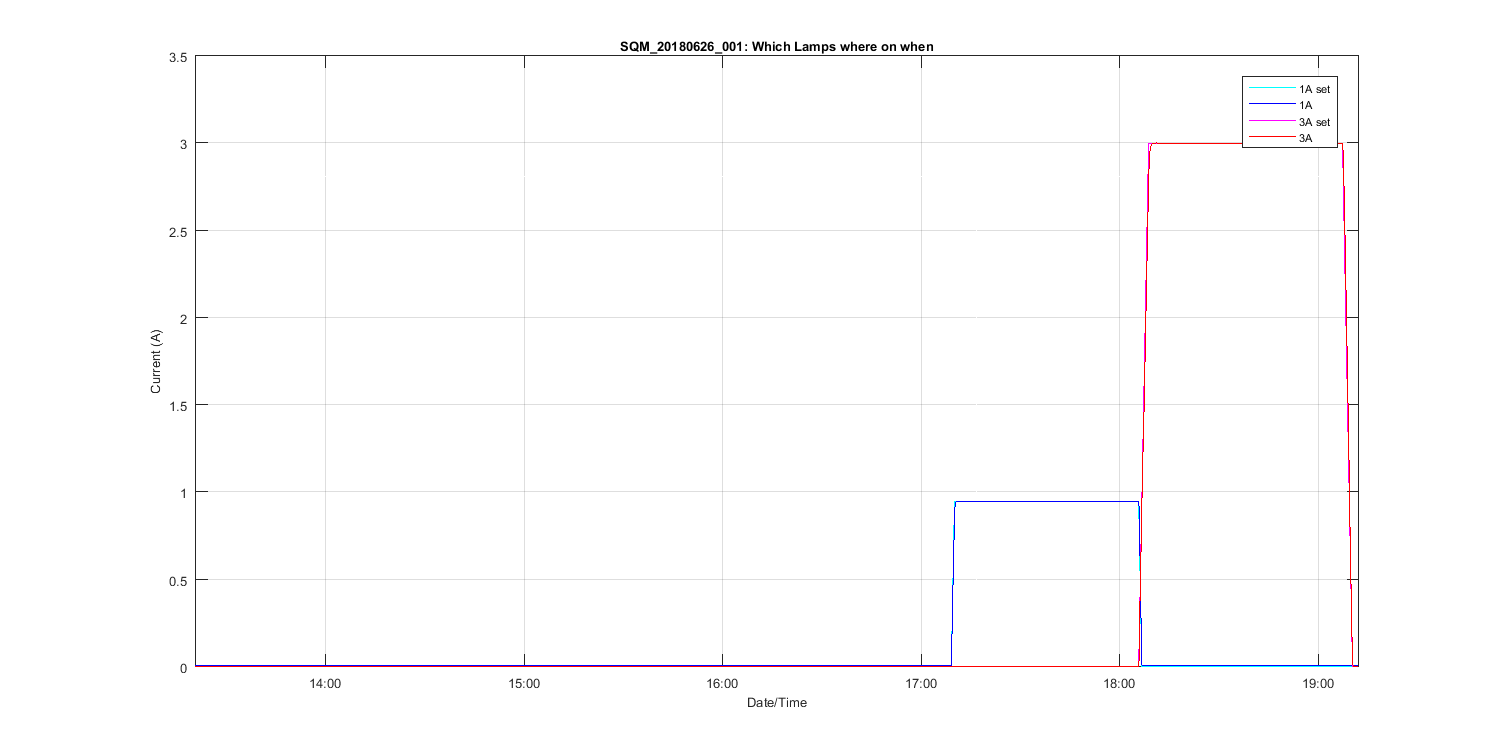

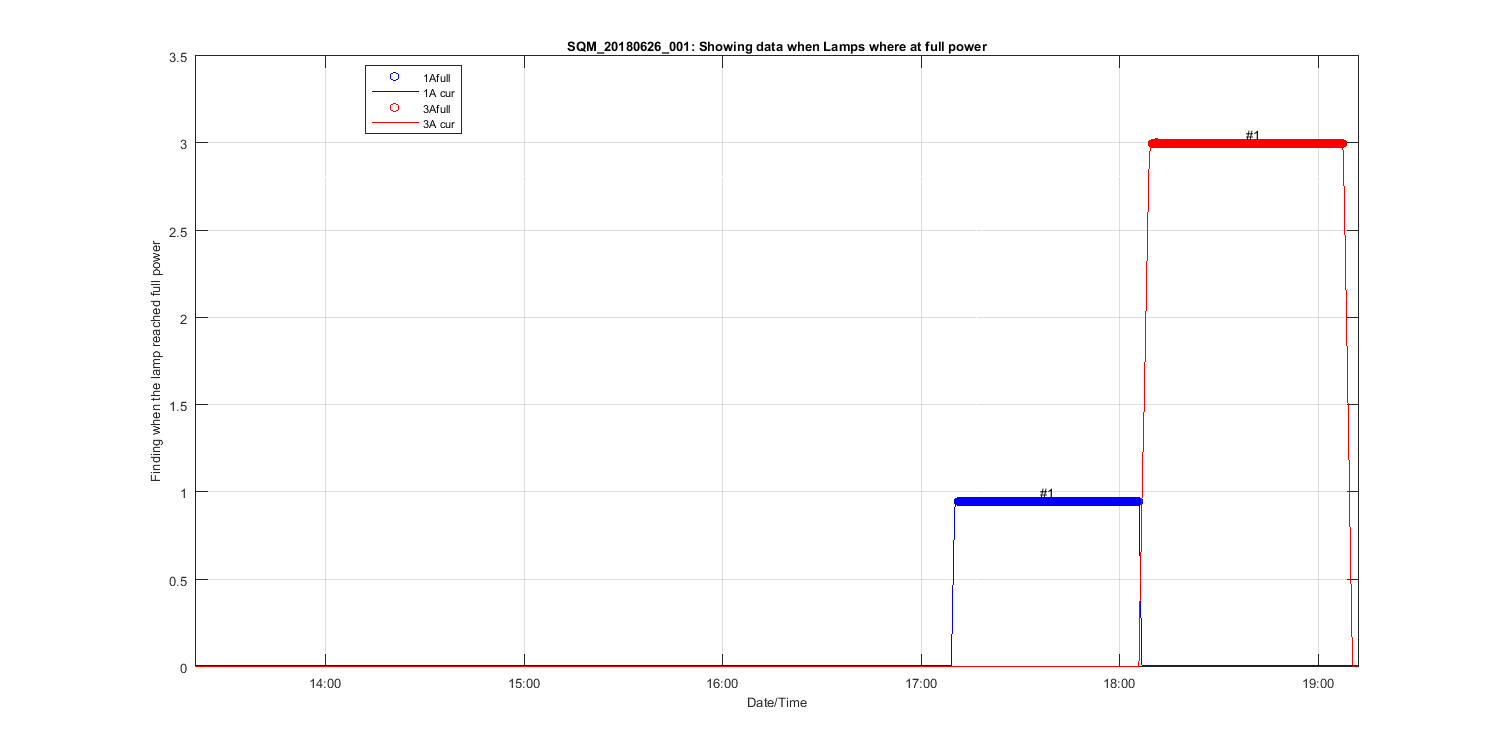

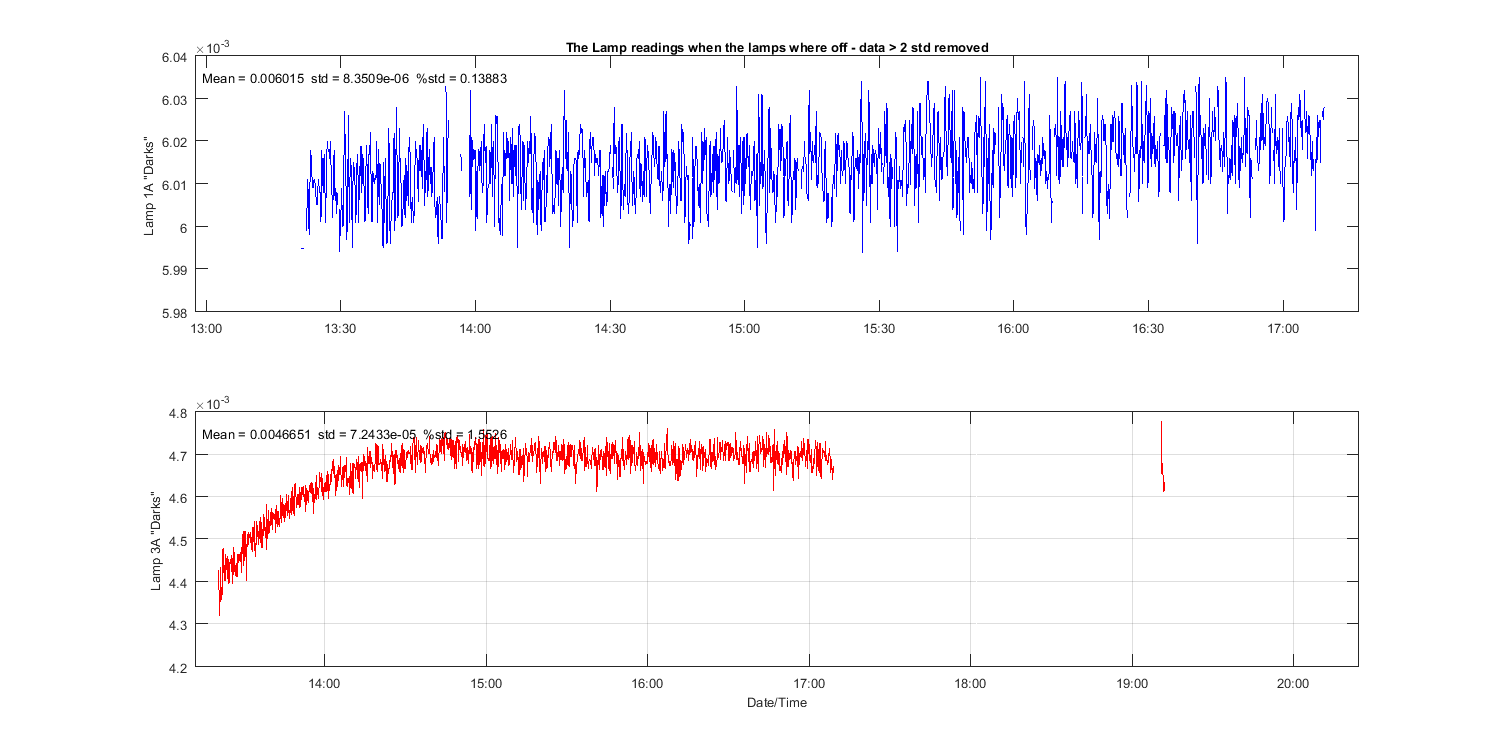

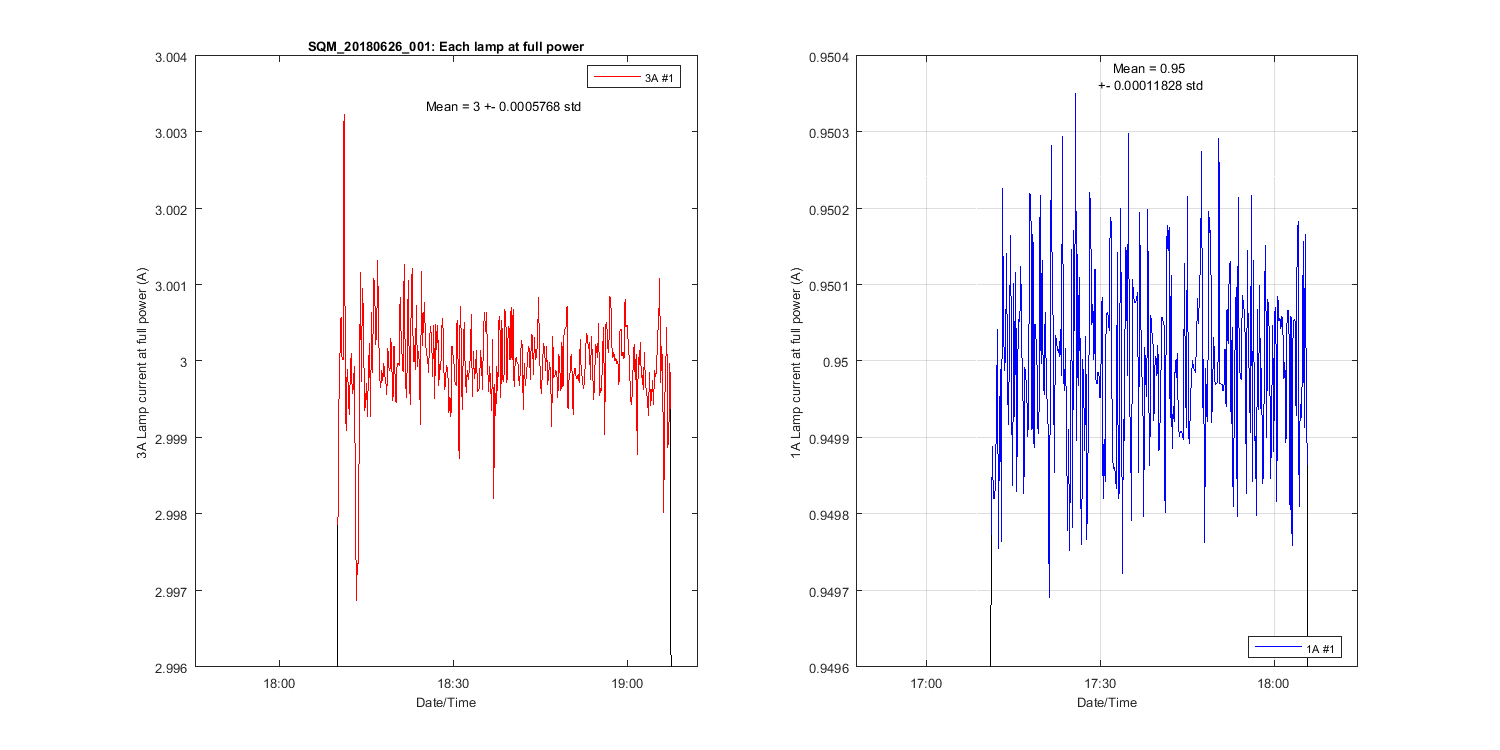

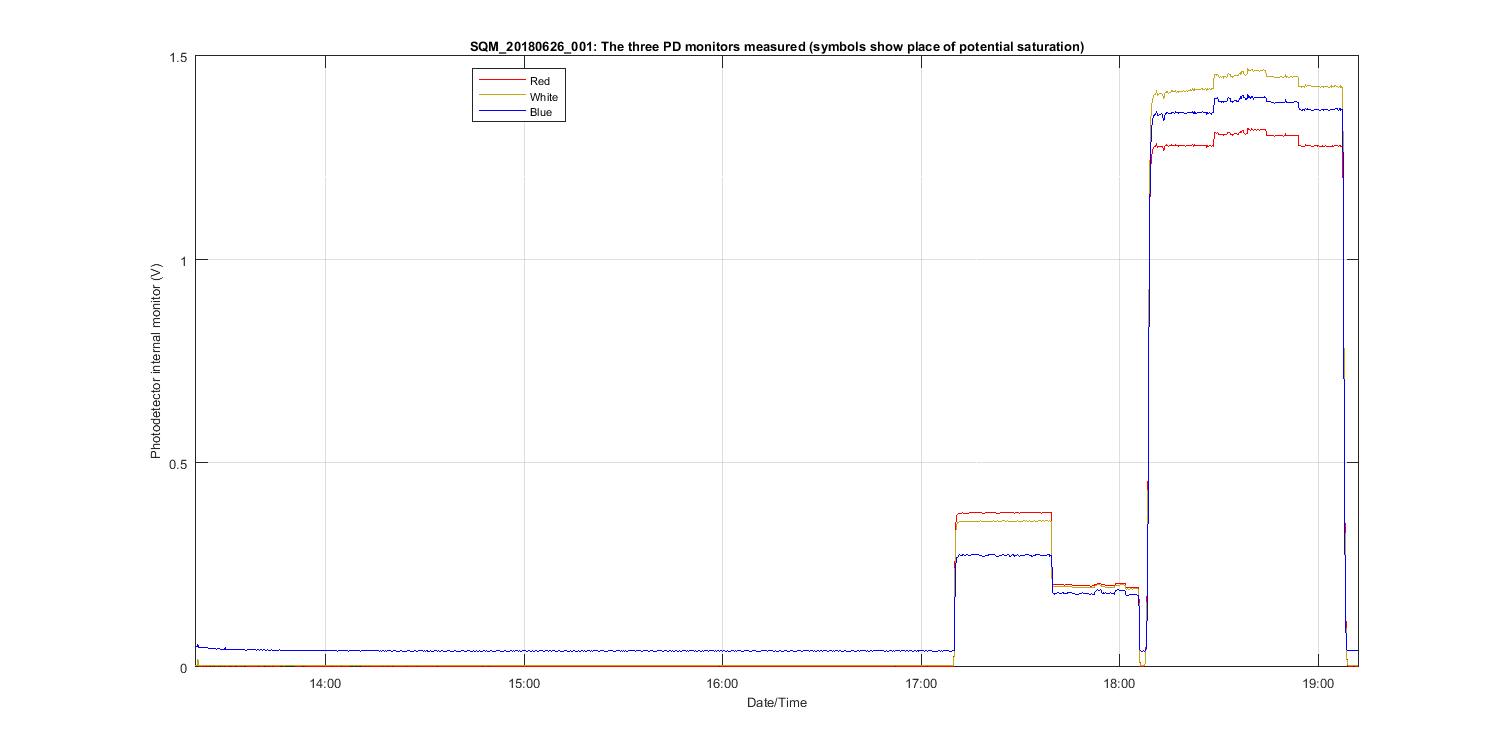

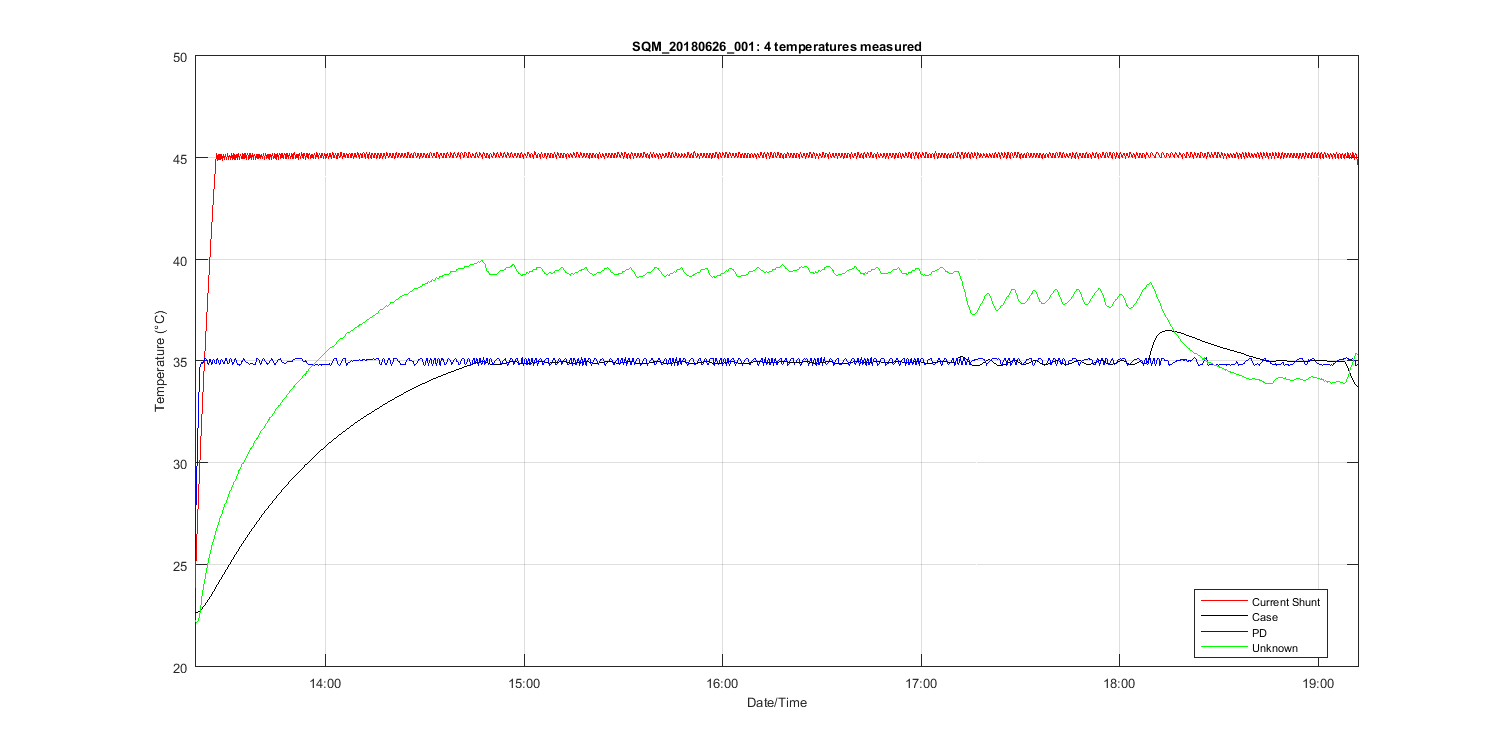

| Lamp | On/Off # | N | Time on (hrs) | Mean (meas./set) | std | %std |
|---|---|---|---|---|---|---|
| Lamp 1A | 1 | 312 | 0.90833 | 0.95 / 0.95 | 0.00011828 | 0.01245 |
| Lamp 3A | 1 | 328 | 0.955 | 3 / 3 | 0.0005768 | 0.019227 |
| Level | PD internal monitor (V) | Level Change # | Mean | std | %std |
|---|---|---|---|---|---|
| Low (1A) | Red | 1 | 0.29295 | 0.089063 | 30.4024 |
| Low (1A) | White | 1 | 0.28045 | 0.080895 | 31.7569 |
| Low (1A) | Blue | 1 | 0.22987 | 0.046461 | 38.7452 |
| Medium (3A) | Red | 3 | 1.2927 | 0.015691 | 1.2138 |
| Medium (3A) | White | 3 | 1.4341 | 0.018954 | 1.0941 |
| Medium (3A) | Blue | 3 | 1.3757 | 0.015244 | 1.1406 |
| Level | Temperature (C) | Level Change # | Mean | std | %std |
|---|---|---|---|---|---|
| Low (1A) | PD | 1 | 35.0222 | 0.11611 | 0.33153 |
| Medium (3A) | PD | 3 | 34.9536 | 0.11649 | 0.33326 |
Red PD (max value): 1.3229: #of possible satureated values 0
White PD (max value): 1.4695: #of possible satureated values 0
Blue PD (max value): 1.406: #of possible satureated values 0
Figure 1

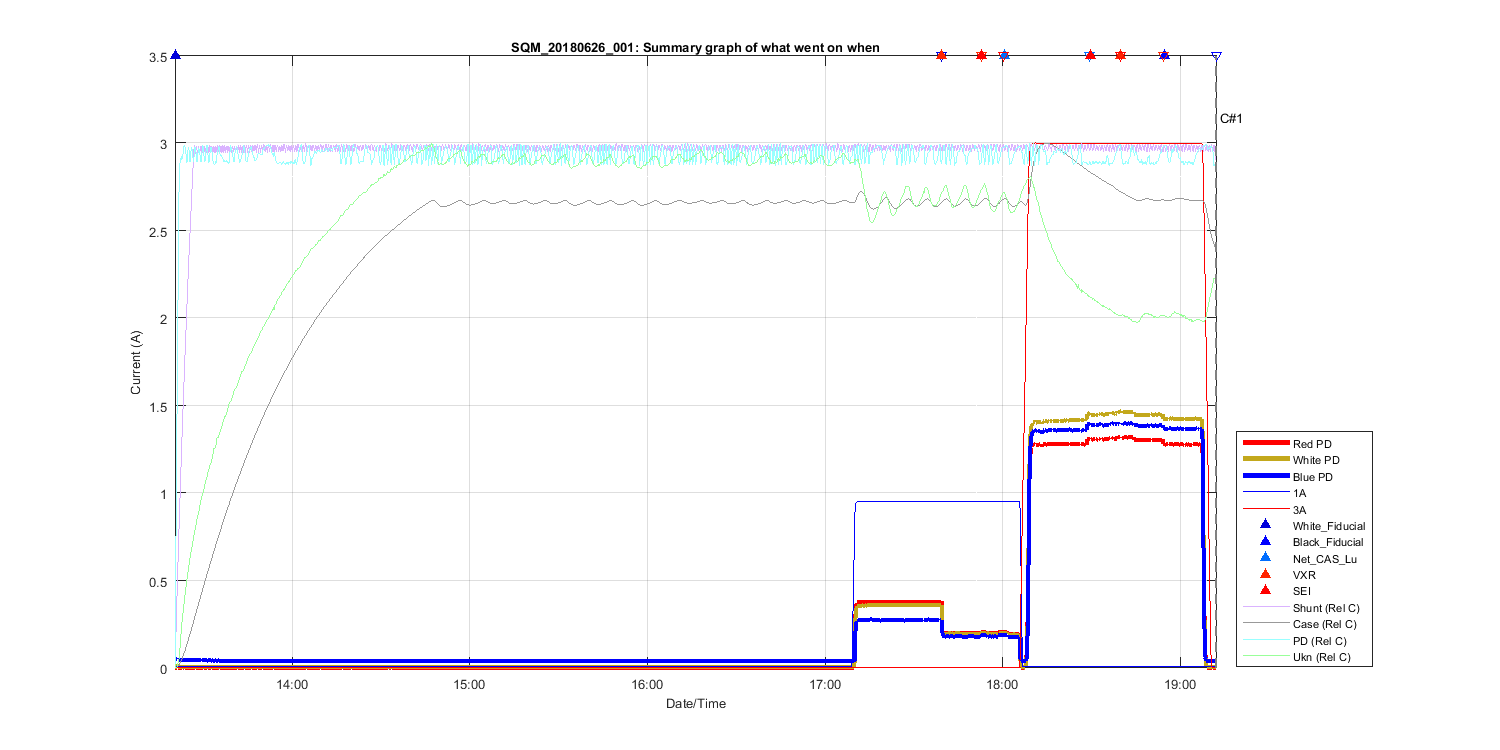

Summary Graph showing all measurements taken in this file, including auxilliary temperature measurements and comments. The text C# shows what time in the file the comments (shown above where made). The triangles at the top of the figure shows then a DUT (Device under test) was placed in front of the SQM and removed.
