| Description | Value or Code |
|---|---|
| Cruise_Name:, Vaux(12,:) | NIST |
| Cruise_Number | 2018-001 |
| Investigator:: Vaux(16,:) | Carol Johnson |
| Location_of_Measurement: Vaux(17,:) | NIST B019_221 |
| Purpose: Vaux(18,:) | Stability Measurement |
| MOBY_NET_Sequence_Position: Vaux(20,:) | Calibration Facility |
| Ambient_Air_Temp (deg C) | 23 |
| Relative_Humidity (%) | 53.3 |
| #_of_Levels | 3 |
| Time_Step (sec) | 10 |
| Initial lamp state: Vaux(40,:) | All Off |
| Time_adjustment_to_GMT | 0 |
| Time_of_Last_Servicing | 20151218 |
| SQM_120VAC_On | 20180726.164400 |
| SQM_Off_to_Standby | 20180726.164500 |
| SQM_Standby_to_Off | 20180726.182815 |
| SQM_120VAC_Off | 20180726.183000 |
| Lamp 1 A burn hours | 0.835 |
| Lamp 3 A burn hours | 0.86139 |
| DAQ_Program_Version | 19 |
| File Format Version | 2 |
| DAQ_Computer: Vaux(60,:) | EOS EQUIP 13 |
| DAQ_Program_Name: Vaux(61,:) | SQM Monitor_2.1.vi |
|

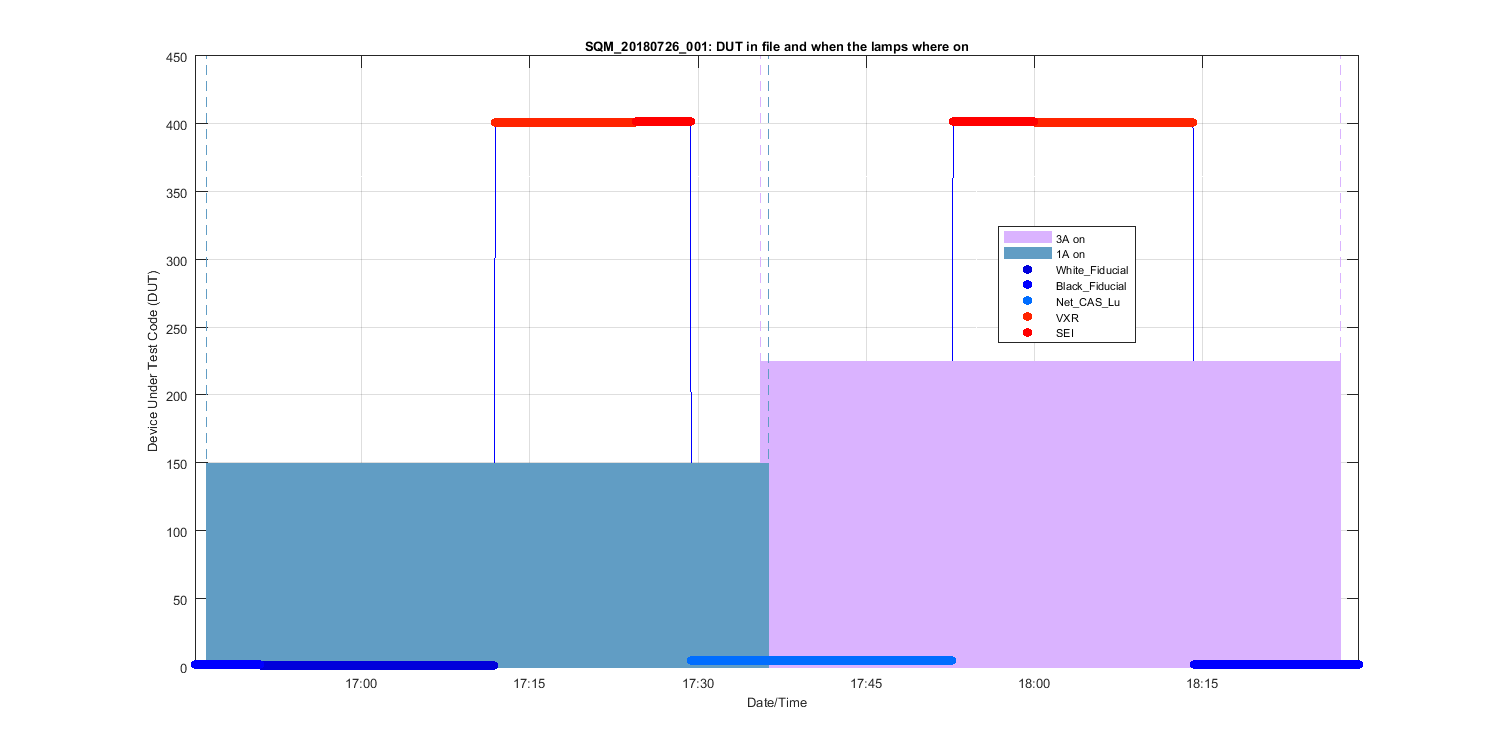

All Devices Under Test in the DUT column in DATA: DUT_White_Fiducial DUT_Black_Fiducial DUT_Net_CAS_Lu DUT_VXR DUT_SEI |
|
ASCII SQM file data: SQM_20180726_001.txt
ASCII SQM file data: PDF log file

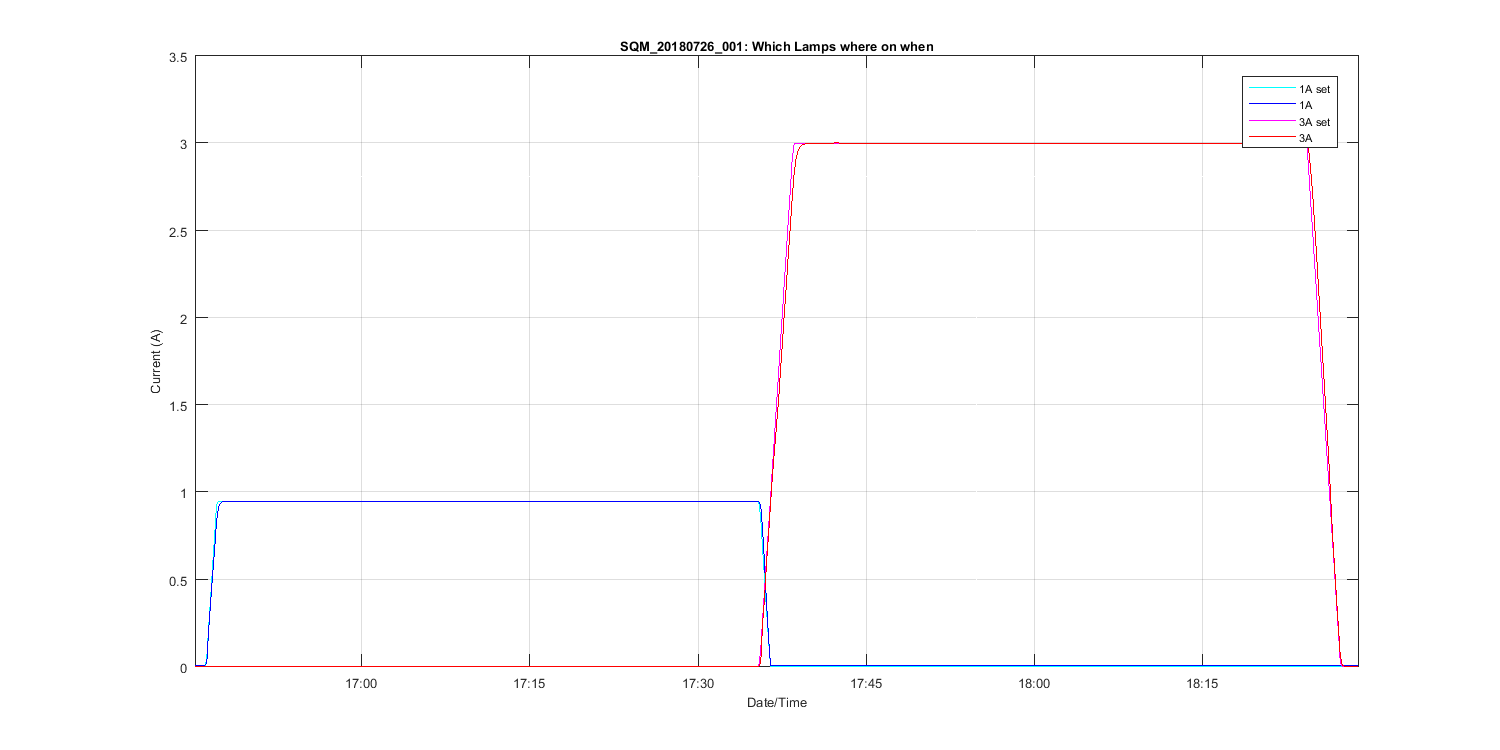

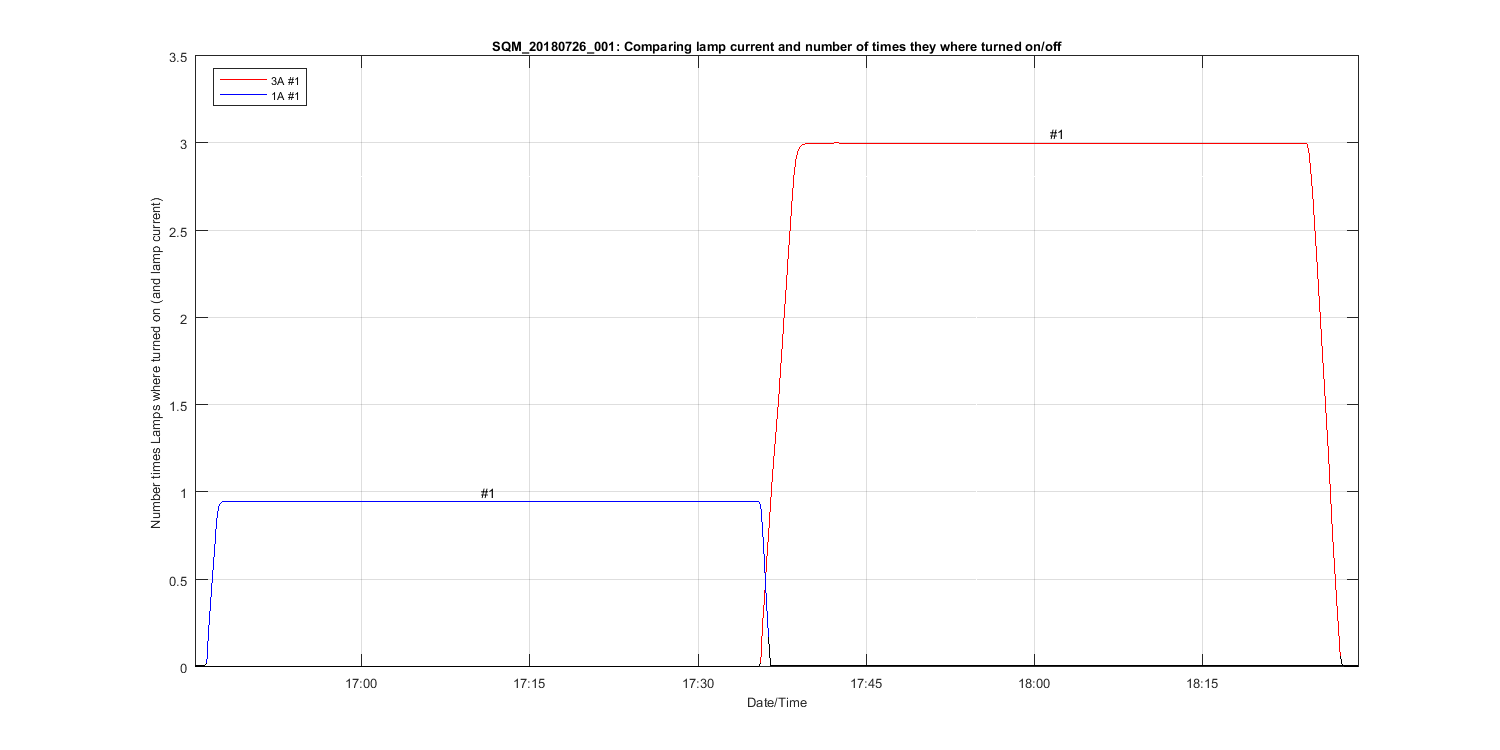

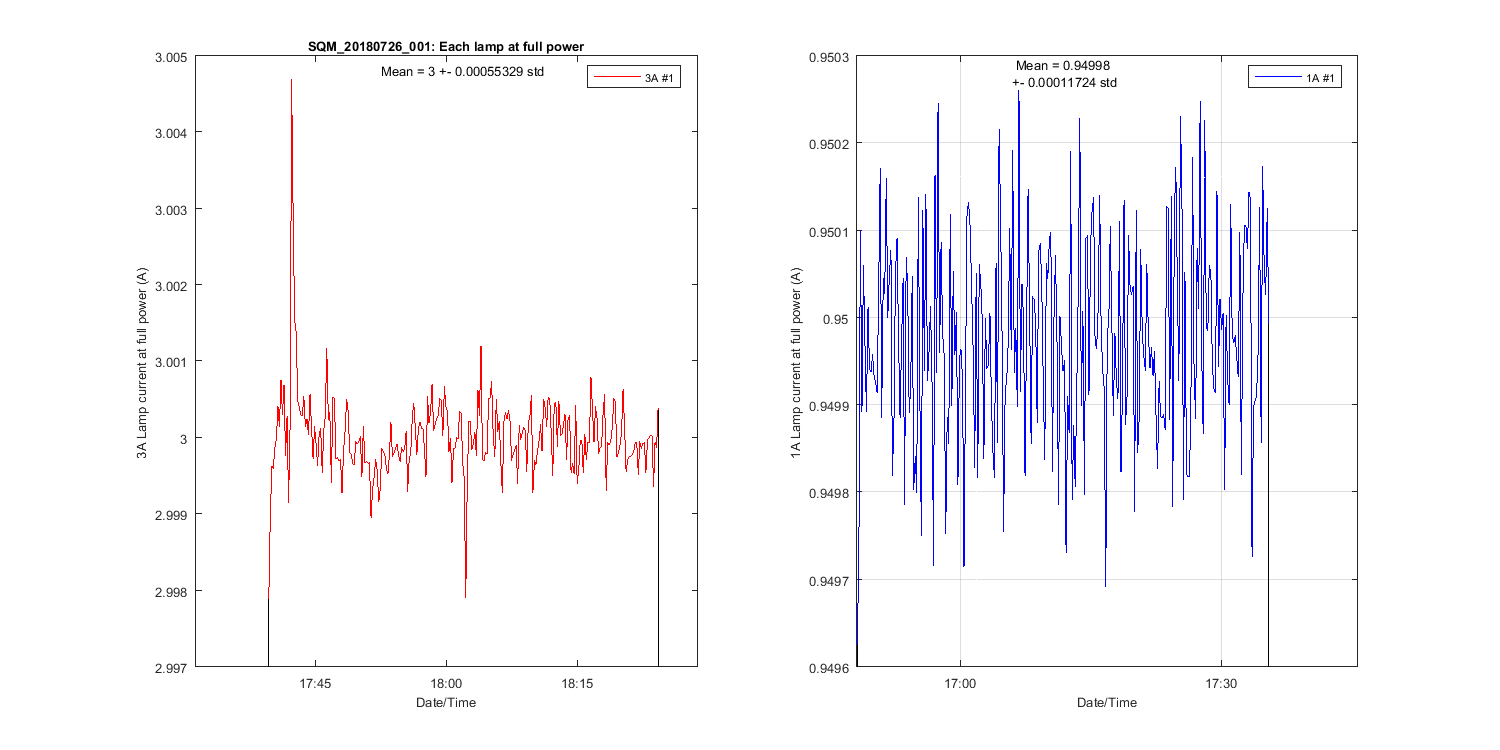

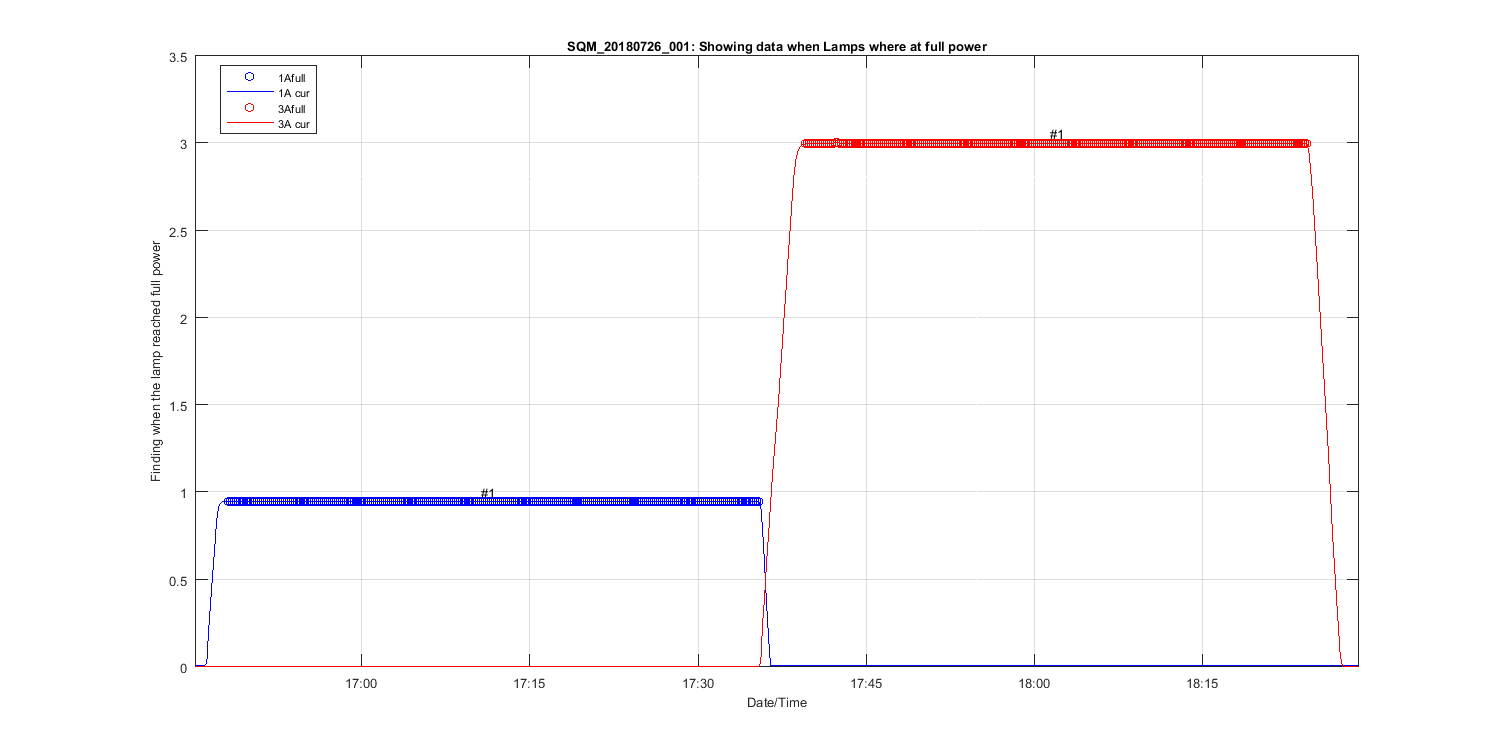

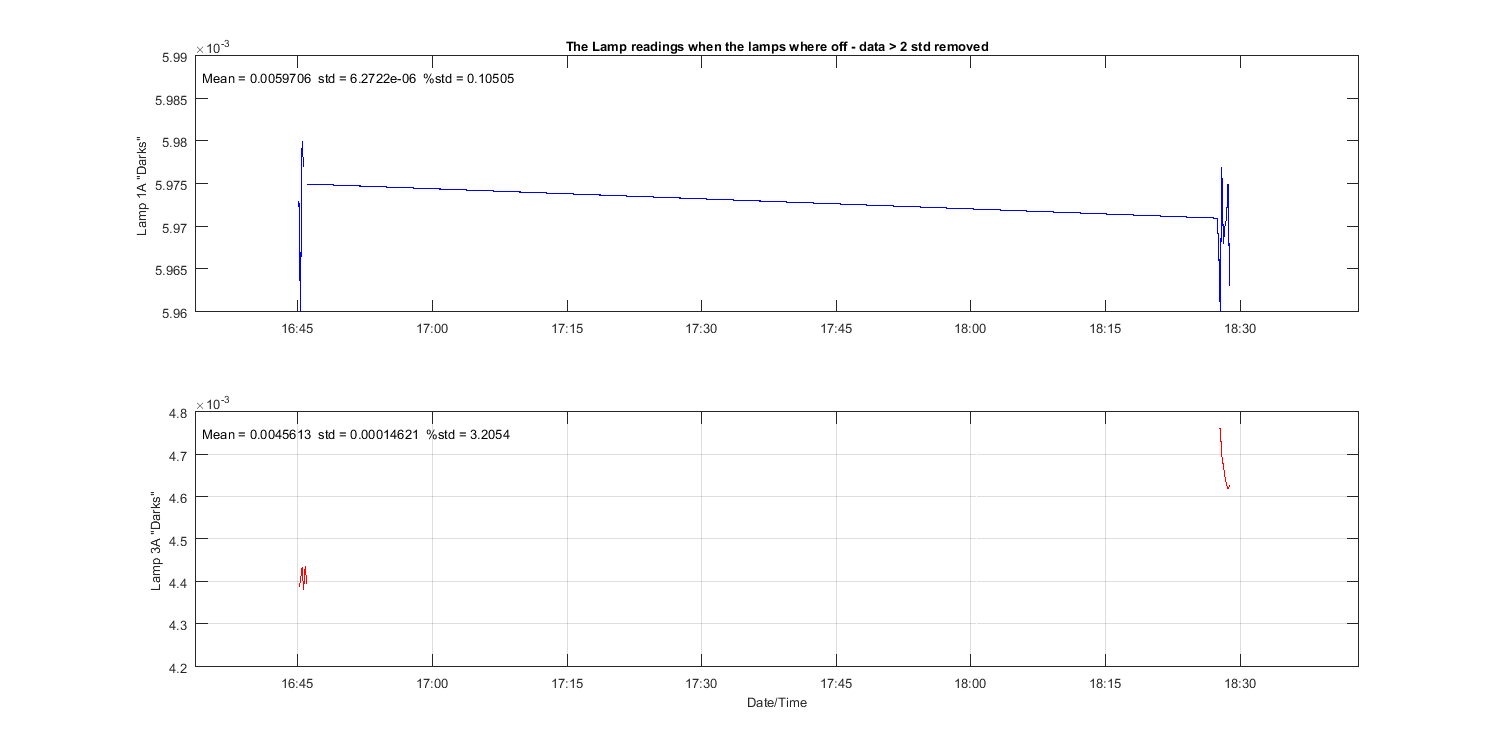

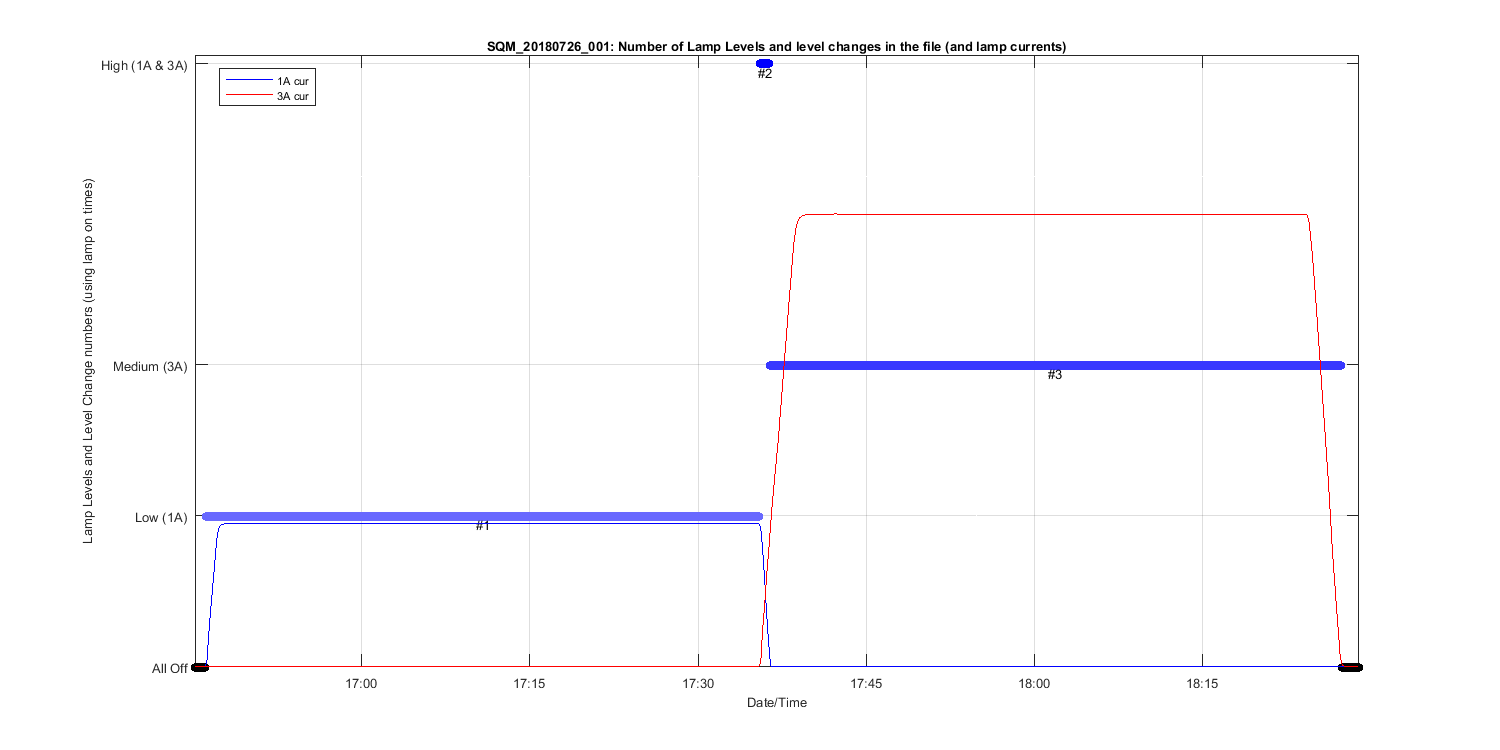

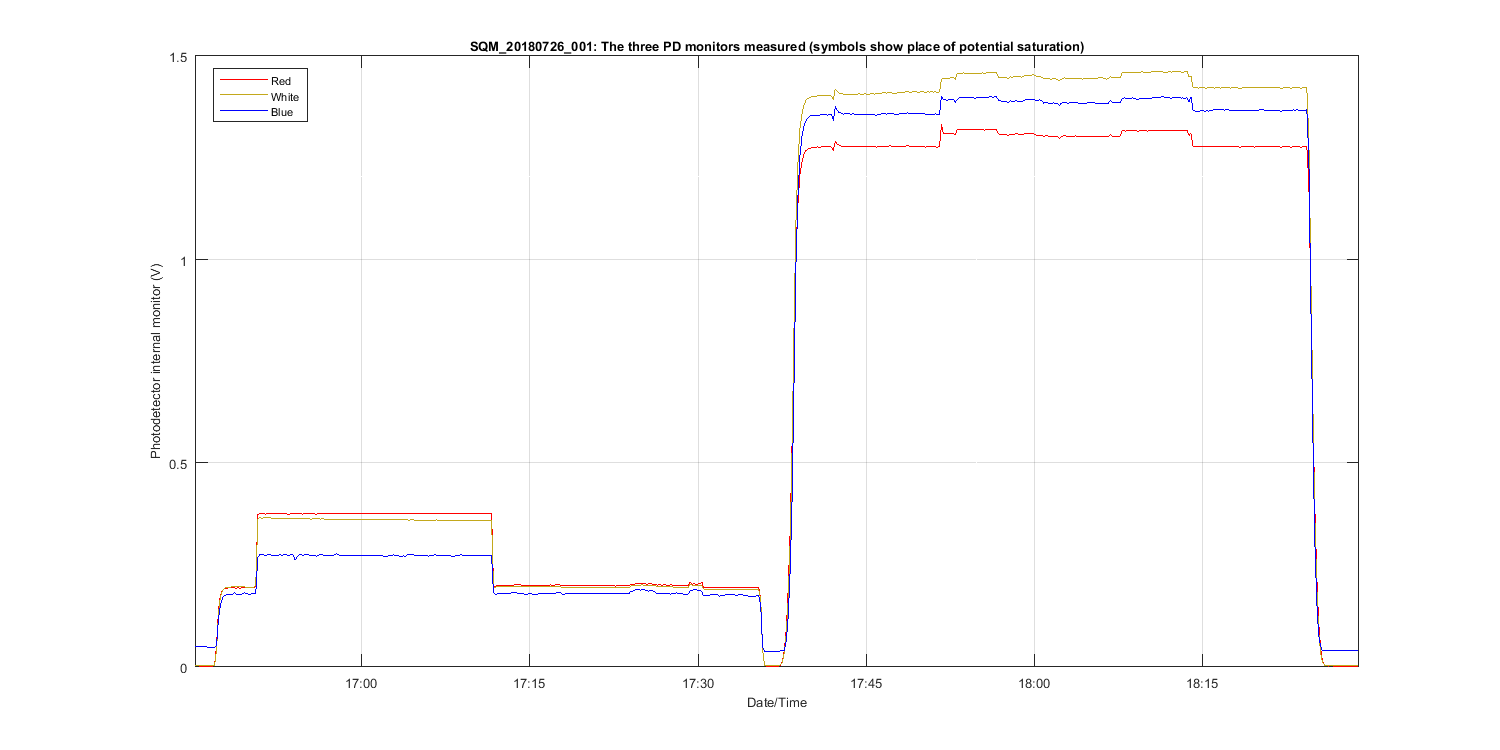

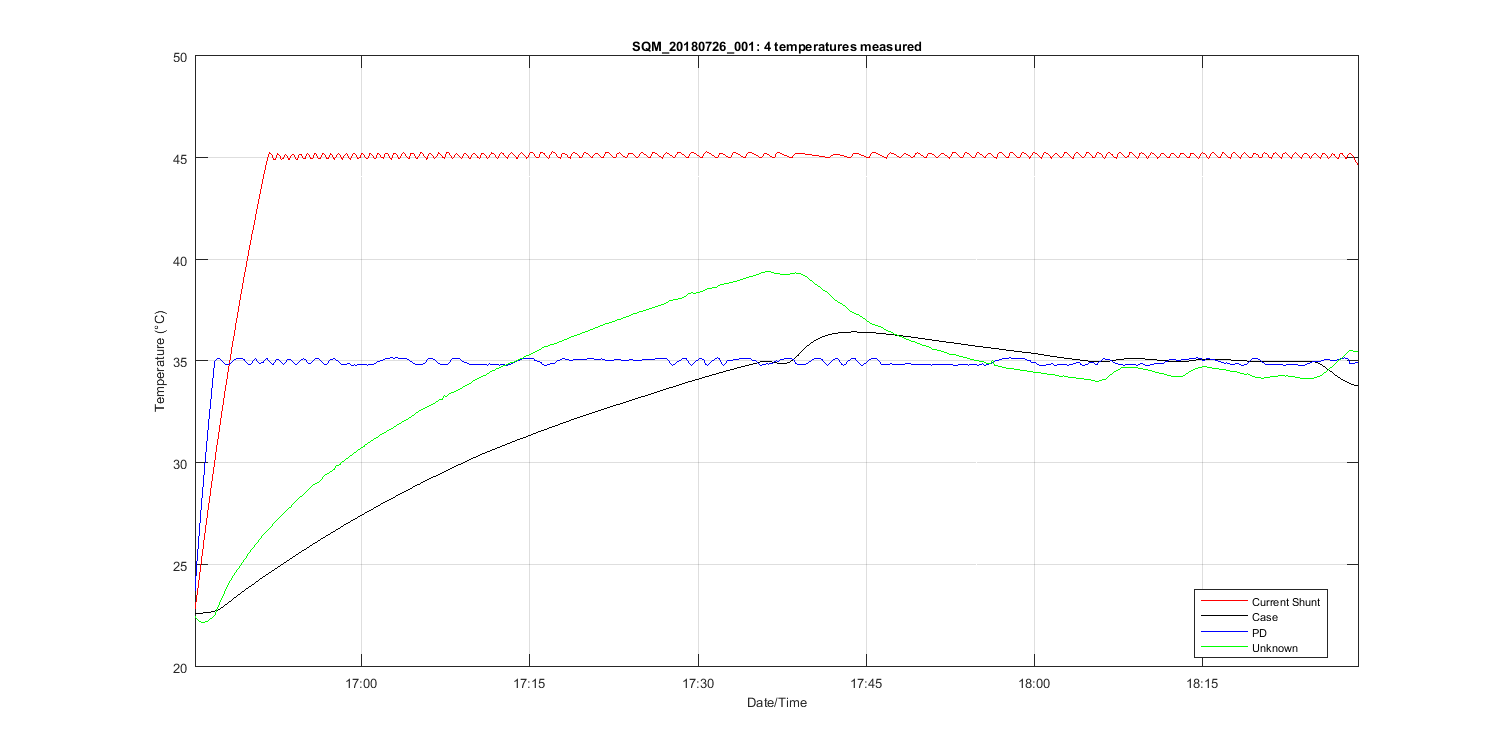

| Lamp | On/Off # | N | Time on (hrs) | Mean (meas./set) | std | %std |
|---|---|---|---|---|---|---|
| Lamp 1A | 1 | 271 | 0.78833 | 0.94998 / 0.95 | 0.00011724 | 0.012341 |
| Lamp 3A | 1 | 256 | 0.74444 | 3 / 3 | 0.00055329 | 0.018443 |
| Level | PD internal monitor (V) | Level Change # | Mean | std | %std |
|---|---|---|---|---|---|
| Low (1A) | Red | 1 | 0.2777 | 0.088353 | 31.8154 |
| Low (1A) | White | 1 | 0.26948 | 0.082764 | 32.7865 |
| Low (1A) | Blue | 1 | 0.22181 | 0.046666 | 39.8322 |
| Medium (3A) | Red | 3 | 1.2941 | 0.017436 | 1.3474 |
| Medium (3A) | White | 3 | 1.4332 | 0.020543 | 1.2165 |
| Medium (3A) | Blue | 3 | 1.3766 | 0.016265 | 1.2666 |
| Level | Temperature (C) | Level Change # | Mean | std | %std |
|---|---|---|---|---|---|
| Low (1A) | PD | 1 | 35.0102 | 0.11689 | 0.33387 |
| Medium (3A) | PD | 3 | 34.942 | 0.12049 | 0.34484 |
Red PD (max value): 1.3314: #of possible satureated values 0
White PD (max value): 1.4632: #of possible satureated values 0
Blue PD (max value): 1.4007: #of possible satureated values 0
Figure 1

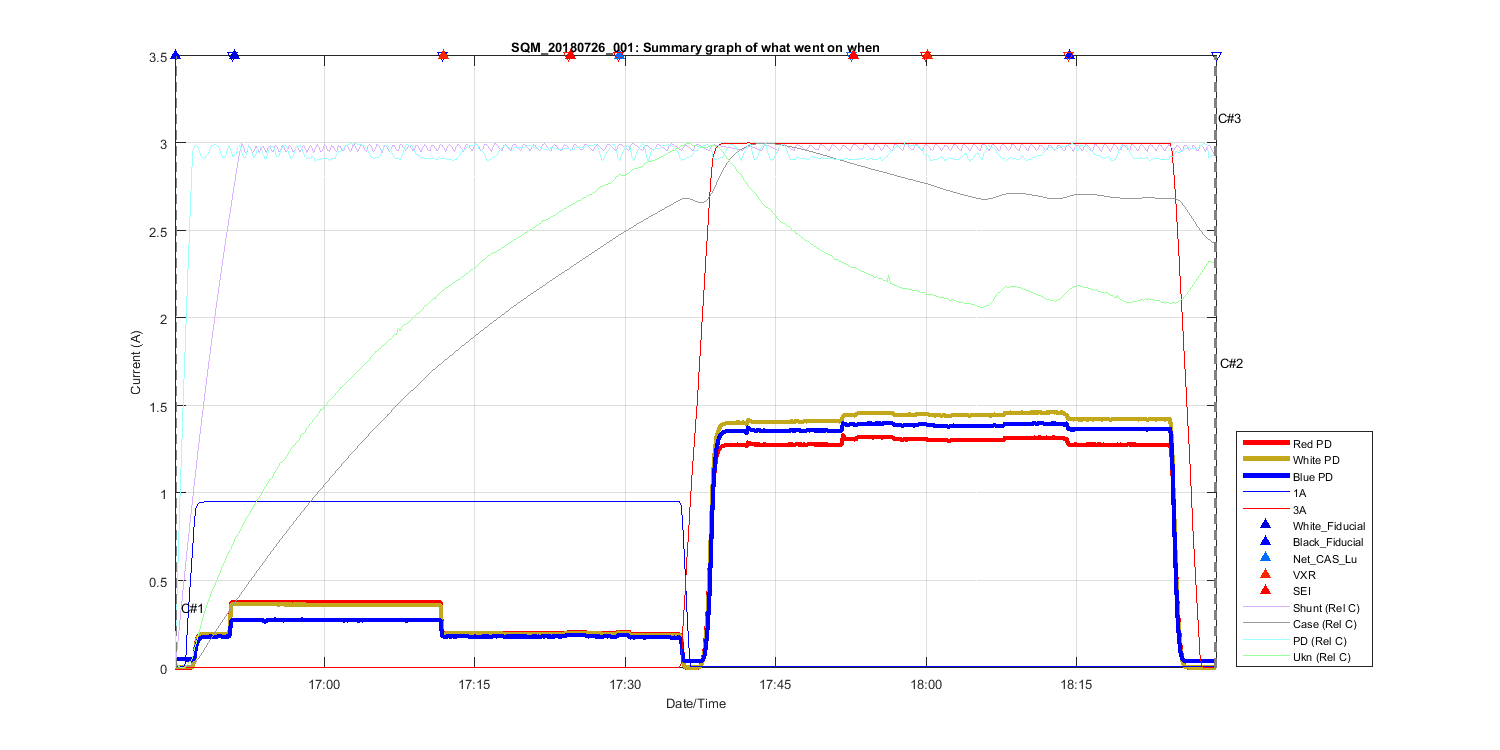

Summary Graph showing all measurements taken in this file, including auxilliary temperature measurements and comments. The text C# shows what time in the file the comments (shown above where made). The triangles at the top of the figure shows then a DUT (Device under test) was placed in front of the SQM and removed.
