bs_20190115_g193_97_01_006

REVISION DATE: 17-Jan-2019 17:56:13

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS03 Data
Previous HOME NEXT
Filename/Fit# Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
bs_20190115_g193_97_01_006 / 20190115 Dark 15-Jan-2019 03:40:17 5 6 -60 -60 4 4039 3993.0019 0.21019

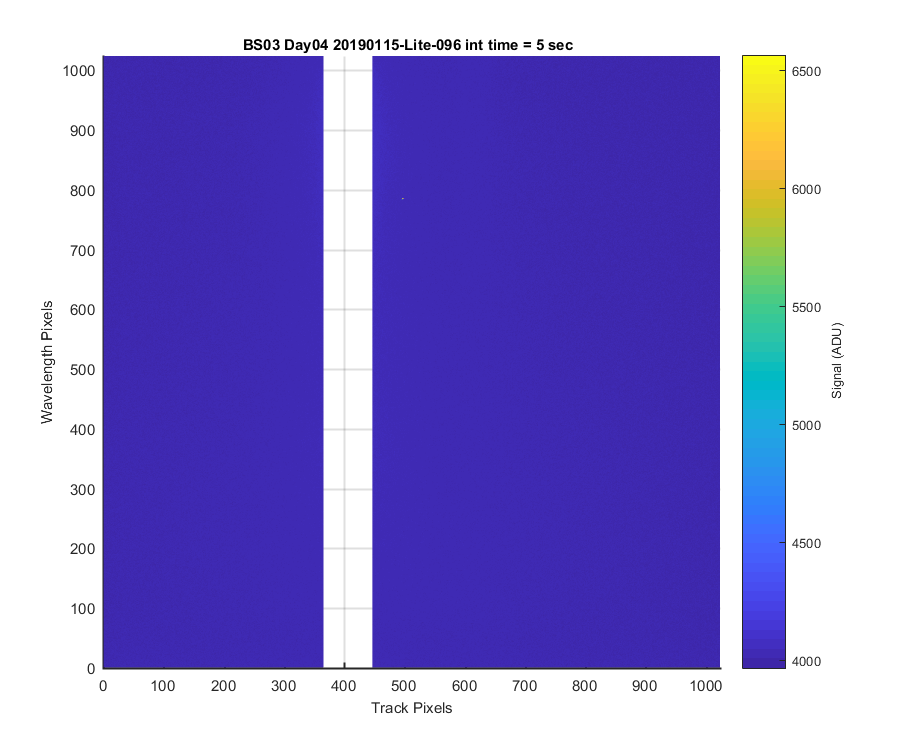

Figure 1

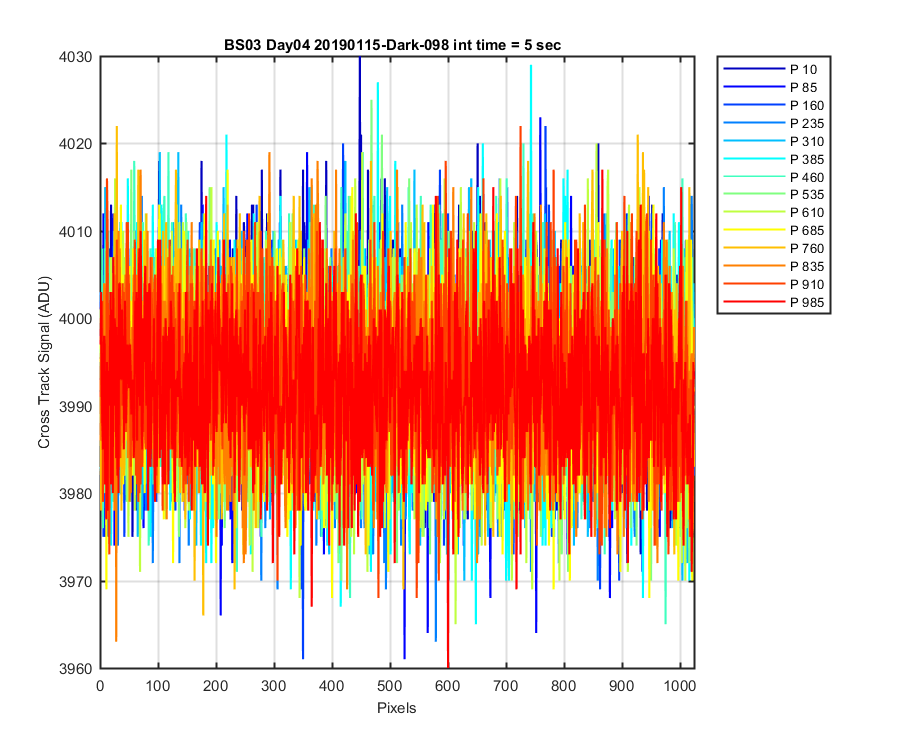

Figure 2

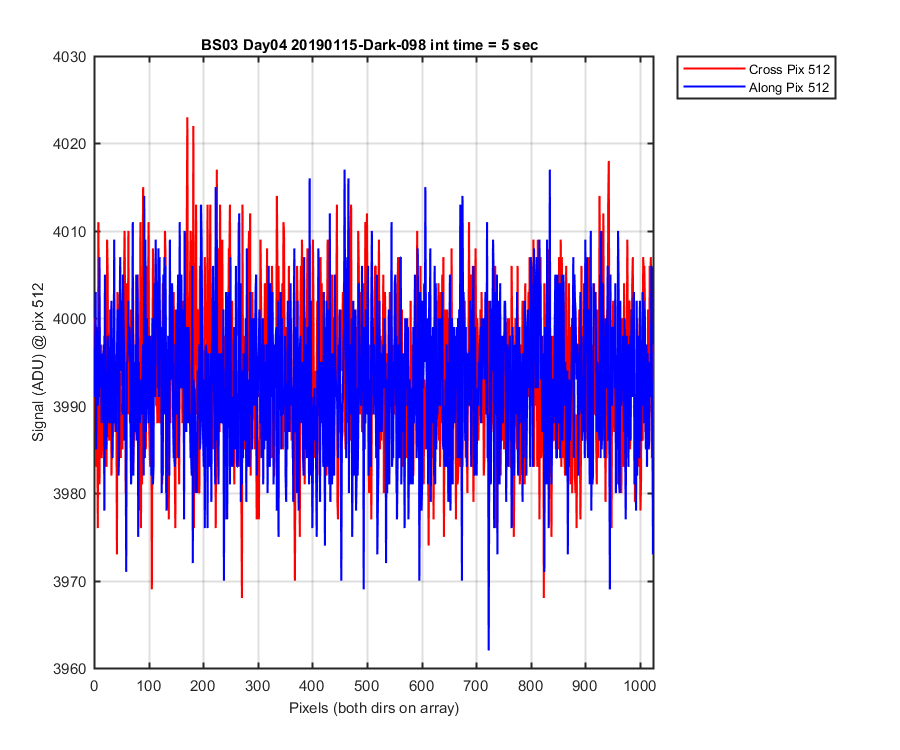

Figure 3

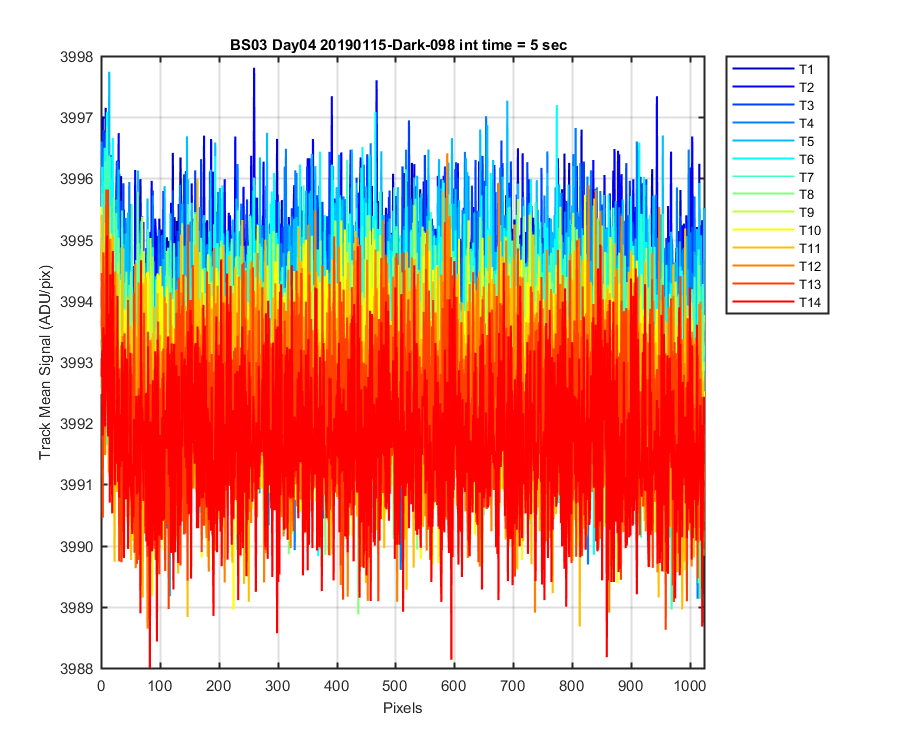

Figure 4
pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\BS3cal
Date: 17-Jan-2019 17:56:13
Created from mkhtml2_(1)

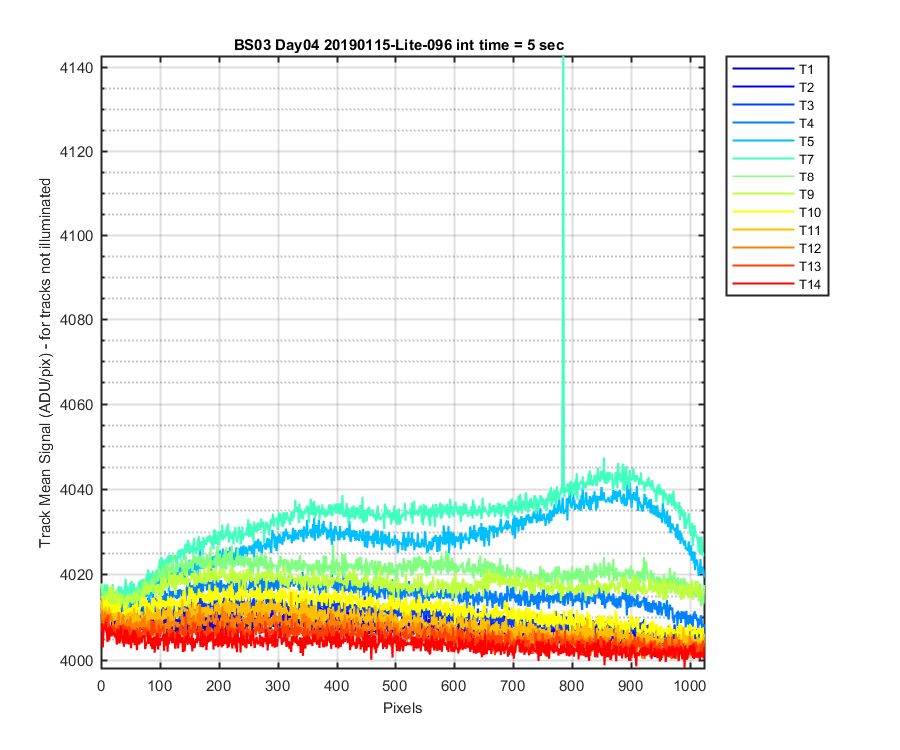

Figure 5
Figure 6
Figure 7
Figure 8
pwd: E:\zflora\mldata2\mobyrefresh\characterization\Hawaii-2019-01\BS3cal
Date: 17-Jan-2019 17:56:13
Created from mkhtml2_(1)
