bs_20180621_g174_86_02_022

REVISION DATE: 23-Jul-2018 19:53:19

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS04 Data
Previous HOME NEXT
Filename Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
bs_20180621_g174_86_02_022 Lite 21-Jun-2018 05:11:59 10 13 -60 -60 4 7870 3759.8889 9.9306

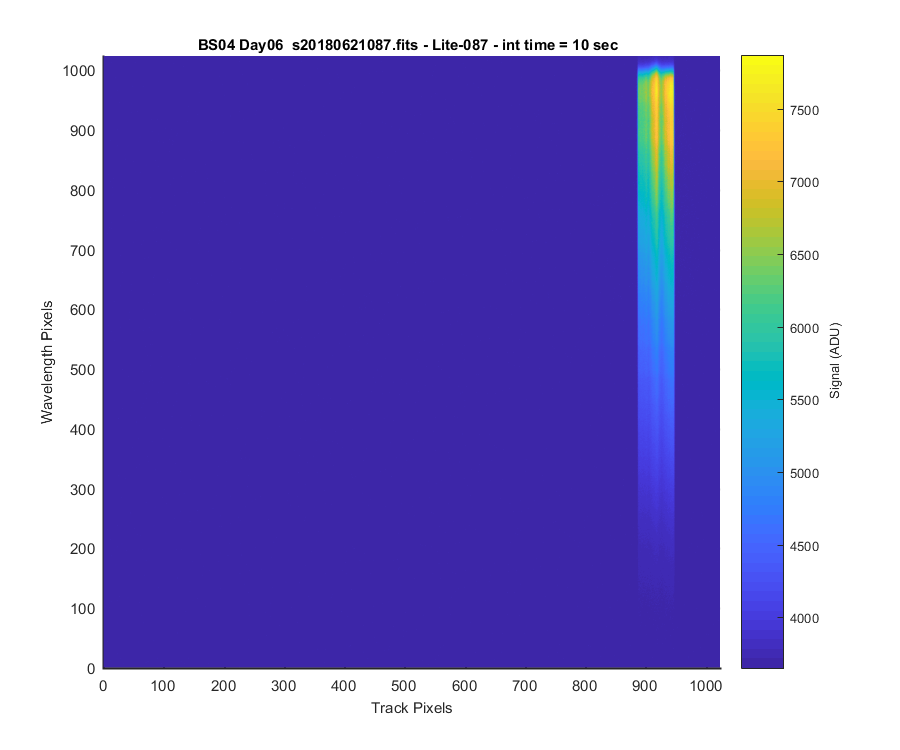

Figure 1

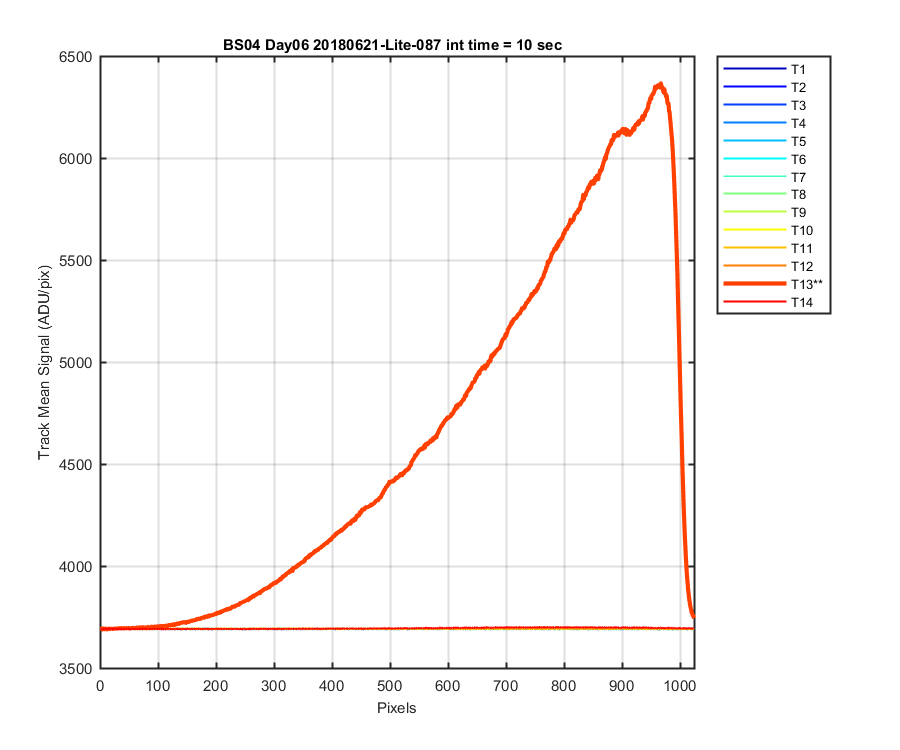

Figure 2

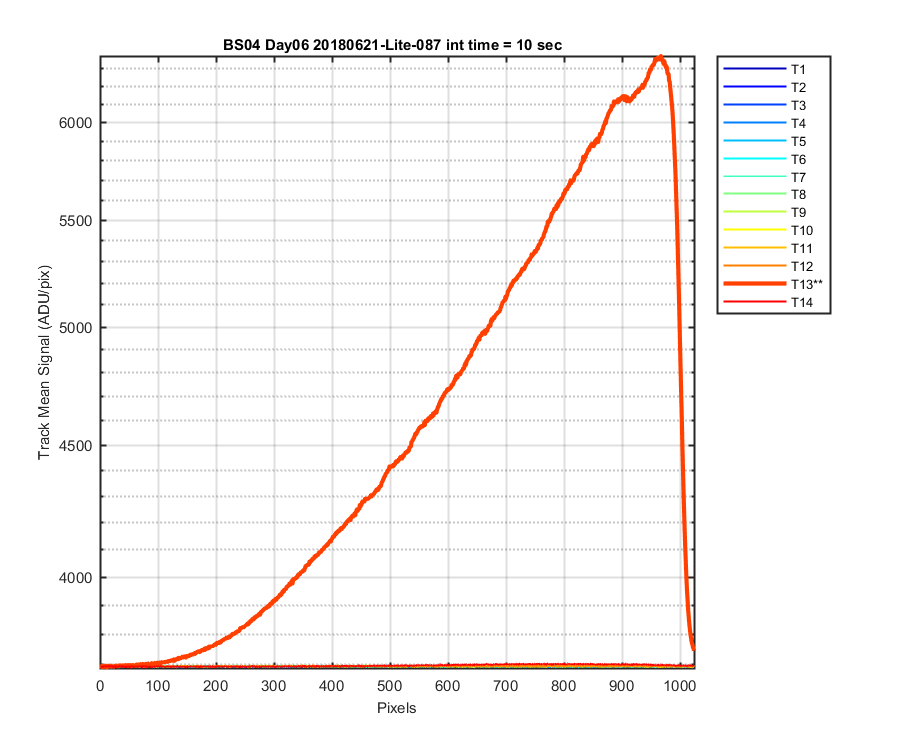

Figure 3

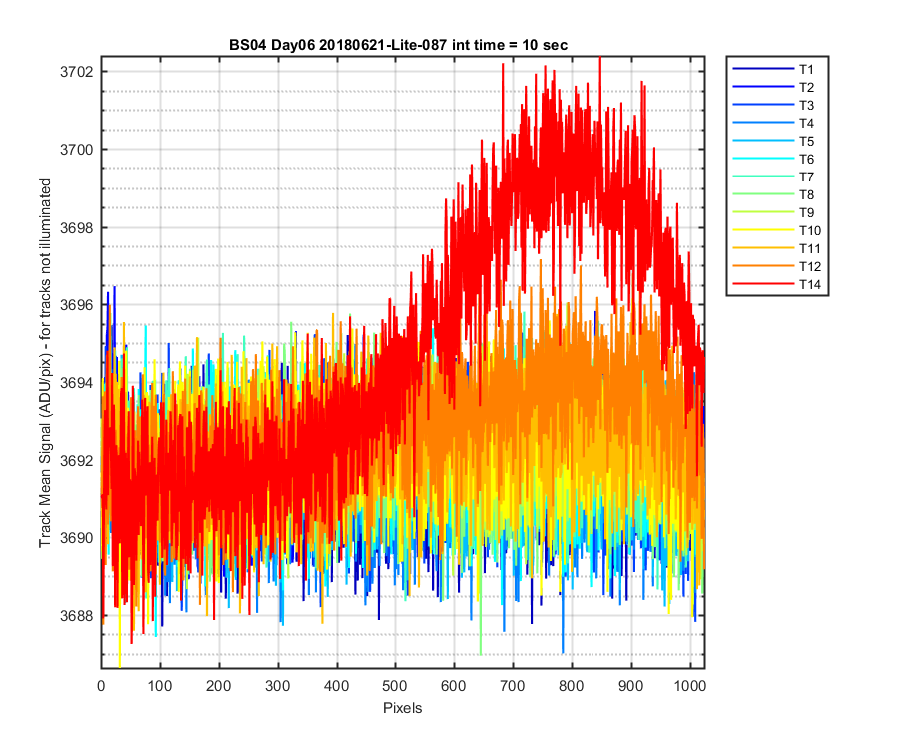

Figure 4

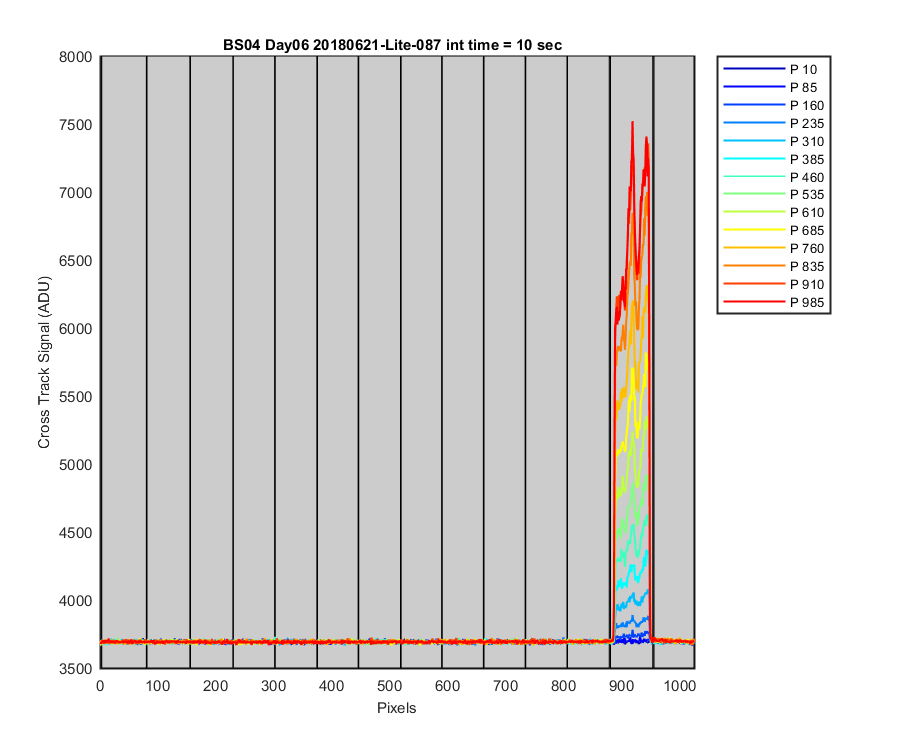

Figure 5

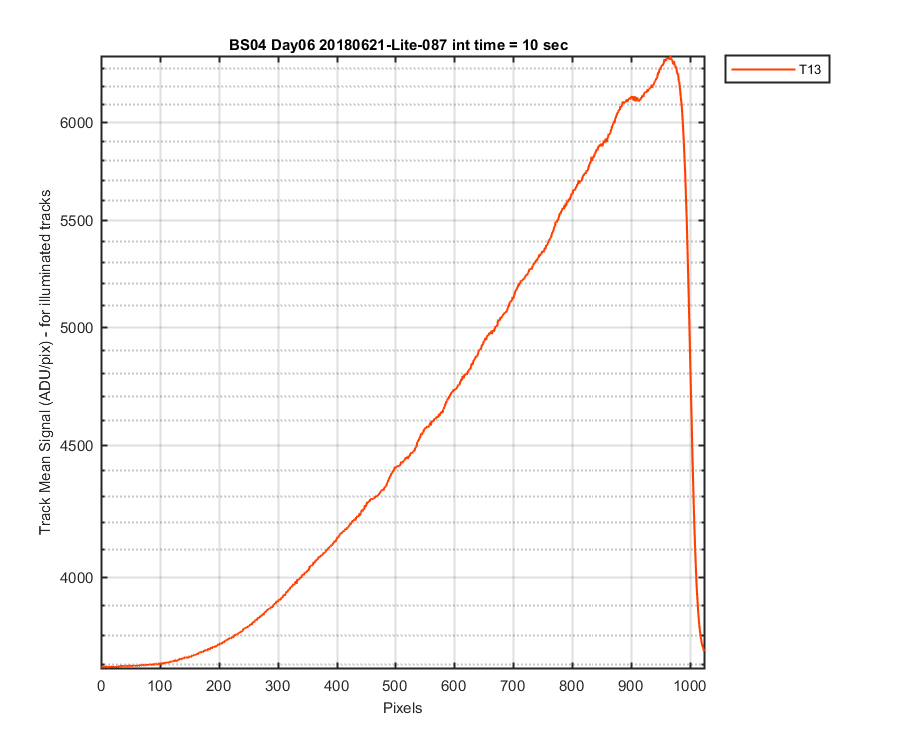

Figure 6


Figure 7


pwd: E:\zflora\mldata2\mobyrefresh\characterization\moby-L271\bs4cal
Date: 23-Jul-2018 19:53:19
Created from mkhtml2_(1)
