20180626_210047 - dark004

REVISION DATE: 18-Mar-2019 09:39:57

MOBY265 BS03 in-water HDF data sets.


Table caption: MOBY265 BS03 in-water HDF data sets.
Previous HOME NEXT
Filename Type Total Exposure Time Temperature Data date Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
20180626_210047 dark004 4.1437 NaN - 0 315 260.20 4.06

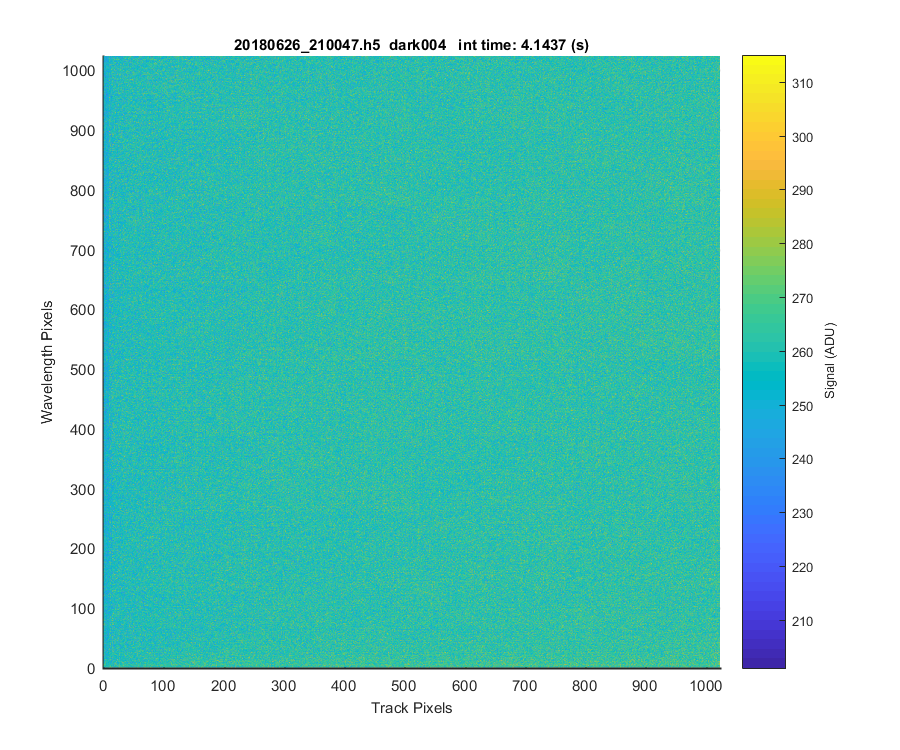

Figure 1: Top down surface of the data. Colorbar is in ADU.

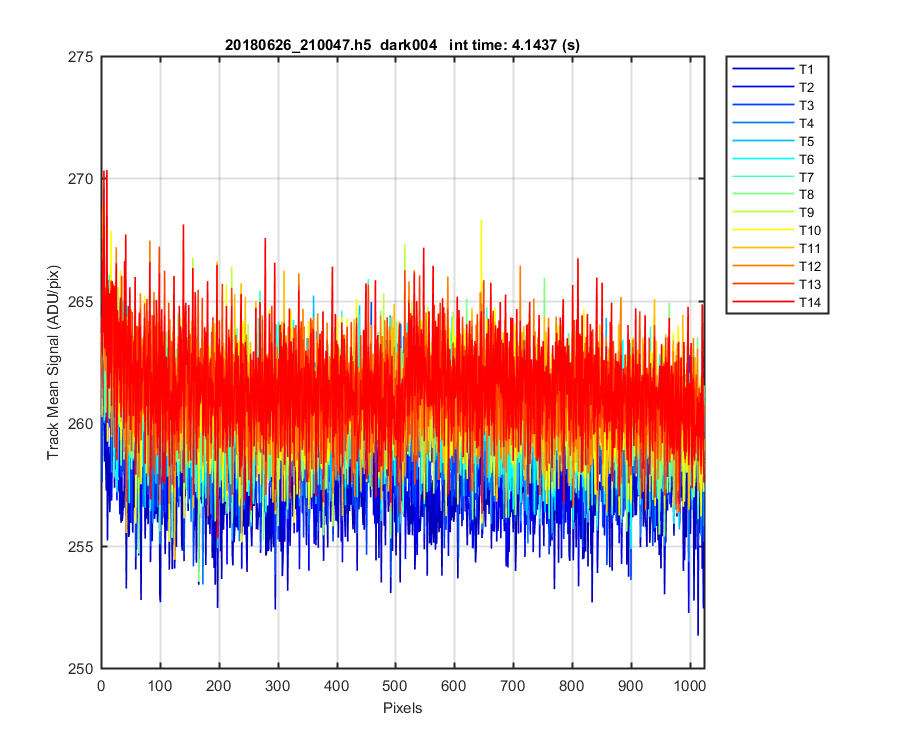

Figure 2: Track means for the 14 graphs. Units are ADU/pix because it is a track mean

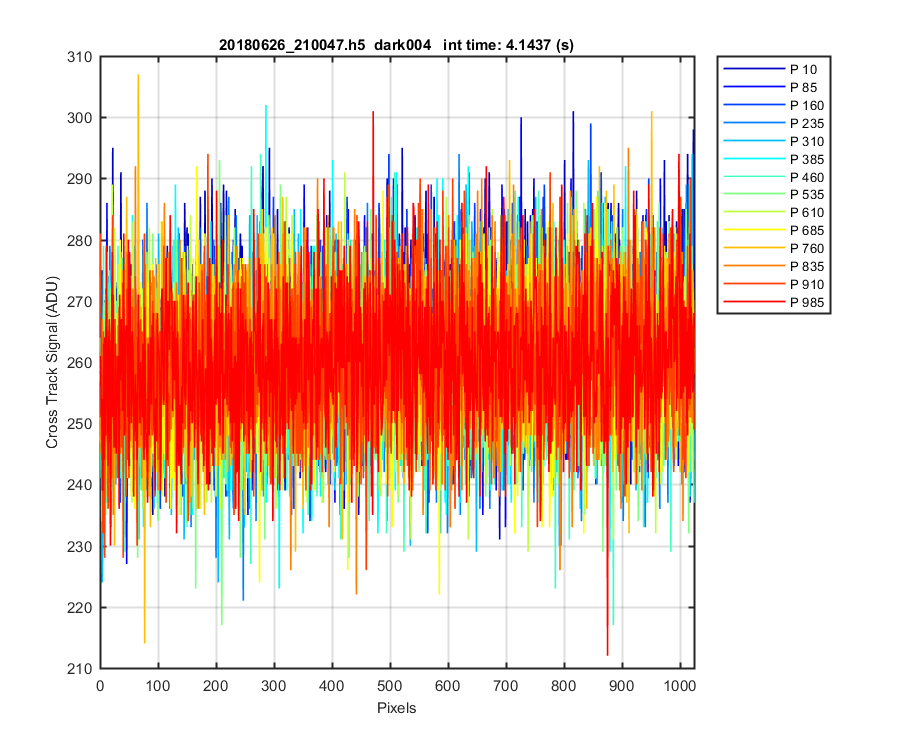

Figure 3: Individual pixels going across the tracks on the array. Units are again ADU since it is not a mean.

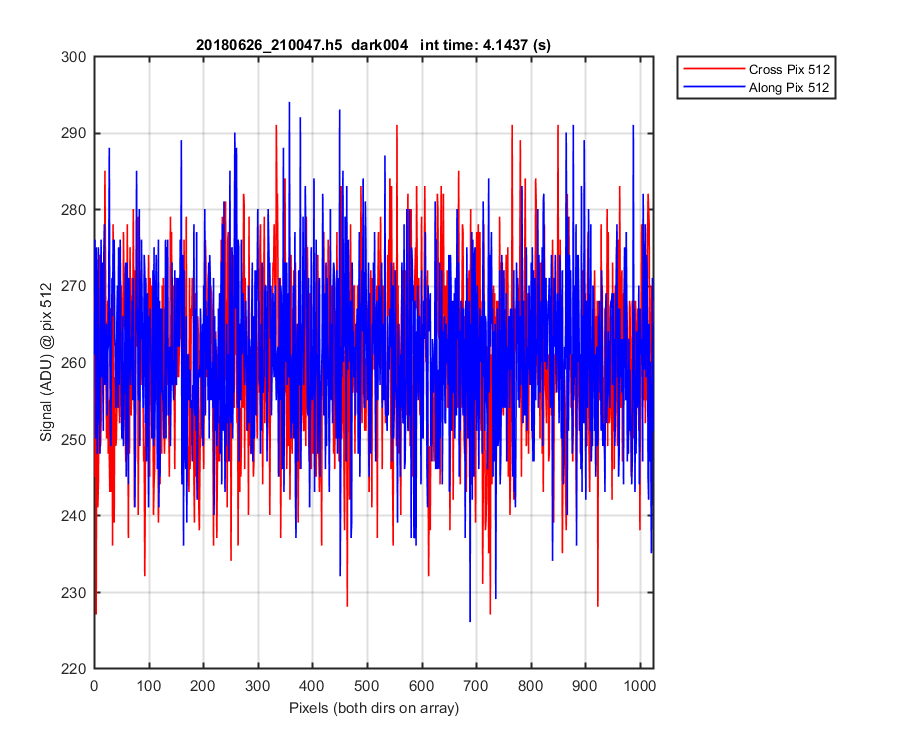

Figure 4: Comparison of a cross and along track pixel at 512 just to see if there is any tilt etc in the image.



pwd: E:\zflora\mldata2\mobyrefresh\testing\hdf\moby265\hdf\bs03
Date: 18-Mar-2019 09:39:57
Created from prchdf5_(2)
cd E:\zflora\mldata2\mobyrefresh\testing\hdf\moby265\hdf\bs03\prchdf5_(2)
