MOBY265 experiment with new MOBYrefresh - MOBY265 deployment - BS03cfg005 and RS04cfg002 - deployed on 2 May 2018

Fifth in-water data set with MOBY installed in MOBY265 and deployed on 2 May 2018. No UV ghost in this BS or RS. No predeployment data collected. Art is not able to talk to the RS and Mark could not fix this before the buoy went in the water. First data sets with HDF formated files. MOBY265 only have 2 lower batteries in it to account for the increased wieght from the BS/RS assembly (photos). So turning on the BS/RS is a hands on affair right now. So far batteries are looking good.

On July 7th MOBY went on a walk-about that ended in MOBY being to far from the mooring to be towed back. So on July 11th MOBY was recovered and returned to Pier 35. MOBY266 will be deployed once M264 is recaled.

Change on 3 Dec 2018 with the track positions for the BS. Mike says... "It is clear during postcal data collection the track defs for the BS Es and LuBot are the reverse of the RS. So I have fixed the BS track defs. I have adjusted the track positions in the table and reprocessed the data.

Light path (link to Mikes photos documentation)

Polka Dot Beam splitter (PDBS) config info
Track Splitter#

PDBS
Edmund
Optics *1

spliiter
mirror*2
blue splitter window red splitter window
  1 R5000456097-18048 P000001169924-18045 *3 *4
  2 R5000456097-18048 P000001169924-18045 *3 *4
  3 R5000456097-18048 P000001169924-18045 *3 *4
  4 R5000456097-18048 P000001169924-18045 *3 *4
  5 R5000456097-18048 P000001169924-18045 *3 *4
  6 R5000437230-17343 PO#4500190954-18037 *3 *4
  7 R5000422694-17293 PO#4500190954-18037 *3 *4
BLUE jumper cables RED jumper cables
Track Sensors jumper SN# Track Sensors jumper SN#

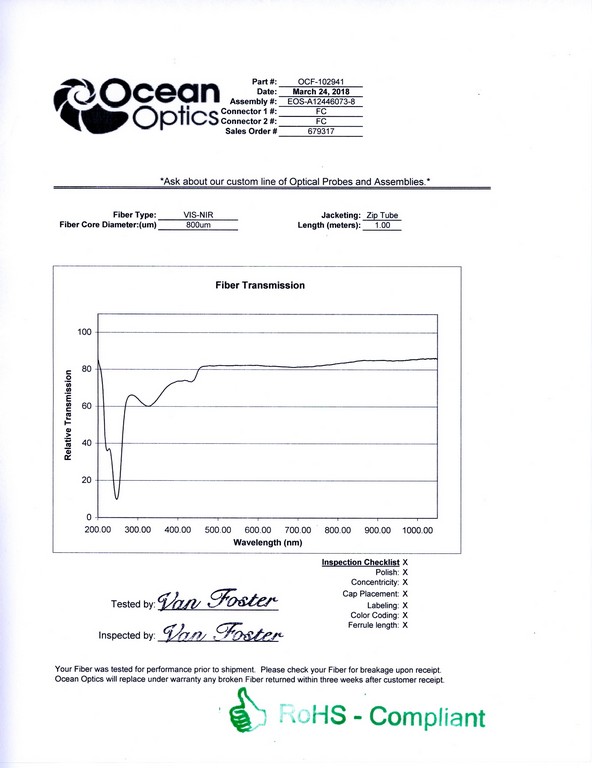

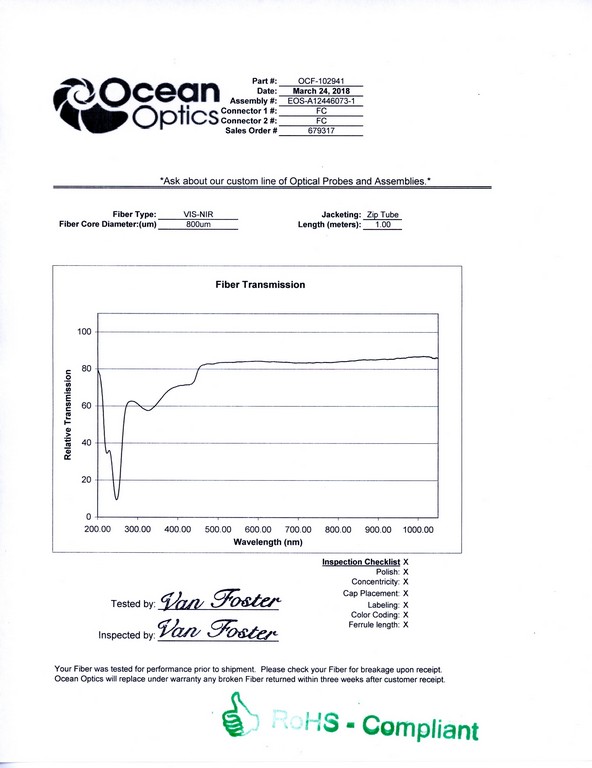

13 Es SN 1 2 Es SN 8

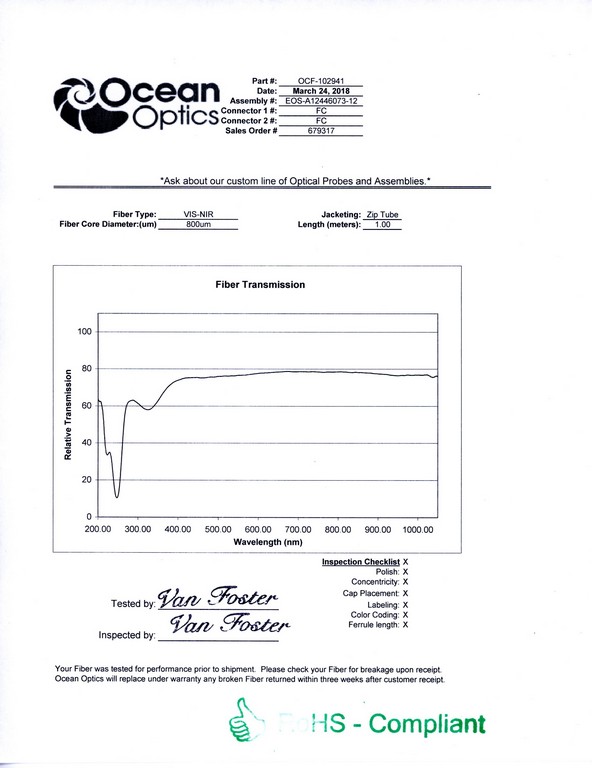

6 LuTop SN 2 6 LuTop SN 12

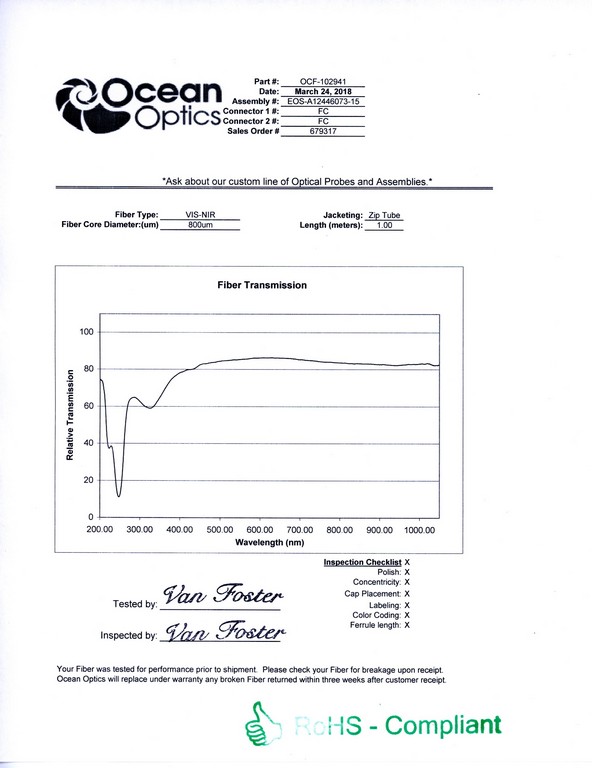

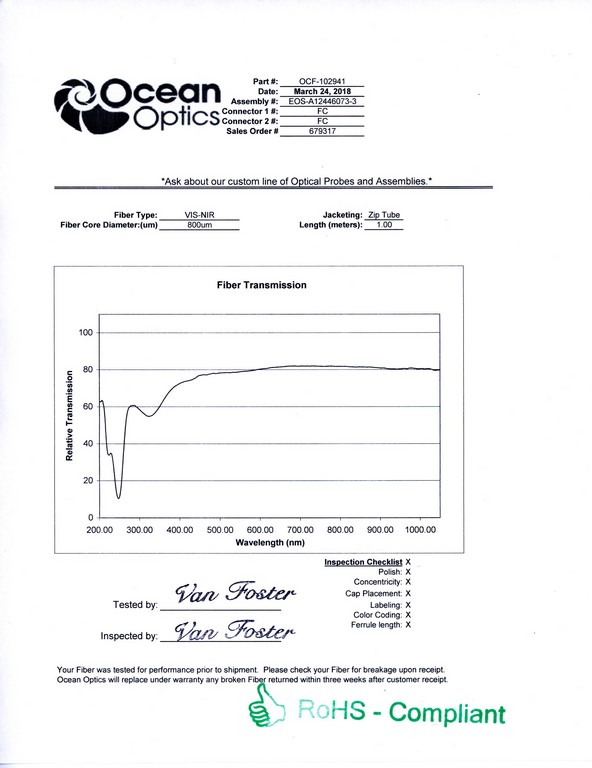

9 LuMid SN 3 9 LuMid SN15
2 LuBot SN 4 13 LuBot SN16
BS03 config - M263 ND filters and irises removed and new version installed RS config - new first time RS on a MOBY deployment.
Track Sensors collector installed shutter SN# iris filter Track Sensors collector installed shutter SN# iris filter
1 none     Yes

1 none     Yes
2 LuBot Yes   Yes   2 Es Yes   Yes
3 none     Yes

3 none     Yes
4 none     Yes   4 none     Yes
5 none     Yes

5 none     Yes
6 LuTop Yes   Yes   6 LuTop Yes   Yes
7 none     Yes

7 none     Yes
8 none     Yes   8 none     Yes
9 LuMid Yes   Yes

9 LuMid Yes   Yes
10 none     Yes   10 none     Yes
11 none     Yes

11 none     Yes
12 none     Yes   12 none     Yes
13 Es Yes   Yes

13 LuBot Yes   Yes
14 none     Yes   14 none     Yes

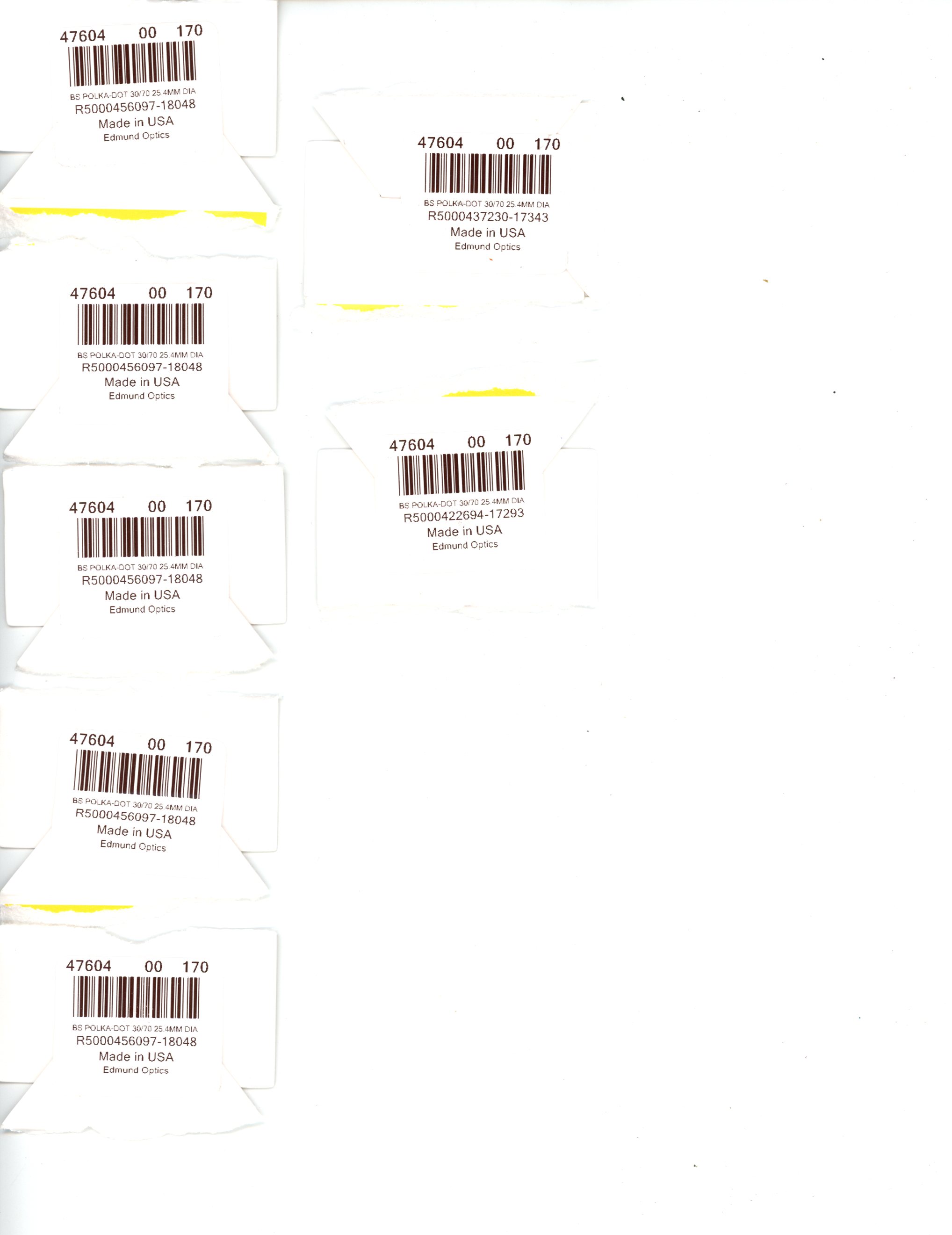

*1: Polka Dot Beam SPlitter (PDBS) Edmund Optics -Info on package: 47604 00 170, BS POLKA-DOT 30/70 25.4MM DIA, Made in USA

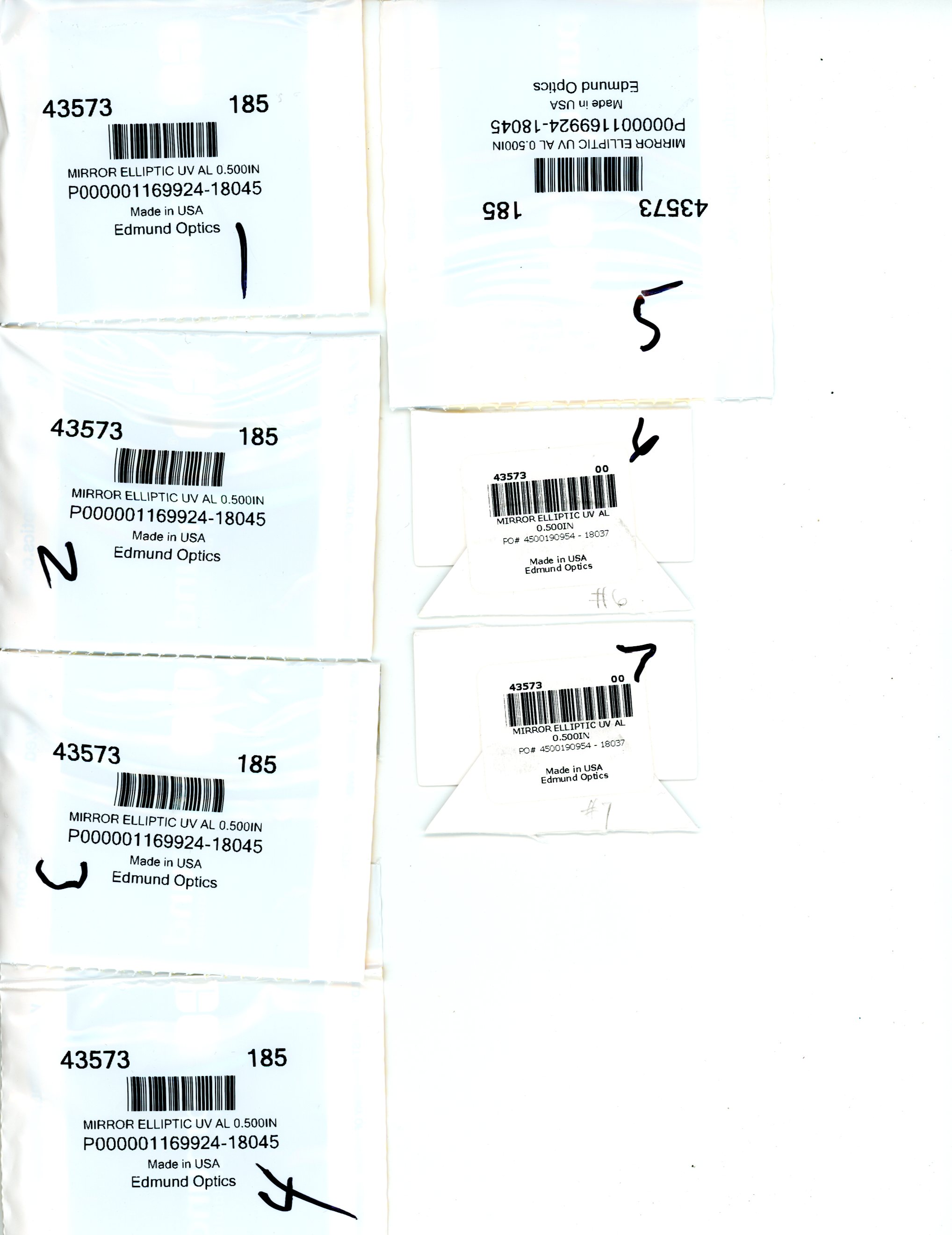

*2: Mirror Edmund Optics (splitter# 1-5)- Info on package: 43573 185 - MIRROR ELLIPTIC UV AL 0.500IN, Made in USA
*2: Mirror Edmund Optics (splitter# 6-7)- Info on package: 43573 00 - MIRROR ELLIPTIC UV AL 0.500IN, Made in USA

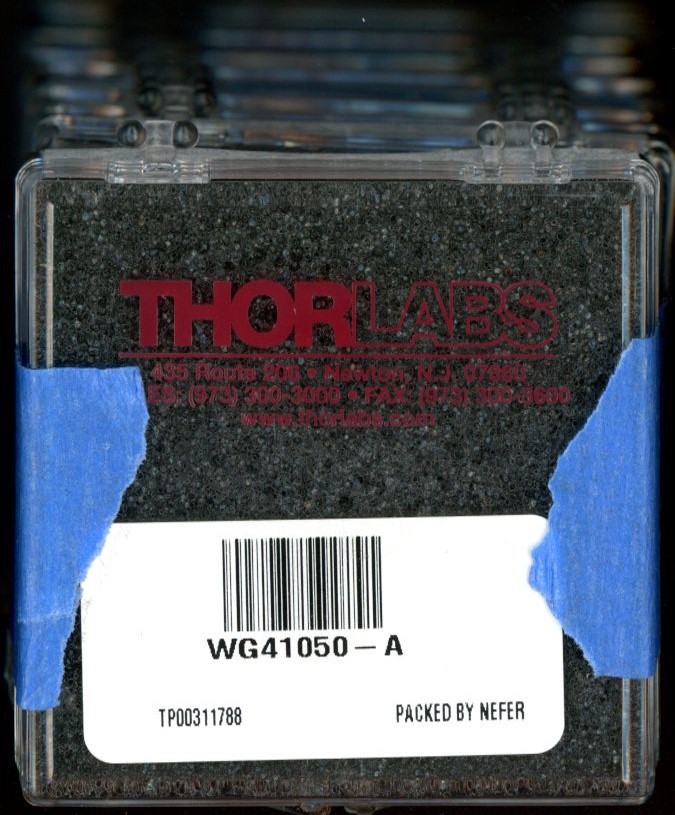

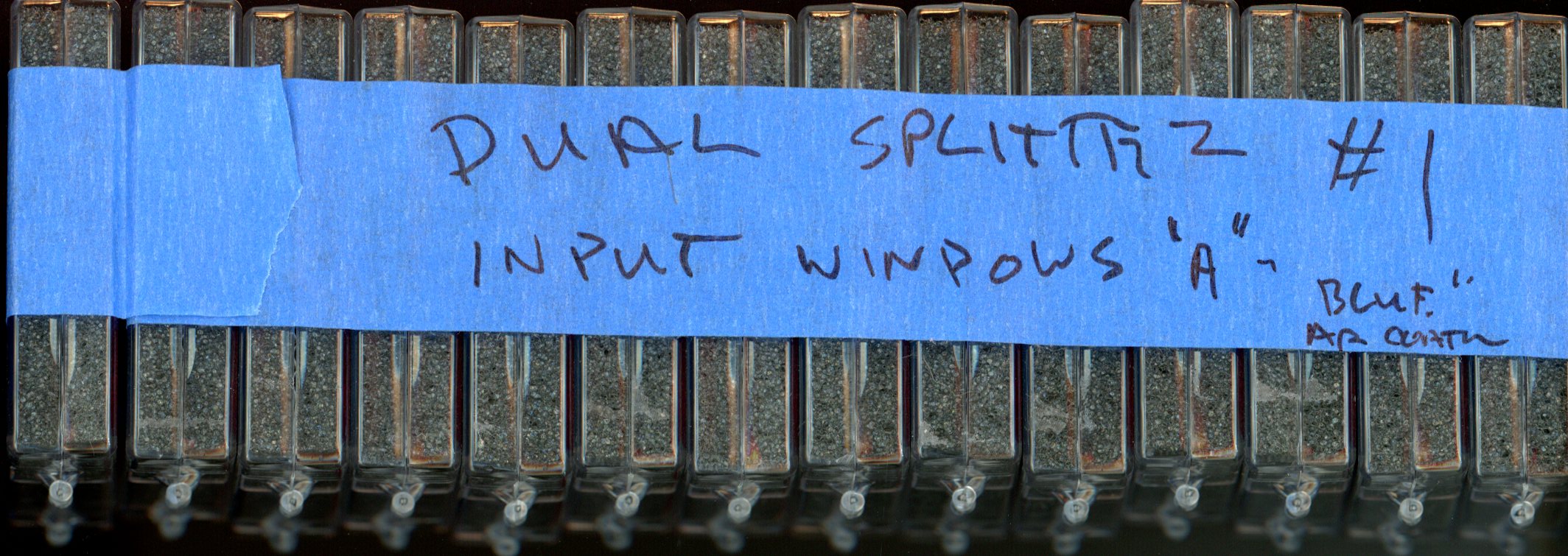

*3: Dual Splitter2 #1. Input Windows "A" - BluF - AR coated. Info on package: ThorLabs - WG41050-A - TP00311788 - Packed by NEFER

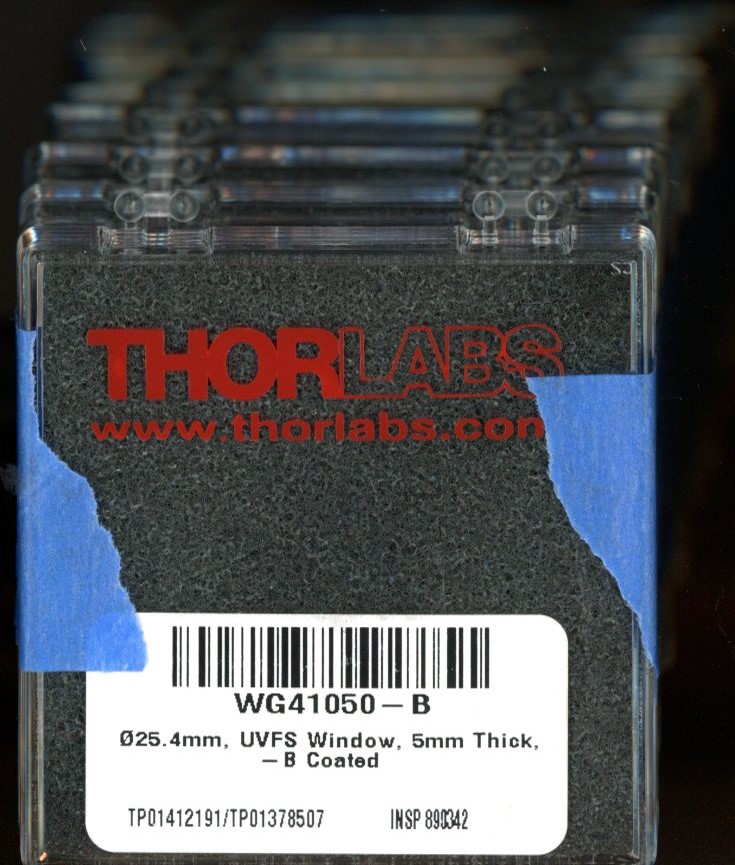

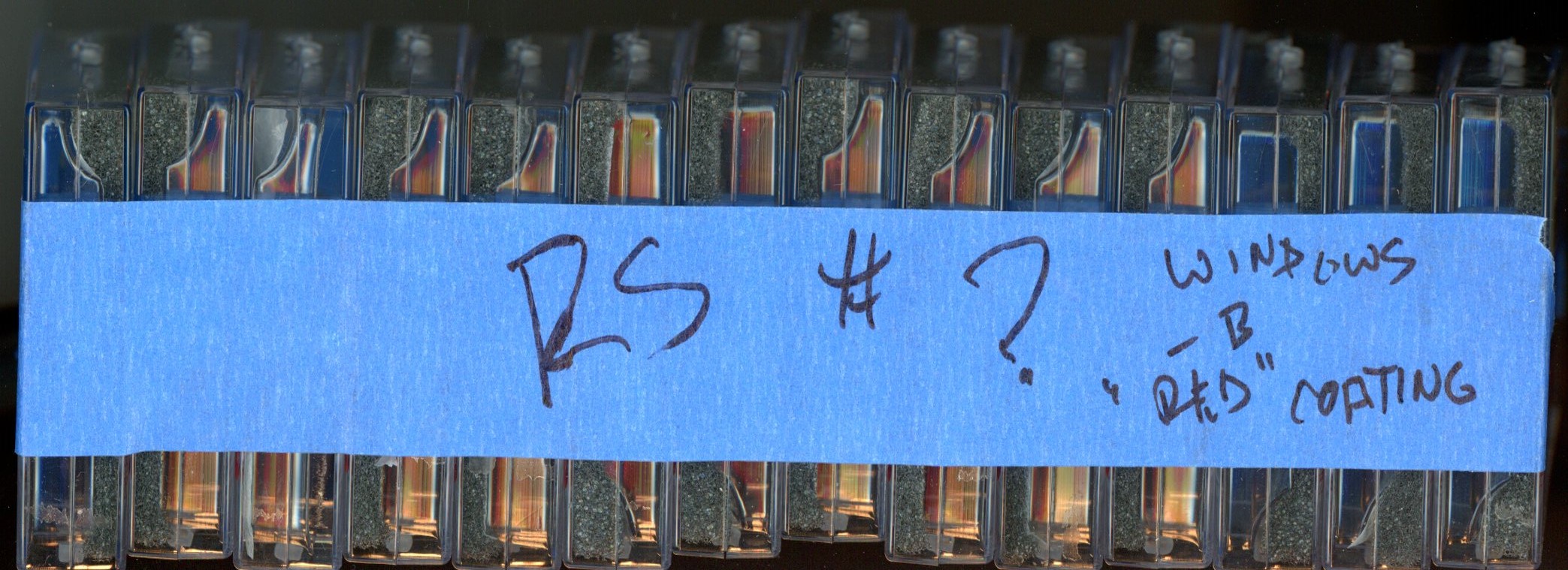

*4: RS #?, Windows "B" - Red coating. Info on package: ThorLabs - WG41050-B - )25.4mm, UVFS Window, 5 mm Thick, - B Coated. TP0141219/TP01378507 INSP 890342

FYI: Yesterday Mark fixed the wiring mixup on the BS03 for pre-M265, where, during M263 the 0V vs 5V shutter close vs open analog return was mixed up for Trk#9 & #10.

BS03cfg005 = The BS03 in M265 received no pre-deployment cals, and the last notes I have from post-M263 cals said BS03cfg004 - which was when I ran it via an external Andor power cube.  So, I think M265 BS03 should be cfg005, which would include repairs Mark made to the internal BS pwr sup (i.e. gain=4 went bad @ post-M263 cals) and the removal of the removal of the M63 ND filters and irises.

RS0?cfg002 = The RS04 got 1 day of pre-M265 pre-cals as RS04cfg001, so yes, I think the assembled instrument in M265 would be RS04cfg002.

Orientation Module data - None

All the raw data files and their images , Table of KEYWORDS variable
Page Number
Link
Description
Date
1.01
26 Jun Raw Data , Table
First in-water HDF file from MOBY. YEA!! File meta data is limited, no date or temp data or the date set info
28 Jun, 2018



Converted data
Page Number
Link
Description
Date
10.01
26 Jun CNV Data , Table
Plotting the one and only in-water data set - converted using postcal rsp from L274
20 Mar 2019



Pre deployment EMAIL from Mike

Hi STeph,

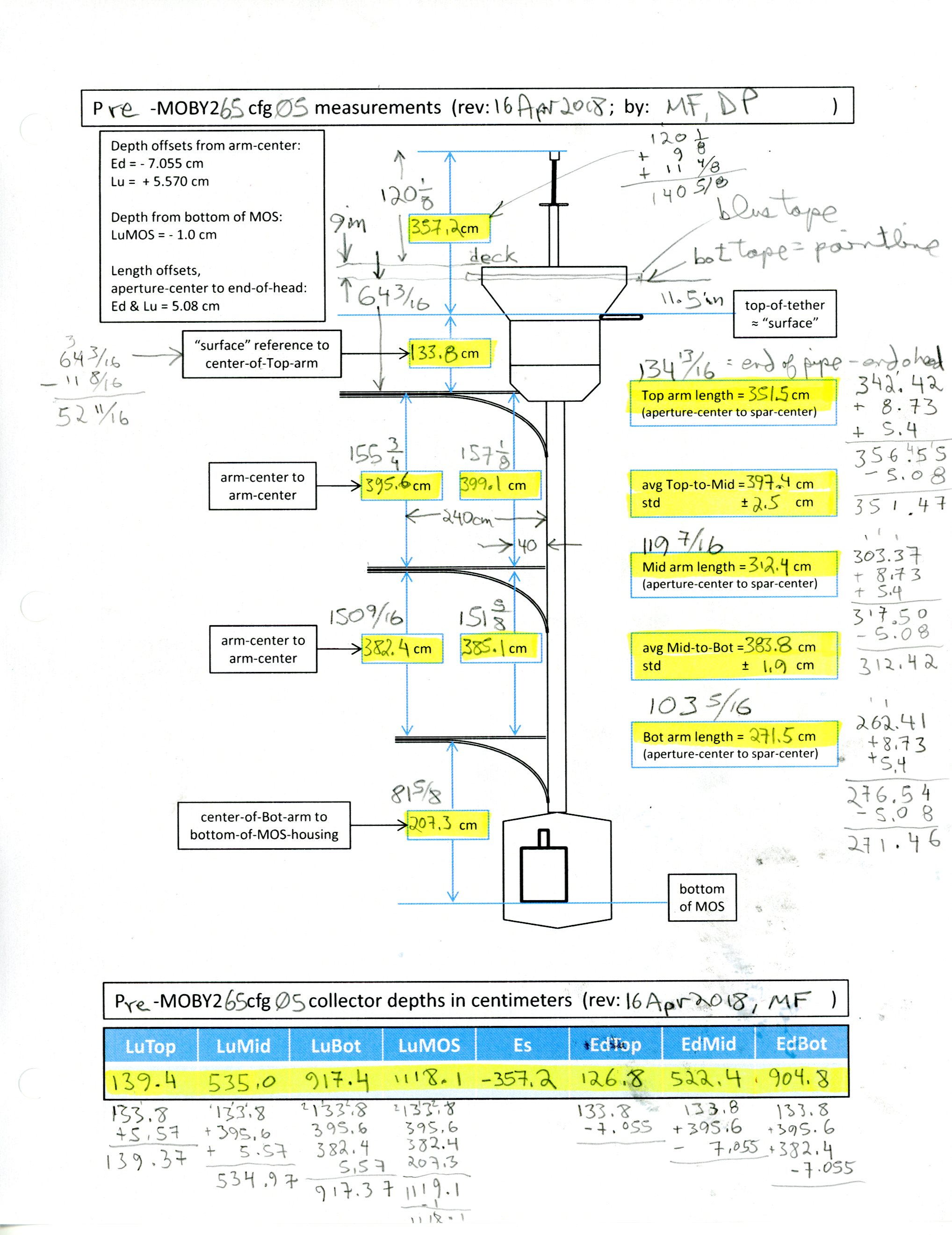

That pre-M265 arm-measurement "doc" I sent you yesterday was improperly named -
it should have been "20180416_pre-M265_arm_measurements.jpg", not ...pre-M263...
<attached: 20180416_pre-M265_arm_measurements.jpg>

Here are some scans of misc optics Mark has been installing in the splitter,
showing the part numbers and batch numbers - when I get a minute I want to
put these into a spreadsheet!
attached:
20180416_pre-M265_splitter_input_windows_blue_1, 2.jpg
20180416_pre-M265_splitter_input_windows_red_1, 2.jpg

There was one re-built FO for pre-M265 MOS LuTop,
here is the 1mm Polymicro fiber used in that:
<attached: 20180409_Pre-M265-MOS-LuTop_Polymicro_1mm_FO#2701.jpg>
MF

Pre deployment EMAIL from Mike - subject: BS03 shtr 5V return fix

FYI: Yesterday Mark fixed the wiring mixup on the BS03 for pre-M265,
where, during M263 the 0V vs 5V shutter close vs open analog return
was mixed up for Trk#9 & #10.

Post-deployment email from Mike

HI StePh,

The BS03 in M265 received no pre-deployment cals, and the last notes I have
from post-M263 cals said BS03cfg004 - which was when I ran it via an external Andor
power cube.  So, I think M265 BS03 should be cfg005, which would include
repairs Mark made to the internal BS pwr sup (i.e. gain=4 went bad @ post-M263 cals)
and the removal of the removal of the M63 ND filters and irises.

The RS04 got 1 day of pre-M265 pre-cals as RS04cfg001, so yes, I think the assembled
instrument in M265 would be RS04cfg002.

I have not yet tried to look at the HDF file (aside from with Sean briefly yesterday),
and I'll have to study your M265 parts tables for the BS & RS,
but today I want to finish getting a fiber strung between the laser-in-the-cal-van
and the tent ...before Ken flys out of here tomorrow...
MF

telcon on 28 Jun 2018 art on telcon

Still can not get data on the RSG. It will turn on and then stop working. Art tried everytime. Ken suggests trying to get data with someone out at the buoy and Art turning on the power.

DARK/BACKGROUND NOTE: For the MOBY262 I had gotten the dark and backgrounds mixed up. For this data set and all going forward we will swtich back to the correct names.

Dark, Backgrounds, Ambient definition table for Resonon data collection
Name Camera (internal shutter) Track (external shuuter) Other
Backgrounds closed open
Darks opens closed
Ambients opens open lights/lamp off or lamp Occluded

This filenaming convesion now matches the MOBY team's normal understanding of Darks and Backgrounds.
