MOBY262 experiment with new MOBYrefresh - testing of the spec for the MOBY262 deployment - BS01cfg007

Second in-water data set with MOBY installed in MOBY262 and deployed 16 Feb 2016. Because of worries about batteries causing problems in the spectrograph the falcon did not have a battery for this deployment. This caused problems for Art getting his automated programs working. In addition when Art tried to open or close the extrenal shutters via the LabJack about 75% of the time this would lock up the camera and it would not take data. So we are not taking any background data for this deployment. This means we open the shutters and then take darks (with the camera shutter closed) and lites with out having to change the external shutters. Also there are no Ed heads on this buoy so there are no Ed data collected. Iris's have been added to the Es and Lu tracks to reduce the light coming in and increase the integration times

This BS had iris added, but no Neutral Density (ND) filters..

Carol's list of good tests to do.

  1.    Illuminate 1 track at a time with lots of signal for cross track scattering characterization
  2.    Use Fraunhofer lines to characterize the wavelength stability from Es (could do same for the MOS Es on 262 for comparison)
  3.    Track stability is there an algorithm such as moment analysis so this could be automated?
  4.    Cross calibrate the Lu’s we can with MOS
  5.    Trend the “relative” KL’s from the ratios of the three track net signals in each Lu image
  6.    Compare statistics of measurements between BS01 and MOS to see if simultaneous is really better than sequential; investigate integration time and # scans acquired to the extent possible or that makes any sense
  7.    Trend the relative (inter track) spectral responsivity ? I’m wondering if we assume KL is constant in the blue (KL15=KL19=KL59) then you can expect the signal ratios S1/S5 and S9/S5 to = exp(+/- 4KL) x the appropriate track responsivity ratios? If so, then this should be constant over the deployment.
  8. Mark added getting a diver cal

DARK/BACKGROUND NOTE: For the MOBY262 I had gotten the dark and backgrounds mixed up. For this data set and all going forward we will swtich back to the correct names.

Dark, Backgrounds, Ambient definition table for Resonon data collection
Name Camera (internal shutter) Track (external shuuter) Other
Backgrounds closed open
Darks opens closed
Ambients opens open lights/lamp off or lamp Occluded

This filenamingconvesion now matches the MOBY team's normal understanding of Darks and Backgrounds.

Pre-262 testing data - Hawaii-2017-01

Orientation Module data

Problems seen (and solved):

  1. 27 March - A problem with the Es data started. Looks like a slipping optical element, with UV light being lost the most (see Page Num 100.07). There is also a change in the fraunhofer lines at this date but for all tracks, Es and Lu (see Page Num 100.08). Turns out the large change in Es was bird poop. But this does not explain the shift in wvelengths on all Es and Lu tracks on the same day the Es problem started.

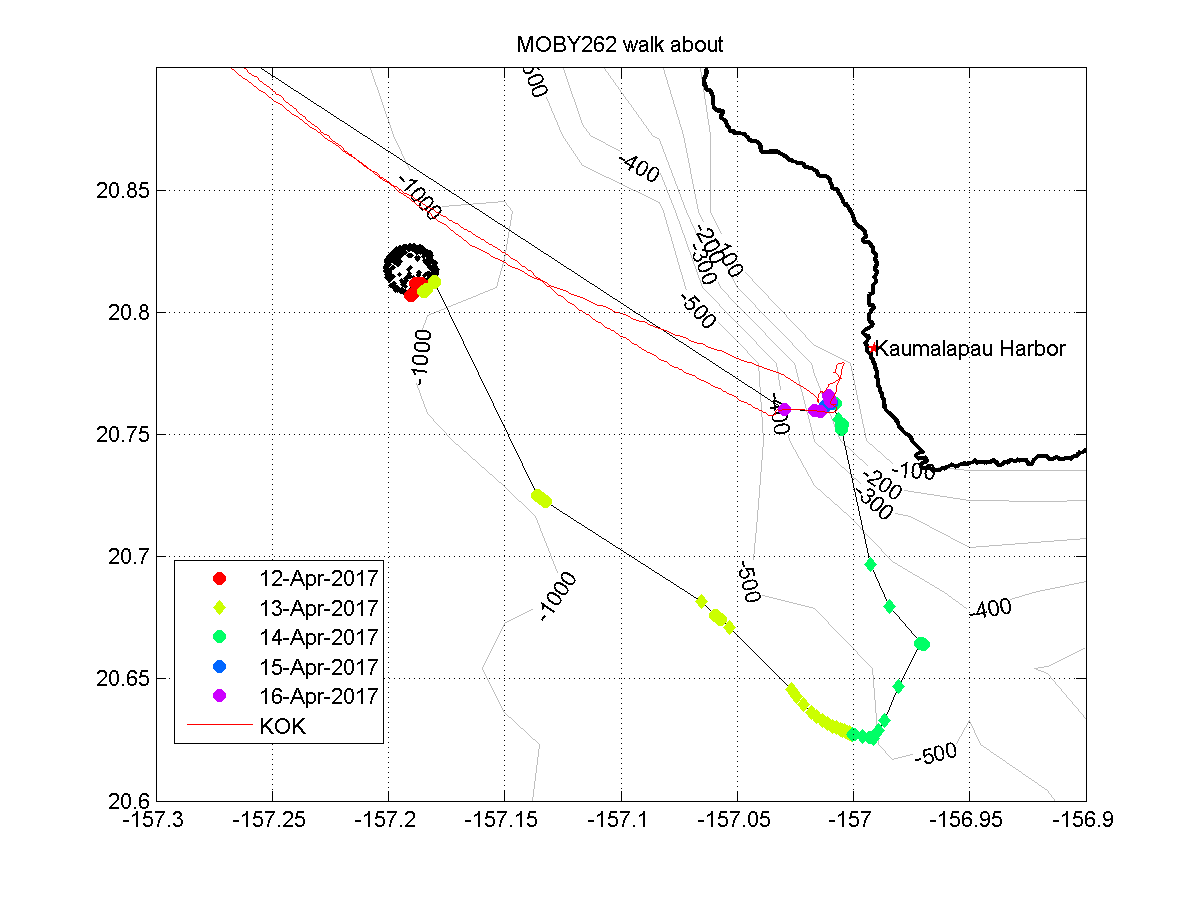

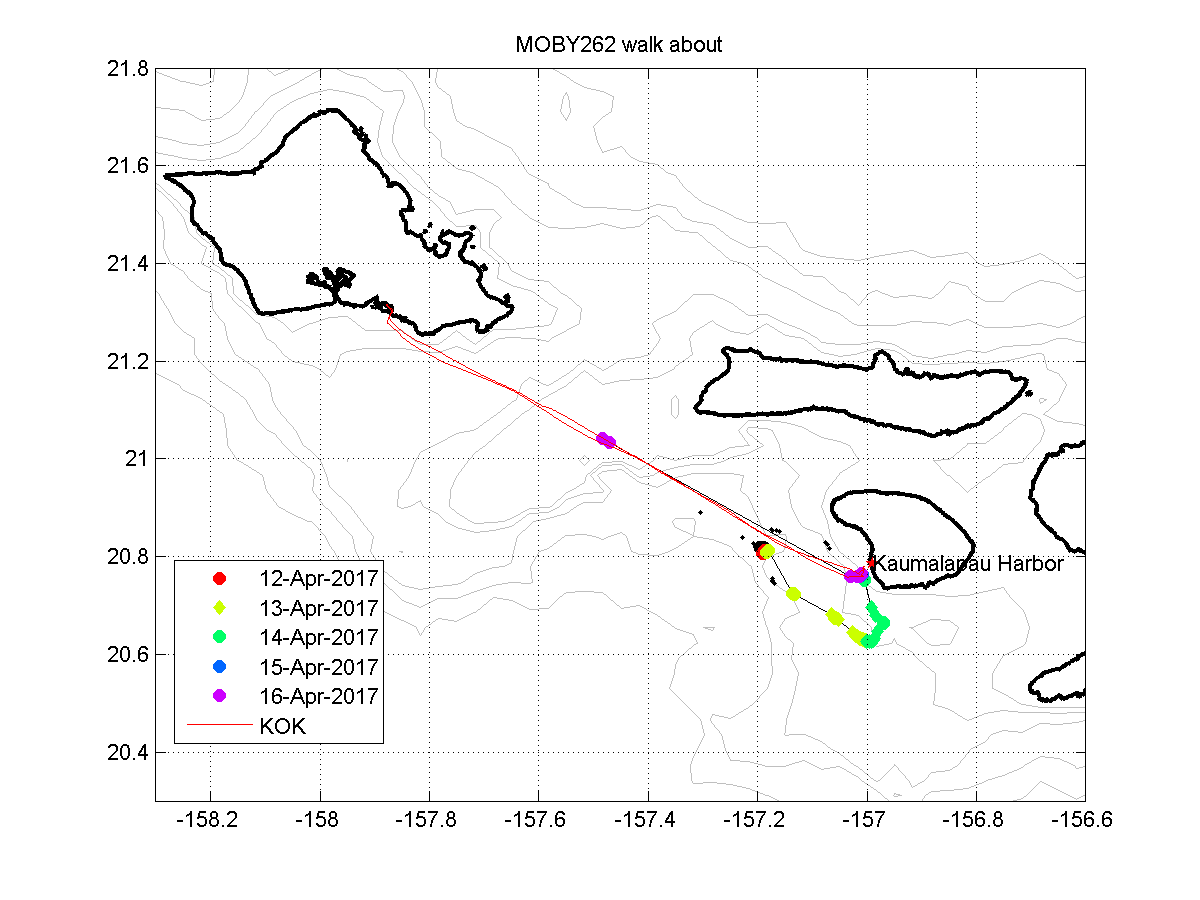

  2. 12 April - MOBY and mooring went on a walkabout. They where recovered and returned to Honolulu. The MOBY262 cals where checked and they where fine. So on May 10th the mooring was redeployed and on the 11th MOBY262 was put back in the water.
  3. After redeployment there was a large change in the track position (5-6 pixels) and a large change in the wavelengths (less in the blue more in the red). See Page Num 100.10 and 100.08
  4. Also when looking at the BS01 Kls on the day the Es problem started the Kls started to diverge and this divergance has continued through the redeployment of the buoy. It looks like the problem is in the LuMid data. See Page num 100.18 figure 3.
  5. Tracks are slanted by ~ 2-3 pixels, See page num 100.12
  6. Problems with the external shutter means only backgrounds where collected this deployment. When opening and closing the external shutters the whole system locked up or stopped functioning and had to be restarted to get it working again. So on background where collected.
  7. No battery in the BSG means Art had to come up with a new procedure to turn the system on and set the time.
  8. Peak in Es data at ~ wavlength 349-350 from the beginning of the deployment until ~May-28th. Not sure why, see Page Num 100.20.

The data collection sequence for this deployment is ...
3 dark (open external, closed internal)
5 light (Es and Lu)
3 dark
terminate communication with camera, change shutters, reinitialize camera
3 dark
5 light (Lu only)
3 dark

MOBY262 precal responses

Data plots that cover more than 1 day
100.01 Track movement In-water data track movement = obsolete, use Page Num 100.10 Mar 21, 2017
100.02 Es Fraun Lines Tracking the Track 1 Es Fraunhofer lines = obsolete, use Page Num 100.08 Mar 21, 2017
100.03 In-water time series In-water time series of Lu, and Es data and rough system response from MOBY = obsolete, use Page Num 100.05. 100.06 and 100.07 Mar 21, 2017
100.04 In-water backgrounds time series In-water BACKGROUNDS of Lu,Ed and Es data = obsolete, use Page Num 100.09 Mar 21, 2017
Below are the newer graphs using the MLDbased data sets - from the new wider full track defintions
100.05 In-water time series CNV In-water time series of Lu,band Es data using Mikes precal system response and compared to MOBY - spectral and time series Mar 23, 2017
100.06 In-water derived data Derived data, Es/Lu data set, Good and questionable only, Kl1, Lw1 and Lwn1 (different wavelength interp options) - spectral Mar 23, 2017
100.07 In-water converted data Converted data (Es and Lu), individual files compared - spectral Mar 23, 2017
100.08 Es/Lu Fraun Lines Tracking the Fraunhofer lines (Es and Lu) Apr 10, 2017
100.09 Backgrounds Looking at in-water backgrounds in a number of ways Apr 11, 2017
100.10 Track movement Looking a track movement for 3 cross track pixels for each of the Es and Lu tracks Apr 11, 2017
100.11 cross track Cross Track light from Track 1, 9, 11 and 13 Apr 18, 2017
100.12 Track edges Looking at Track edge from Track 1, 9, 11 and 13 (curvature. movement, etc) Apr 18, 2017
100.13 VIRS_NPP Lu plots Comparing MOBY and Resonon BS01 satellite data for Lu data - Satelitte weighted each wave a difference graph Apr 19, 2017
100.14 VIRS_NPP Es plots Comparing MOBY and Resonon BS01 satellite data for Es data - Satelitte weighted each wave a difference graph Apr 19, 2017
100.15 VIRS_NPP Lw plots Comparing MOBY and Resonon BS01 satellite data for Lw data - Satelitte weighted each wave a difference graph Apr 19, 2017
100.16 In-water Es.Lu,Kl and Lw - DS1 Converted/derived data (Es, Lu, Kl and Lw for Es/Lu data sets), individual files compared - spectral Apr 19, 2017
100.17 In-water Es.Lu,Kl and Lw - DS2 Converted/derived data (Es, Lu, Kl and Lw for Lu data sets), individual files compared - spectral Apr 19, 2017
100.18 Lu, Lw, Es and Kl Comparing MOBY and Resonon BS01 satellite data for Lu,Lw, Es anf Kl data - Satelitte weighted all waves one graph May 16, 2017
100.19 Vaux graphs Vaux graphs: showing int time and time collected and zenith angle May 16, 2017
100.20 Es data Another look at Es data during the deployment Oct 16, 2017
100.21 Kl difference Ken wanted to see Kl difference graphs for the BS data to see why they don' match up Oct 19, 2017
100.23 Track shifting Kens track shifting experiment (see Ken's PFD) Oct 24, 2017
100.24 system rsp shifting Shifting the system response by X pixels Oct 31, 2017
100.25 Lu data Another look at LuTop data during the deployment Nov 1, 2017
100.26 Kl/Lw stability Using Kl or Lw differences to look at stability 5 Mar 2018
100.50 Track shift exp Making a track wider by 1 pixel at a time to test full track definitions (day 06 data_ Oct 31, 2017
100.102 Lu in-water rsp Lu in-water "rsp" to see when responses changed Oct 23, 2018
100.103 Es in-water rsp Es in-water "rsp" to see when responses changed Oct 23, 2018
Below are the newer graphs using the MLDbased data sets - normal narrow track definitions
101.05** In-water time series CNV In-water time series of Lu,band Es data using Mikes precal system response and compared to MOBY - spectral and time series Mar 23, 2017
101.06** In-water derived data Derived data, Es/Lu data set, Good and questionable only, Kl1, Lw1 and Lwn1 (different wavelength interp options) - spectral Mar 23, 2017
101.07** In-water converted data Converted data (Es and Lu), individual files compared - spectral Mar 23, 2017
101.08** Es/Lu Fraun Lines Tracking the Fraunhofer lines (Es and Lu) Apr 10, 2017
101.09** Backgrounds Looking at in-water backgrounds in a number of ways Apr 11, 2017
101.10** Track movement Looking a track movement for 3 cross track pixels for each of the Es and Lu tracks Apr 11, 2017
101.11** cross track Cross Track light from Track 1, 9, 11 and 13 Apr 18, 2017
101.12** Track edges Looking at Track edge from Track 1, 9, 11 and 13 (curvature. movement, etc) Apr 18, 2017
101.13** VIRS_NPP Lu plots Comparing MOBY and Resonon BS01 satellite data for Lu data - Satelitte weighted each wave a difference graph Apr 19, 2017
101.14** VIRS_NPP Es plots Comparing MOBY and Resonon BS01 satellite data for Es data - Satelitte weighted each wave a difference graph Apr 19, 2017
101.15** VIRS_NPP Lw plots Comparing MOBY and Resonon BS01 satellite data for Lw data - Satelitte weighted each wave a difference graph Apr 19, 2017
101.16** In-water Es.Lu,Kl and Lw - DS1 Converted/derived data (Es, Lu, Kl and Lw for Es/Lu data sets), individual files compared - spectral Apr 19, 2017
101.17** In-water Es.Lu,Kl and Lw - DS2 Converted/derived data (Es, Lu, Kl and Lw for Lu data sets), individual files compared - spectral Apr 19, 2017
101.18** Lu, Lw, Es and Kl Comparing MOBY and Resonon BS01 satellite data for Lu,Lw, Es anf Kl data - Satelitte weighted all waves one graph May 16, 2017
101.19** Vaux graphs Vaux graphs: showing int time and time collected and zenith angle May 16, 2017
101.20** Es data Another look at Es data during the deployment Oct 16, 2017
101.21** Kl difference Ken wanted to see Kl difference graphs for the BS data to see why they don' match up Oct 19, 2017
101.50** Track shift exp Making a track wider by 1 pixel at a time to test full track definitions (day 06 data_ Aug 25, 2017
Full Track data check - OLD versions
200.07 In-water converted data Converted data (Es and Lu), individual files compared - spectral
200.18 Lu, Lw, Es and Kl Comparing MOBY and Resonon BS01 satellite data for Lu,Lw, Es anf Kl data - Satelitte weighted all waves one graph

All the raw data files and their images , Table of KEYWORDS variable
Page Number
Link
Description
Date
1.01
Day 01 - 10 Mar Raw Data , Table
Day 01 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.02
Day 02 - 11 Mar Raw Data , Table
Day 02 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.03
Day 03 - 12 Mar Raw Data , Table
Day 03 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.04
Day 04 - 13 Mar Raw Data , Table
Day 04 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.05
Day 05 - 14 Mar Raw Data , Table
Day 05 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.06
Day 06 - 15 Mar Raw Data , Table
Day 06 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.07
Day 07 - 16 Mar Raw Data , Table
Day 07 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.08
Day 08 - 17 Mar Raw Data , Table
Day 08 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.09
Day 09 - 18 Mar Raw Data , Table
Day 09 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.10
Day 10 - 19 Mar Raw Data , Table
Day 10 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.11
Day 11 - 20 Mar Raw Data , Table
Day 11 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 21, 2017
1.12
Day 12 - 21 Mar Raw Data , Table
Day 12 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 22, 2017
1.13
Day 13 - 22 Mar Raw Data , Table
Day 13 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 23, 2017
5 minute pause added after Cameras temperature stabilized to see how this affected darks (24 Mar - 2 April) - See Page Num 100.04
1.14
Day 14 - 24 Mar Raw Data , Table
Day 14 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 27, 2017
1.15
Day 15 - 25 Mar Raw Data , Table
Day 15 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 27, 2017
1.16
Day 16 - 26 Mar Raw Data , Table
Day 16 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 27, 2017
A problem with the Es data started here. Looks like a slipping optical element, with UV light being lost the most (see Page Num 100.07). There is also a change in the fraunhofer lines at this date but for all tracks, Es and Lu (see Page Num 100.08).
1.17
Day 17 - 27 Mar Raw Data , Table
Day 17 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 28, 2017
1.18
Day 18 - 28 Mar Raw Data , Table
Day 18 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 29, 2017
1.19
Day 19 - 29 Mar Raw Data , Table
Day 19 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Mar 30, 2017
1.20
Day 20 - 30 Mar Raw Data , Table
Day 20 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 03, 2017
1.21
Day 21 - 31 Mar Raw Data , Table
Day 21 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 03, 2017
1.22
Day 22 - 01 Apr Raw Data , Table
Day 22 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 03, 2017
1.23
Day 23 - 02 Apr Raw Data , Table
Day 23 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 03, 2017
Changed data collection time to when the 22 hour file collects data (previously is was the 20 MOBY file)
1.24
Day 24 - 03 Apr Raw Data , Table
Day 24 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 04, 2017
1.25
Day 25 - 04 Apr Raw Data , Table
Day 25 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 05, 2017
1.26
Day 26 - 05 Apr Raw Data , Table
Day 26 -MOBY262 - in-water - automate program data collected during MOBY files@ -60C
Apr 06, 2017
1.27
Day 27 - 06 Apr Raw Data , Table
Day 27 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 07, 2017
1.28
Day 28 - 07 Apr Raw Data , Table
Day 28 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 10, 2017
1.29
Day 29 - 08 Apr Raw Data , Table
Day 29 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 10, 2017
1.30
Day 30 - 09 Apr Raw Data , Table
Day 30 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 10, 2017
1.31
Day 31 - 10 Apr Raw Data , Table
Day 31 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 12, 2017
1.32
Day 32 - 11 Apr Raw Data , Table
Day 32 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 12, 2017
1.33
Day 33 - 12 Apr Raw Data , Table
Day 33 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Apr 13, 2017
MOBY goes on a walk about starting on the evening of the 12th of April and takes the mooring with it. The data collected on the 13th of April was collected at 7 am Hawaii time to see if the arms looked OK. And they do. Mark is having a local fishing charter boat to try and tow the buoy to about 200fm and try to anchor it in the lee of Lanai using conventional anchoring. Furthure data collection has been turned off. MOBY and mooring will be recovered on Saturday 15 April but the MOBY team on the KOK
1.34
Day 34 - 13 Apr Raw Data , Table
Day 34 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C - MOBY on walkabout - short data set at 7 am.
Apr 13, 2017
May 10-11 MOBY-L161 cruise the new mooring was deployed and MOBY262 was redeployed. The BS01 Es are back to normal (bird poop cleaned off). There was a 6 pixel track movement and some wavelength movement. Also the Kls continue to diverge.
1.35
Day 35 - 12 May Raw Data , Table
Day 35 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 17, 2017
1.36
Day 36 - 13 May Raw Data , Table
Day 36 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 17, 2017
1.37
Day 37 - 14 May Raw Data , Table
Day 37 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 17, 2017
1.38
Day 38 - 15 May Raw Data , Table
Day 38 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 17, 2017
1.39
Day 39 - 16 May Raw Data , Table
Day 39 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 19, 2017
1.40
Day 40 - 17 May Raw Data , Table
Day 40 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 19, 2017
1.41
Day 41 - 18 May Raw Data , Table
Day 41 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 19, 2017
1.42
Day 42 - 19 May Raw Data , Table
Day 42 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 22, 2017
1.43
Day 43 - 21 May Raw Data , Table
Day 43 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 22, 2017
1.44
Day 44 - 23 May Raw Data , Table
Day 44 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 24, 2017
1.45
Day 45 - 26 May Raw Data , Table
Day 45 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 26, 2017
1.46
Day 46 - 27 May Raw Data , Table
Day 46 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 28, 2017
1.47
Day 47 - 28 May Raw Data , Table
Day 47 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 30, 2017
1.48
Day 48 - 30 May Raw Data , Table
Day 48 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
May 31, 2017
Hard drive filled up and we had problems with the MOBY linux computer not booting. Once the linux problem better becaue Mark installed a new campbell program the BS hard drive was cleaned up and BS data collection conintued
1.49
Day 49 - 13 Jun Raw Data , Table
Day 49 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 13, 2017
1.50
Day 50 - 14 Jun Raw Data , Table
Day 50 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 15, 2017
1.51
Day 51 - 16 Jun Raw Data , Table
Day 51 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 20, 2017
1.52
Day 52 - 17 Jun Raw Data , Table
Day 52 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 20, 2017
1.53
Day 53 - 19 Jun Raw Data , Table
Day 53 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 20, 2017
1.54
Day 54 - 20 Jun Raw Data , Table
Day 54 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 21, 2017
1.55
Day 55 - 22 Jun Raw Data , Table
Day 55 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 26, 2017
1.56
Day 56 - 23 Jun Raw Data , Table
Day 56 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 26, 2017
1.57
Day 57 - 24 Jun Raw Data , Table
Day 57 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 26, 2017
1.58
Day 58 - 25 Jun Raw Data , Table
Day 58 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 26, 2017
1.59
Day 59 - 26 Jun Raw Data , Table
Day 59 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 27, 2017
1.60
Day 60 - 27 Jun Raw Data , Table
Day 60 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 28, 2017
1.61
Day 61 - 28 Jun Raw Data , Table
Day 61 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 29, 2017
1.62
Day 62 - 29 Jun Raw Data , Table
Day 62 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jun 30, 2017
1.63
Day 63 - 01 Jul Raw Data , Table
Day 63 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 03, 2017
1.64
Day 64 - 02 Jul Raw Data , Table
Day 64 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 03, 2017
1.65
Day 65 - 03 Jul Raw Data , Table
Day 65 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 05, 2017
1.66
Day 66 - 05 Jul Raw Data , Table
Day 66 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 06, 2017
1.67
Day 67 - 07 Jul Raw Data , Table
Day 67 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 11, 2017
1.68
Day 68 - 08 Jul Raw Data , Table
Day 68 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 11, 2017
1.69
Day 69 - 09 Jul Raw Data , Table
Day 69 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 11, 2017
1.70
Day 70 - 11 Jul Raw Data , Table
Day 70 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.71
Day 71 - 12 Jul Raw Data , Table
Day 71 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.72
Day 72 - 13 Jul Raw Data , Table
Day 72 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.73
Day 73 - 14 Jul Raw Data , Table
Day 73 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.74
Day 74 - 15 Jul Raw Data , Table
Day 74 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.75
Day 75 - 16 Jul Raw Data , Table
Day 75 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.76
Day 76 - 17 Jul Raw Data , Table
Day 76 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 18, 2017
1.77
Day 77 - 18 Jul Raw Data , Table
Day 77 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 24, 2017
1.78
Day 78 - 19 Jul Raw Data , Table
Day 78 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 24, 2017
1.79
Day 79 - 20 Jul Raw Data , Table
Day 79 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 24, 2017
1.80
Day 80 - 21 Jul Raw Data , Table
Day 80 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 24, 2017
1.81
Day 81 - 22 Jul Raw Data , Table
Day 81 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 24, 2017
1.82
Day 82 - 23 Jul Raw Data , Table
Day 82 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 24, 2017
1.83
Day 83 - 24 Jul Raw Data , Table
Day 83 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 25, 2017
1.84
Day 84 - 24 Jul Raw Data , Table
Day 84 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 26, 2017
1.85
Day 85 - 25 Jul Raw Data , Table
Day 85 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 26, 2017
1.86
Day 86 - 26 Jul Raw Data , Table
Day 86 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 27, 2017
1.87
Day 87 - 26 Jul Raw Data , Table
Day 87 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 28, 2017
1.88
Day 88 - 27 Jul Raw Data , Table
Day 88 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 28, 2017
1.89
Day 89 - 28 Jul Raw Data , Table
Day 89 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 31, 2017
1.90
Day 90 - 30 Jul Raw Data , Table
Day 90 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Jul 31, 2017
1.91
Day 91 - 31 Jul Raw Data , Table
Day 91 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Aug 01, 2017
1.92
Day 92 - 01 Aug Raw Data , Table
Day 92 - MOBY262 - in-water - automate program data collected during MOBY files @ -60C
Aug 02, 2017
DAILY WEBPAGE created by automated program
Day# Date in-water darks/bckgrd In-water Nets Date added
01 10 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
02 11 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
03 12 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
04 13 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
05 14 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
06 15 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
07 16 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
08 17 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
09 18 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
10 19 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
11 20 Mar in-water darks/bckgrd in-water nets Mar 21, 2017
12 21 Mar in-water darks/bckgrd in-water nets Mar 23, 2017
13 22 Mar in-water darks/bckgrd in-water nets Mar 23, 2017

5 minute pause added after Cameras temperature stabilized to see how this affected darks (24 Mar - 2 April)

14 24 Mar in-water darks/bckgrd in-water nets Mar 27, 2017
15 25 Mar in-water darks/bckgrd in-water nets Mar 27, 2017
16 26 Mar in-water darks/bckgrd in-water nets Mar 27, 2017
A problem with the Es data started here. Looks like a slipping optical element, with UV light being lost the most (see Page Num 100.07). There is also a change in the fraunhofer lines at this date but for all tracks, Es and Lu (see Page Num 100.08).
17 27 Mar in-water darks/bckgrd in-water nets Mar 28, 2017
18 28 Mar in-water darks/bckgrd in-water nets Mar 29, 2017
19 29 Mar in-water darks/bckgrd in-water nets Mar 30, 2017
20 30 Mar in-water darks/bckgrd in-water nets Apr 03, 2017
21 31 Mar in-water darks/bckgrd in-water nets Apr 03, 2017
22 01 Apr in-water darks/bckgrd in-water nets Apr 03, 2017
23 02 Apr in-water darks/bckgrd in-water nets Apr 03, 2017
Changed data collection time to when the 22 hour file collects data (previously is was the 20 MOBY file)
24 03 Apr in-water darks/bckgrd in-water nets Apr 04, 2017
25 04 Apr in-water darks/bckgrd in-water nets Apr 05, 2017
26 05 Apr in-water darks/bckgrd in-water nets Apr 06, 2017
27 06 Apr in-water darks/bckgrd in-water nets Apr 07, 2017
28 07 Apr in-water darks/bckgrd in-water nets Apr 10, 2017
29 08 Apr in-water darks/bckgrd in-water nets Apr 10, 2017
30 09 Apr in-water darks/bckgrd in-water nets Apr 10, 2017
31 10 Apr in-water darks/bckgrd in-water nets Apr 12, 2017
32 11 Apr in-water darks/bckgrd in-water nets Apr 12, 2017
33 12 Apr in-water darks/bckgrd in-water nets Apr 13, 2017
MOBY goes on a walk about starting on the evening of the 12th of April and takes the mooring with it. The data collected on the 13th of April was collected at 7 am Hawaii time to see if the arms looked OK. And they do. Mark is having a local fishing charter boat to try and tow the buoy to about 200fm and try to anchor it in the lee of Lanai using conventional anchoring. Furthure data collection has been turned off. MOBY and mooring will be recovered on Saturday 15 April but the MOBY team on the KOK
May 10-11 MOBY-L161 cruise the new mooring was deployed and MOBY262 was redeployed. The BS01 Es are back to normal (bird poop cleaned off). There was a 6 pixel track movement and some wavelength movement. Also the Kls continue to diverge.
35 12 May in-water darks/bckgrd in-water nets May 17, 2017
36 13 May in-water darks/bckgrd in-water nets May 17, 2017
37 14 May in-water darks/bckgrd in-water nets May 17, 2017
38 15 May in-water darks/bckgrd in-water nets May 17, 2017
39 16 May in-water darks/bckgrd in-water nets May 19, 2017
40 17 May in-water darks/bckgrd in-water nets May 19, 2017
41 18 May in-water darks/bckgrd in-water nets May 19, 2017
42 19 May in-water darks/bckgrd in-water nets May 22, 2017
43 21 May in-water darks/bckgrd in-water nets May 22, 2017
44 23 May in-water darks/bckgrd in-water nets May 24, 2017
45 26 May in-water darks/bckgrd in-water nets May 26, 2017
46 27 May in-water darks/bckgrd in-water nets May 28, 2017
47 28 May in-water darks/bckgrd in-water nets May 30, 2017
48 30 May in-water darks/bckgrd in-water nets May 31, 2017
Hard drive filled up and we had problems with the MOBY linux computer not booting. Once the linux problem better becaue Mark installed a new campbell program the BS hard drive was cleaned up and BS data collection conintued
49 13 Jun in-water darks/bckgrd in-water nets Jun 13, 2017
50 14 Jun in-water darks/bckgrd in-water nets Jun 15, 2017
51 16 Jun in-water darks/bckgrd in-water nets Jun 20, 2017
52 17 Jun in-water darks/bckgrd in-water nets Jun 20, 2017
53 19 Jun in-water darks/bckgrd in-water nets Jun 20, 2017
54 20 Jun in-water darks/bckgrd in-water nets Jun 21, 2017
55 22 Jun in-water darks/bckgrd in-water nets Jun 26, 2017
56 23 Jun in-water darks/bckgrd in-water nets Jun 26, 2017
57 24 Jun in-water darks/bckgrd in-water nets Jun 26, 2017
58 25 Jun in-water darks/bckgrd in-water nets Jun 26, 2017
59 26 Jun in-water darks/bckgrd in-water nets Jun 27, 2017
60 27 Jun in-water darks/bckgrd in-water nets Jun 28, 2017
61 28 Jun in-water darks/bckgrd in-water nets Jun 29, 2017
62 29 Jun in-water darks/bckgrd in-water nets Jun 30, 2017
63 01 Jul in-water darks/bckgrd in-water nets Jul 03, 2017
64 02 Jul in-water darks/bckgrd in-water nets Jul 03, 2017
65 03 Jul in-water darks/bckgrd in-water nets Jul 05, 2017
66 05 Jul in-water darks/bckgrd in-water nets Jul 06, 2017
67 07 Jul in-water darks/bckgrd in-water nets Jul 11, 2017
68 08 Jul in-water darks/bckgrd in-water nets Jul 11, 2017
69 09 Jul in-water darks/bckgrd in-water nets Jul 11, 2017
70 11 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
71 12 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
72 13 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
73 14 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
74 15 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
75 16 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
76 17 Jul in-water darks/bckgrd in-water nets Jul 18, 2017
77 18 Jul in-water darks/bckgrd in-water nets Jul 24, 2017
78 19 Jul in-water darks/bckgrd in-water nets Jul 24, 2017
79 20 Jul in-water darks/bckgrd in-water nets Jul 24, 2017
80 21 Jul in-water darks/bckgrd in-water nets Jul 24, 2017
81 22 Jul in-water darks/bckgrd in-water nets Jul 24, 2017
82 23 Jul in-water darks/bckgrd in-water nets Jul 24, 2017
83 24 Jul in-water darks/bckgrd in-water nets Jul 25, 2017
84 24 Jul in-water darks/bckgrd in-water nets Jul 26, 2017
85 25 Jul in-water darks/bckgrd in-water nets Jul 26, 2017
86 26 Jul in-water darks/bckgrd in-water nets Jul 27, 2017
87 26 Jul in-water darks/bckgrd in-water nets Jul 28, 2017
88 27 Jul in-water darks/bckgrd in-water nets Jul 28, 2017
89 28 Jul in-water darks/bckgrd in-water nets Jul 31, 2017
90 30 Jul in-water darks/bckgrd in-water nets Jul 31, 2017
91 31 Jul in-water darks/bckgrd in-water nets Aug 01, 2017
92 01 Aug in-water darks/bckgrd in-water nets Aug 02, 2017




DAY 1 EMAIL from Art

Hi Steph,

Sort of. There are no Ed sensors attached to this BSG so we don't have any of those tracks.

Also, there are no backgrounds (open internal shutter, closed external shutter) due to the problem with the external shutters.

Instead the sequence is
3 dark (open external, closed internal)
5 light (Es and Lu)
3 dark
terminate communication with camera, change shutters, reinitialize camera
3 dark
5 light (Lu only)
3 dark

Art

DAY 24 EMAIL from Art

Change to 22Z actually took effect yesterday (monday) (April 3). I also took out the 5 minute wait period after temperature had stabilized. Art



DAY 34 EMAILs about walkabout
  • ARGOS email alerts started going out on the morning of 13 April 2017. Looks like the buoy broke free on the evening of the 12 after 6 pm. By midnight the buoy was ~6.5 nm south of the mooring watch circle. 7:10 am HST: Art got a position off the bouy modem showing it was a for sure real walk about.
  • 7:15 AM HST: Mark asked Art to disable all MOS and BSG acquisitions when the system wakes up.  Lock the charge relay into the UPPER battery position to keep all power going to the upper battery and controller.
  • 7:27 HST: Plots of the buoy position before it left the watch circle shows the currents where "pretty much southerly".
  • 7:47 HST: Art said " OK I shut off MOS and BSG acquisitions and set it to charge upper only. We also just took an abbreviated BSG dataset (only the set with both Ed and Lu; which is on optilab now) to see if any notable changes (e.g. indications of arm damage)."
  • 8:24 HST: Sandy gets and email "My name is Kelly Luis and I participated in the NASA HyspIRI field campaign to Maui in February. I received the attached voice mail from Captain Buzzy at Die Hard Fishing. He mentions passing near the MOBY site and not being able to see it. I was hoping someone could follow up with him because he's concerned MOBY missing and it being a navigation concern for boaters. Please feel free to reach me at (808) 463-8283 if you have additional questions or concerns."
  • Ken voss then gets and email "We received a message just now from one of our fishing boat partners in Maui, who reported that they did not see MOBY anywhere in the water this morning. But they are not sure if the Buoy is missing or their navigation has a problem. So I wonder if you have an update from MOBY? "
  • The fishing vessel is called Die Hard Fishing and they said "They are looking at MOBY right now and the Coast Guard asked them to pick it up."
  • 8:44 HST: Ken says "Mark talked to the fishermen who was there��bigger problem as the mooring buoy is still attached to MOBY��neither is in correct position. Mark working on a solution, but right now the fisherman is willing to be paid to keep an eye on it��.
  • This means we need the KOK to recover the buoy and mooring, we can not just tow it back to the mooring since the mooring is loose too. Darryl is getting airline tickets to fly out on friday morning.
  • Checking the BS01 data collected at 7am the arms look good, so there is no problem with the arms as far as I can tell.
  • 10:17 AM HST: Mark says "Ross is saying we can Perhaps leave Friday night on the KOK. We are trying to roundup the divers in time for a Friday departure".
  • 11:13 AM HST: Mark says "Ross is now saying KOK departure Saturday morning."
  • 1:16 PM HST: Mark says "Small boat is in the area looking for the buoy. "
  • 2:41 PM HST: Mark says "Boat is still 5 nm away"
  • 3:00 PM HST: Mark says "Boat is at the buoy.  Let keep getting positions for a while and see how fast he moves North If at all.  If you are up for it."
  • 3:45 Pm HST: Mark says "Small Boat says they are moving at 1.5 knots with 8.5 nm to go".
  • Friday morning (April 14) the Mooring is anchored and the fisherman will hang around until Mark, the MOBY team and the KOK arrive.
  • 2:20 PM HST: Mark says "Starting recovery work"
  • 6:50 PM HST: Mark says "Buoys on board"
  • 6:34 AM HST: Mary says "We're back in Honolulu"

walkabout

full_map

DAY 35 EMAILs about deployment

May 10-11 Mark and the MOBY team took the KOK out to put the new mooring in and redeploy MOBY262.

Marks emails (times are HST):

  • May 10 - 5:11 PM: Recovering the mooring.
  • 6:01 PM: Old mooring is recovered.
  • May 11 - 8:21 AM: Starting mooring deployment
  • 9:27 AM: Rigging ground tackle. Almost done.
  • 11:31 AM: Mooring done. Setting up to deploy MOBY.
  • 12:49 PM: M262B deployed

Photos



Post deployment lost files email

Hi all,

I have been digging into the MOBY logs the last couple days.

It seems the latest batch of problems is related to certain cycles that are never powered on - this is as opposed to the problem we had back in March of crashing at some point during a given cycle.

If you look at a plot of daily median voltages for this deployment:
http://web2.physics.miami.edu/~agleason/moby/M262/Ballmedian.jpg

You can see early on in the deployment the upper battery was trending lower over time. It was 3/21 and 3/22 that were the main problems at that point. Then, on 3/23 We changed the charging pattern to prioritize the upper battery more (i.e. raised the threshold below which charge would always go to the UB, even if it were not the lowest). After that, until the breakaway mid-april, you can see voltages improve and we did not have any more problems. Until....

Shortly after the re-deplyment we saw a same sort of pattern. This was because the main m-sata drive had failed and it was booting off the backup drive, which I had not changed back in March. On 5/25 I made the same switch for the backup drive, changing the charging priority and you can see the same sort of improvement in the voltage pattern. All seemed good, and it was good for about 3 days. Then, starting on 5/29 we began skipping certain cycles. It is supposed to wake up at 3,4,17,18,20,22,23 Z every day. We have missed the following, starting on 5/29:

5/29 22, 23
5/30 3, 4
5/31 20, 22, 23
6/1  3, 4
6/2  3, 4

17 and 18 Z are the only ones that have worked reliably each day.

I can say that when it wakes up it seems to be working OK. It finishes the cycle properly and shuts down normally, I believe. The problem seems to be that it does not wake up sometimes. The only pattern I can see is that once it does not wake up, it continues to not wake up until the next 17 Z cycle.

Steph and I started looking in a bit more detail at the upper battery yesterday. Specifically, we started separating the voltages measured when it was being charged vs. when it was not being charged. She's going to add that to the main web pages but as a preview: http://web2.physics.miami.edu/~agleason/moby/current/UBweekraw.jpg

This looks pretty good to me (since the switch on 5/25).

I am at a bit of a loss now regarding what to check next.

Mark: can you think of any reasons why it would not wake up? Is the Campbell battery low? or something else like that? Can we get a hold of the Campbell log and see if it is trying to wake up at the missing hours? I am just throwing ideas out there - not really sure what to do next.

Art



Mark email about checking the campbell to see why we are losing files.

No luck yet on my end getting into the Campbell.  It seems the modem keeps dumping the port forward settings preventing login.

Mark
Arts reply to mark

Hi Mark,

That is interesting. I have not been able to get the gps settings to stick on the other modem. I change them and then they revert with no effect. Odd coincidence. I can't see how they would be related.

Looks like we got
6/4: 3 mos
6/3: 1 mos
6/2: 1 mos
6/1: 3 mos
5/31 0 mos

Art



Why we keep losing files the short discussion

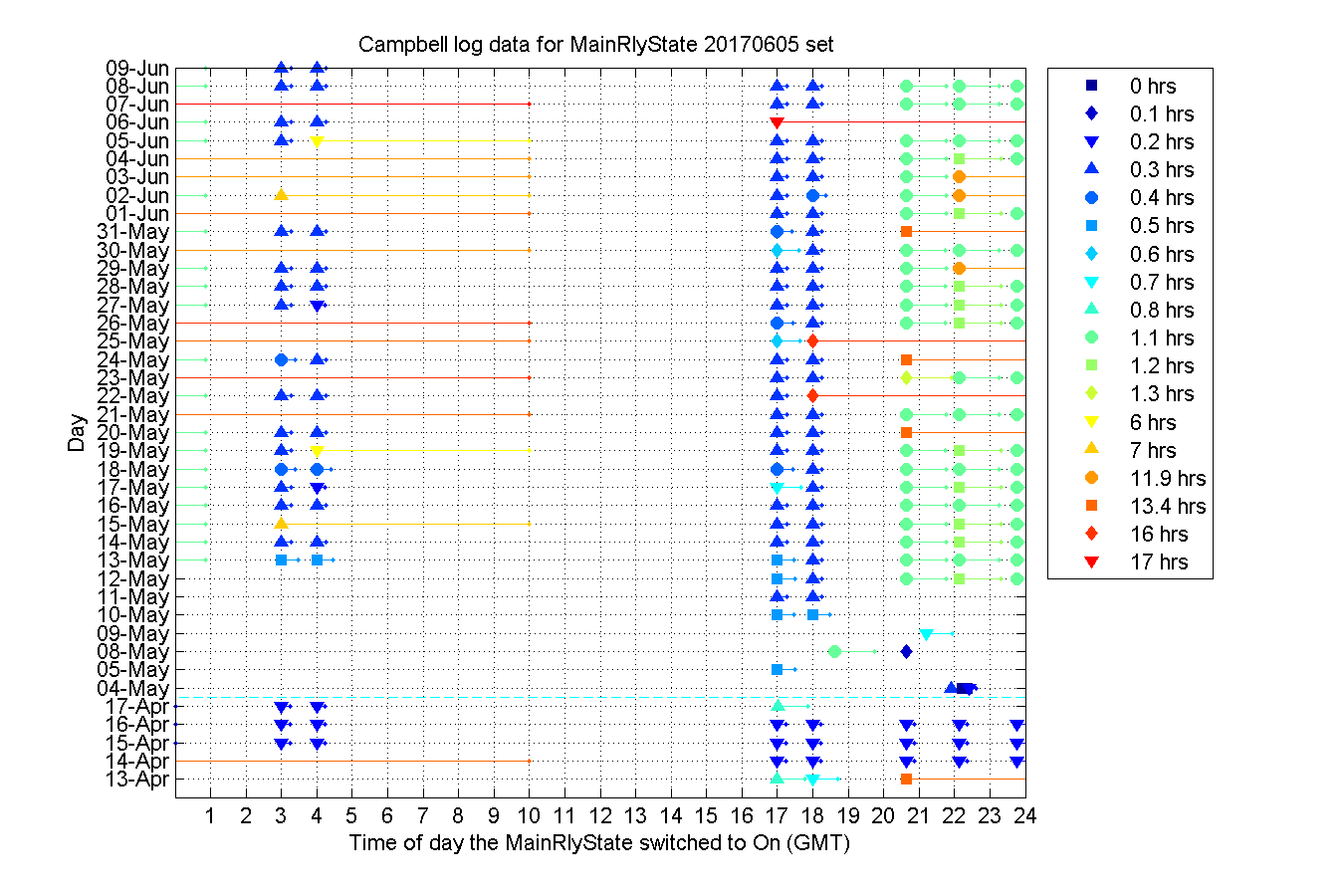

For some reason it seems that the falcon linux computer does not boot when the campbell cycles on the power. If the linux computer does not boot then it never sends the shutdown command to the campbell to turn off. So the campbell stays powered on until the fail safe at 10Z. When the linux computer fails to boot determines how many files we get each day. If it fails at the 17 or 18Z times then we get no files. If at the 22Z time then we get 20 hour files but no others. The figure below which plots when the cambell main Relay was turned on and off shows the problem. The redder symbols are the times the linux log failed to boot and so no files where collected. Plots of the campbell battery shows that it was not a low battery causing this.

campbell_fig



Mark had already written a new program that would turns power off 2 minutes before each start time. He also added power off at 06:00 and 19:00 GMT to stop any lon over runs. These two additional shutdowns could negatively impact Art if he were to work on the Linux for an extended time during the 04:00 or 17:00 communication windows. Sooo.....we should not be communicating with the Linux at 06:00 or 19:00 because we would get cut off.

Mark got into the Campbell and downloaded the program, the new program takes effect 9June at 06:00 GMT.

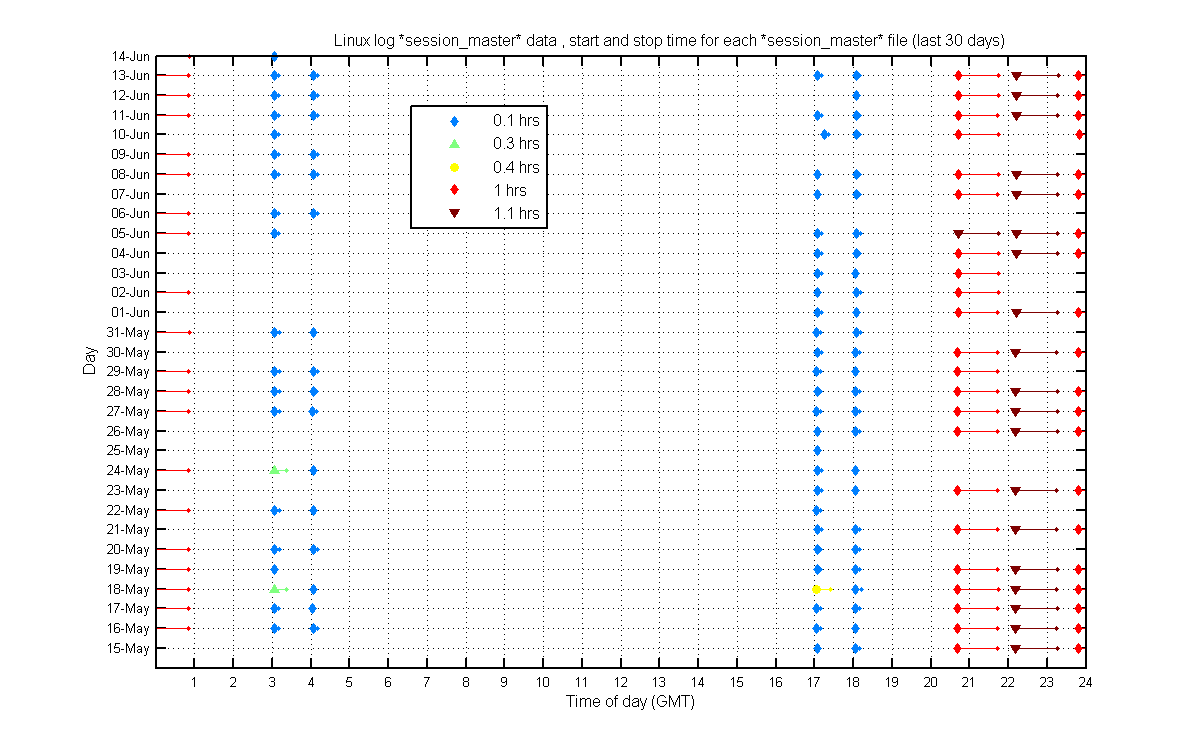

In addition to the campbell start and stop time graph above. I created a similar graph using the session_mater linux log data (see below). After Mark updated the program we started getting more data. If there is a symbol then that means the linux computer booted and created a session_master log file (kind of the opposite of the campbel graph)

linux_fig
